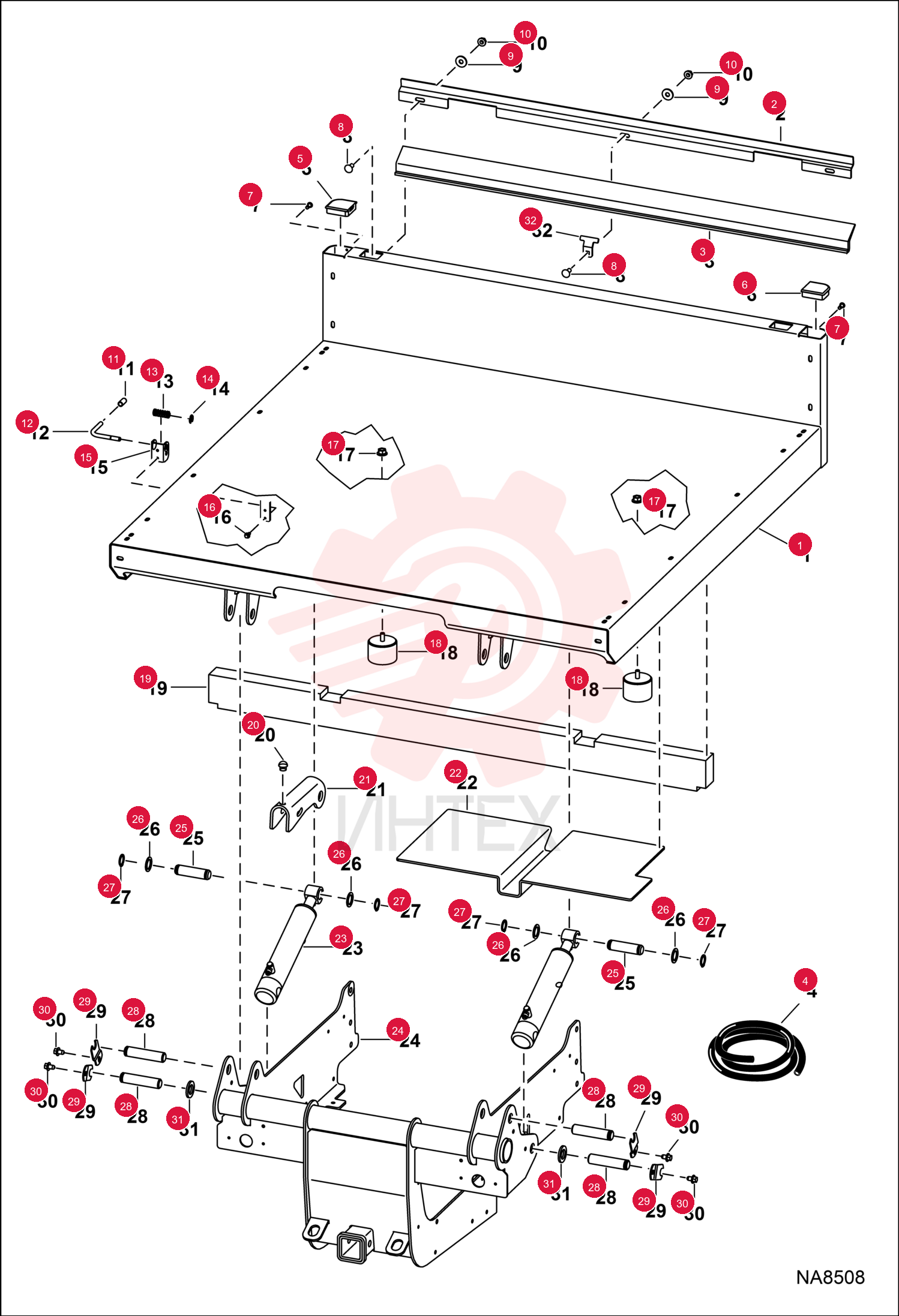

BED, FLAT
1 7234893
- 7234893 - BED
- FLAT
2 7116400
- 7116400 - BRACKET
3 6685029
- 6685029 - SEAL
- BULK
4 6813427
- 6813427 - CAP LH
5 6813425
- 6813425 - CAP RH
6 6706517
- 6706517 - SCREW 10
7 28CM820
- 28CM820 - BOLT CARRIAGE 8.8
8 17EM80
- 17EM80 - WASHER
9 51DM8
- 51DM8 - NUT HX THDLK PREAPPL
10 6681652
- 6681652 - CAP PLUG
11 7156194
- 7156194 - PIN
- LATCH
12 6610082
- 6610082 - SPRING
13 6681651
- 6681651 - RING
- RETAINER
14 7151652
- 7151652 - BRACKET
- LATCH
15 26GM6016
- 26GM6016 - BOLT
16 6589675
- 6589675 - SCREW
17 51DM10
- 51DM10 - NUT HX THDLK PREAPPL
18 6692924
- 6692924 - MOUNT ISOLATOR
19 7236785
- 7236785 - INSULATION
20 6597572
- 6597572 - BUMPER
21 7110907
- 7110907 - STOP
22 7201175
- 7201175 - SHIELD
- HEAT
23 7238456
- 7238456 - FRAME
- MAIN ASSY
24 7311549
- 7311549 - PIN PIVOT
25 18EM2448
- 18EM2448 - WASHER
26 22J16
- 22J16 - SNAP RING
27 7223530
- 7223530 - PIN
28 7252630
- 7252630 - PIN
- RETAINING
29 26GM10016
- 26GM10016 - SCREW
30 18EM2448
- 18EM2448 - WASHER
31 7155783
- 7155783 - BRACKET
- ANGLE
