630.0
/

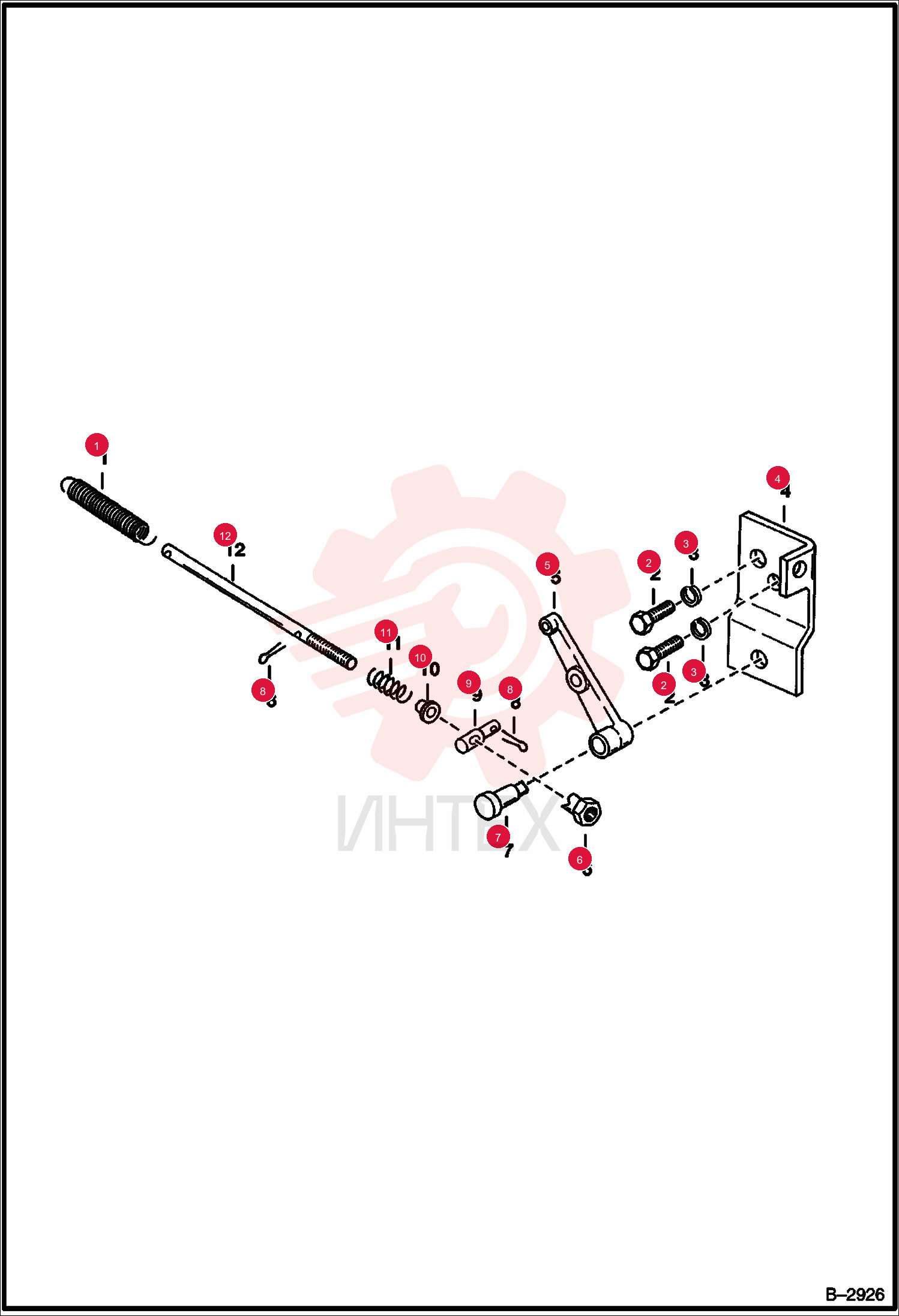

SPRING 6516610

SPRING 6516610

SPRING 6516610

1 6516610

  • 6516610 - SPRING

2 6513450

  • 6513450 - SPRING

3 17C410

  • 17C410 - BOLT 10

4 4E4

  • 4E4 - WASHER

5 6513171

  • 6513171 - BRACKET

6 6513170

  • 6513170 - LEVER

7 6516631

  • 6516631 - NUT

8 6513168

  • 6513168 - PIN

9 1F208

  • 1F208 - PIN

10 6513169

  • 6513169 - PIN

11 6516633

  • 6516633 - RETAINER

12 6516634

  • 6516634 - SPRING

13 6513167

  • 6513167 - SCREW ADJ

14 6513673

  • 6513673 - ROD
