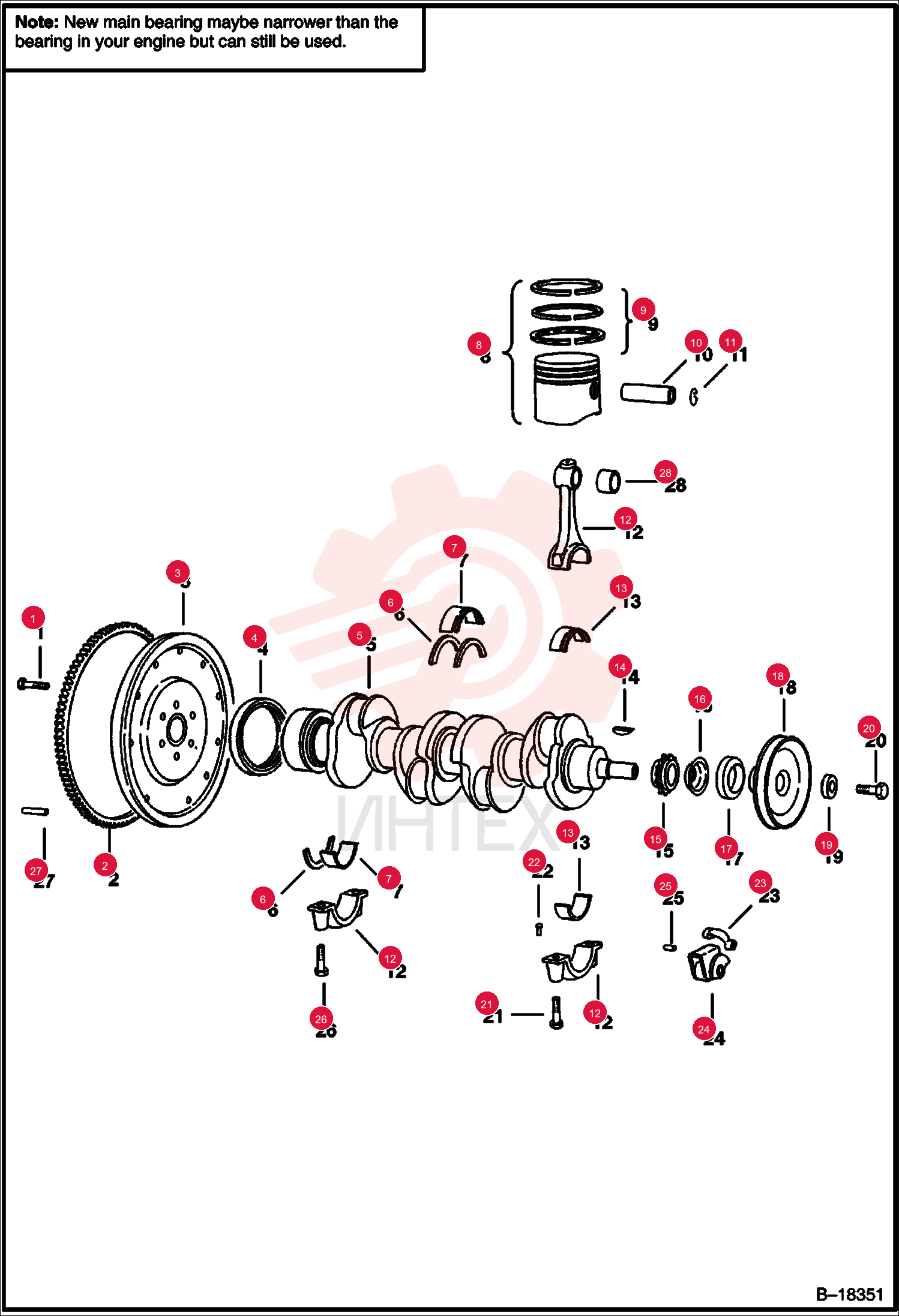

SCREW 94G620
1 94G620
- 94G620 - SCREW
2 6562279
- 6562279 - RING GEAR
3 7030192
- 7030192 - SEAL
- rear - Was 6512490
4 6512441
- 6512441 - CRANKSHAFT
5 6512609
- 6512609 - 2 WASHERS
- thrust (.0025)
6 6512610
- 6512610 - 2 WASHERS
- thrust (.005)
7 6674881
- 6674881 - BEARING SET
- Main (Std.) - SEE NOTE - One Complete Set - Was 6512445
8 6658848
- 6658848 - PST+R ASY
- W/Pins (+.020)
9 6665229
- 6665229 - PISTON ASSEMBLY
- W/Pins (+.030) - Was 6512405
10 6656408
- 6656408 - PSTN+RNGS 4
- W/Rings
- W/Pin
11 6656407
- 6656407 - SET
- RING
- (+.040)
12 6512411
- 6512411 - SET
- RING
- (+.030)
13 6658849
- 6658849 - RG SET(4)
- (+.020)
14 6512409
- 6512409 - 4 RING SE
- Std. - Complete Set
15 6512406
- 6512406 - PIN
- piston - (Std.)
16 6512408
- 6512408 - 8 RETAINR
17 6666615
- 6666615 - BEARING
- SET
- rod (STD.) - Complete set - Was 6512680
18 6666350
- 6666350 - BEARING
- SET
- rod - (.010) - Complete set - Was 6512678
19 6674885
- 6674885 - BEARING SET
- rod - (.020) - Complete set - Was 6669571
20 6666614
- 6666614 - BEARING
- SET
- rod - (.030) - Complete Set - Was 6512679
21 6512641
- 6512641 - 1 KEY
22 6512442
- 6512442 - SPROCKET
23 6648209
- 6648209 - SEAL
- Was 6512489
24 6558802
- 6558802 - PULLEY
25 18C724
- 18C724 - BOLT
26 1JM4010
- 1JM4010 - DOWEL
27 6512439
- 6512439 - ARM
28 6512438
- 6512438 - TENSIONER
- timing chain
29 6512440
- 6512440 - PIN
30 17C746
- 17C746 - BOLT
- Main
31 214165
- 214165 - DOWEL
32 6598356
- 6598356 - BUSHING
- One Bushing
