Bobcat
/
643.0
/

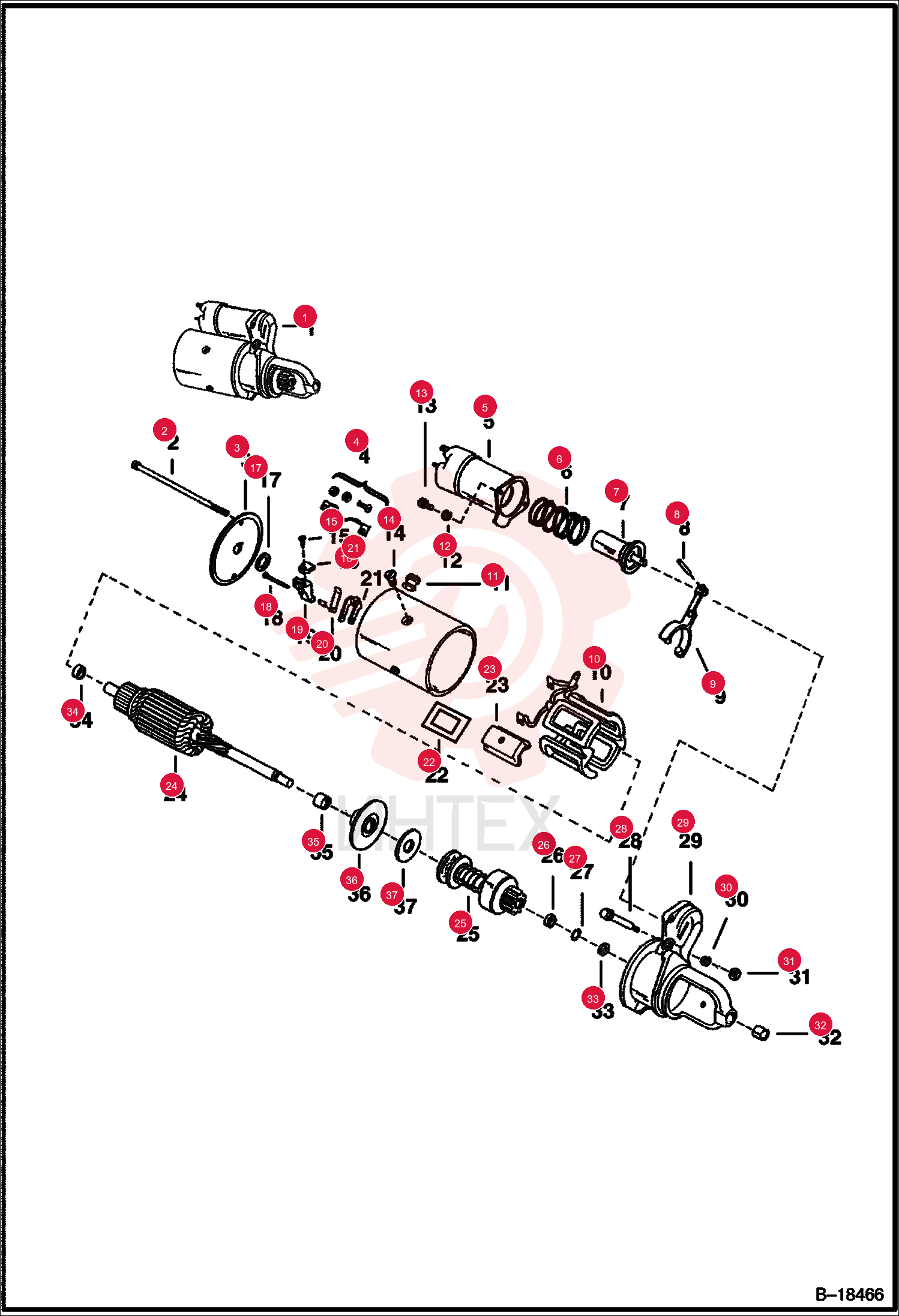

SUPPORT 877650

SUPPORT 877650

SUPPORT 877650

1 877650

  • 877650 - SUPPORT
  • brush support pkg.

2 884581

  • 884581 - SWITCH

3 888968

  • 888968 - SPRING

4 896126

  • 896126 - LEVER

5 859377

  • 859377 - SCREW

6 880603

  • 880603 - HOLDER
  • brush

7 6511629

  • 6511629 - ARMATURE
  • Was 991100B

8 942142

  • 942142 - SNAP RING

9 884576

  • 884576 - BOLT.

10 6630419

  • 6630419 - HOUSING
  • drive - W/Ref. 32 - Was 991099B

11 860669

  • 860669 - BUSHING

12 850363

  • 850363 - COLLAR
  • thrust

13 874935

  • 874935 - BUSHING

14 6630411

  • 6630411 - PLATE
  • center bearing - Was 871524B
