Bobcat
/
653.0
/

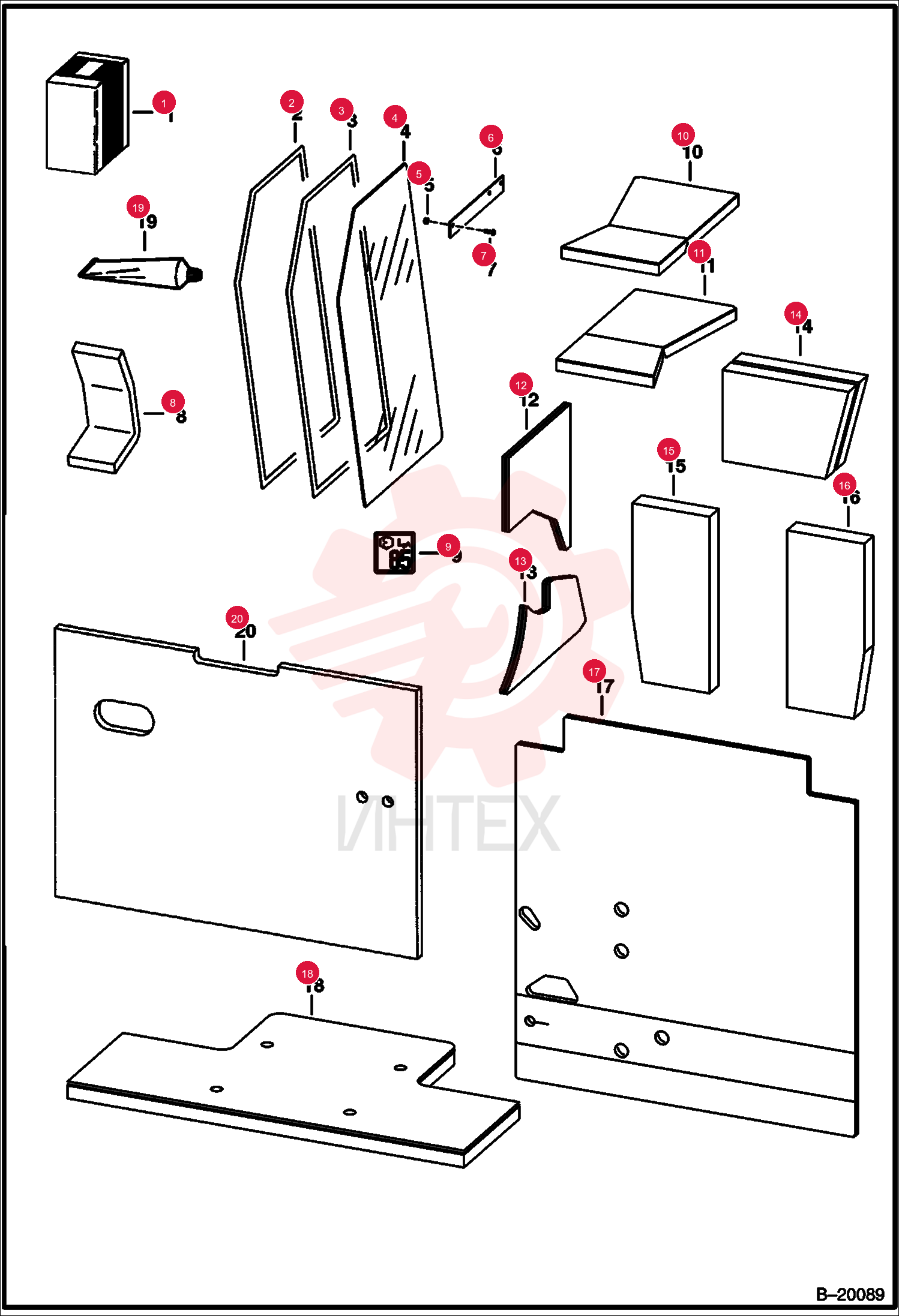

HOOK SCOTCHMATE 6631549

HOOK SCOTCHMATE 6631549

HOOK SCOTCHMATE 6631549

1 6631549

  • 6631549 - HOOK SCOTCHMATE
  • scotchmate

2 6631548

  • 6631548 - LOOP SCOTCHMATE
  • scotchmate

3 6702731

  • 6702731 - WINDOW CAB
  • cab

4 83D4

  • 83D4 - LKNUT HEX FLG GR8

5 6700875

  • 6700875 - RETAINER
  • window

6 35C410

  • 35C410 - SCREW HEX HD W/F GR5

7 6703331

  • 6703331 - FOAM
  • air inlet

8 6579385

  • 6579385 - DECAL
  • WARNING
  • sound level warning

9 6732723

  • 6732723 - INSULATION
  • crossmember - R.H. - Was 6704722

10 6732722

  • 6732722 - INSULATION
  • crossmember - L.H. - Was 6704721

11 6719332

  • 6719332 - INSULATION
  • BLWR HSG
  • Blower Housing - Was 6704725

12 6704769

  • 6704769 - INSULATION
  • blower housing

13 6705848

  • 6705848 - INSULATION
  • transmission

14 6705849

  • 6705849 - INSULATION
  • brace - L.H.

15 6705850

  • 6705850 - INSULATION
  • brace - R.H.

16 6715096

  • 6715096 - INSULATION
  • cab back - Was 6706903

17 6715095

  • 6715095 - INSULATION
  • seat pan - Was 6706983

18 6633583

  • 6633583 - SEALANT
  • POLYURETHANE 300 ML

19 6704752

  • 6704752 - INSULATION
  • rear door
