732.0
/

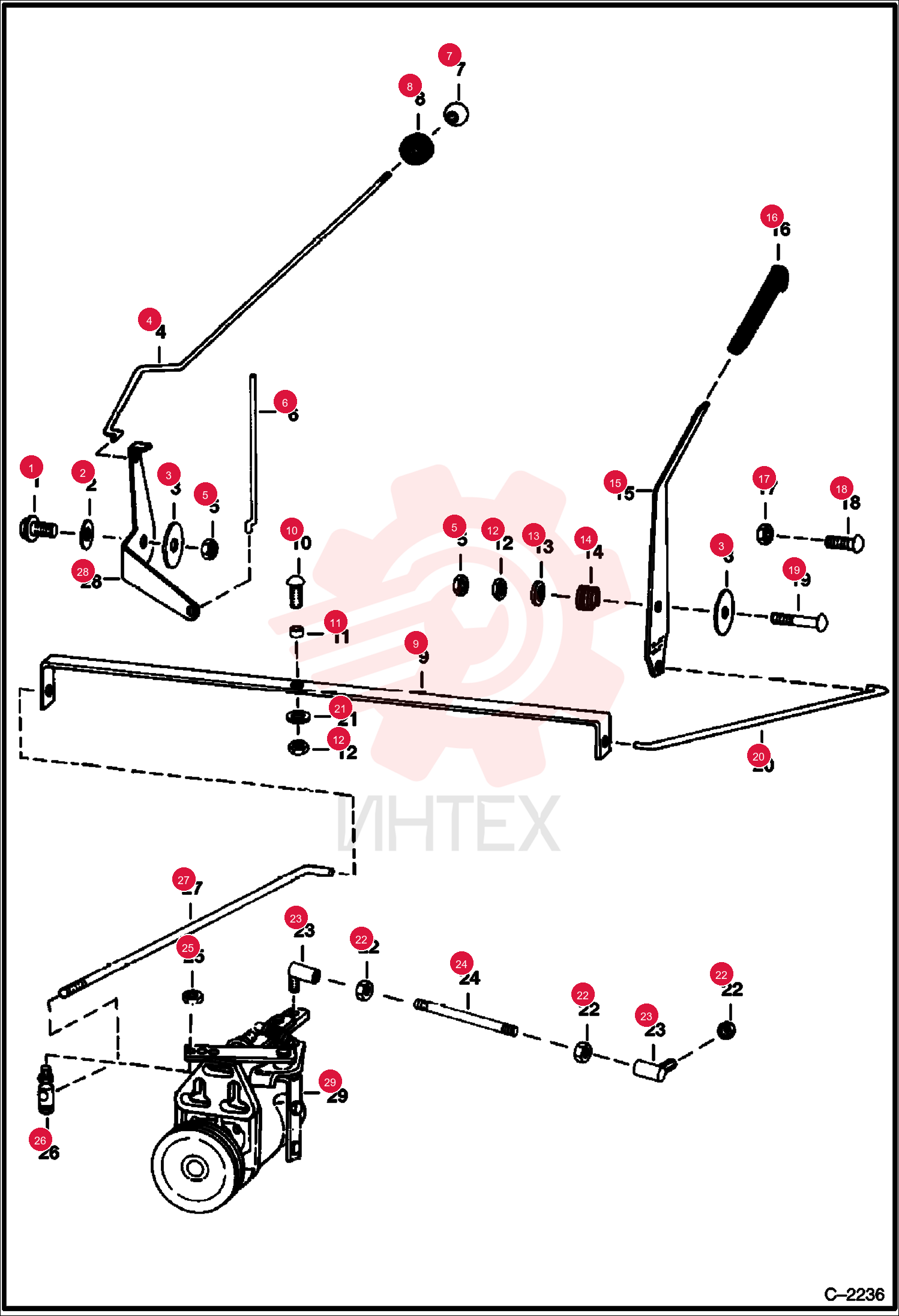

SCREW 6559092

SCREW 6559092

SCREW 6559092

1 6559092

  • 6559092 - SCREW

2 755589

  • 755589 - WASHER

3 6546122

  • 6546122 - GASKET

4 6562127

  • 6562127 - WASHER

5 6557193

  • 6557193 - ROD

6 81D6

  • 81D6 - NUT

7 6557192

  • 6557192 - ROD

8 6519552

  • 6519552 - KNOB

9 6519484

  • 6519484 - GROMMET

10 6557196

  • 6557196 - LEVER

11 6557432

  • 6557432 - BOLT
  • carriage - Was 3327196B

12 6544654

  • 6544654 - BUSHING

13 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

14 27E6

  • 27E6 - WASHER HARDEN PLAIN

15 6505623

  • 6505623 - WASHER

16 6562126

  • 6562126 - SPRING

17 6503387

  • 6503387 - SPRING

18 6563940

  • 6563940 - LEVER

19 6553557

  • 6553557 - GRIP

20 6512893

  • 6512893 - NUT

21 37C616

  • 37C616 - BOLT
  • Was 6514537

22 7C632

  • 7C632 - BOLT
  • carriage

23 7C640

  • 7C640 - BOLT

24 6562490

  • 6562490 - ROD

25 872229

  • 872229 - WASHER

26 14D10

  • 14D10 - NUT HEX MACH SCREW

27 6515194

  • 6515194 - JOINT
  • ball

28 6554836

  • 6554836 - ROD

29 61D4

  • 61D4 - NUT 5

30 6557291

  • 6557291 - SWIVEL
  • BALL JOINT

31 6562995

  • 6562995 - ROD

32 6557195

  • 6557195 - LEVER
