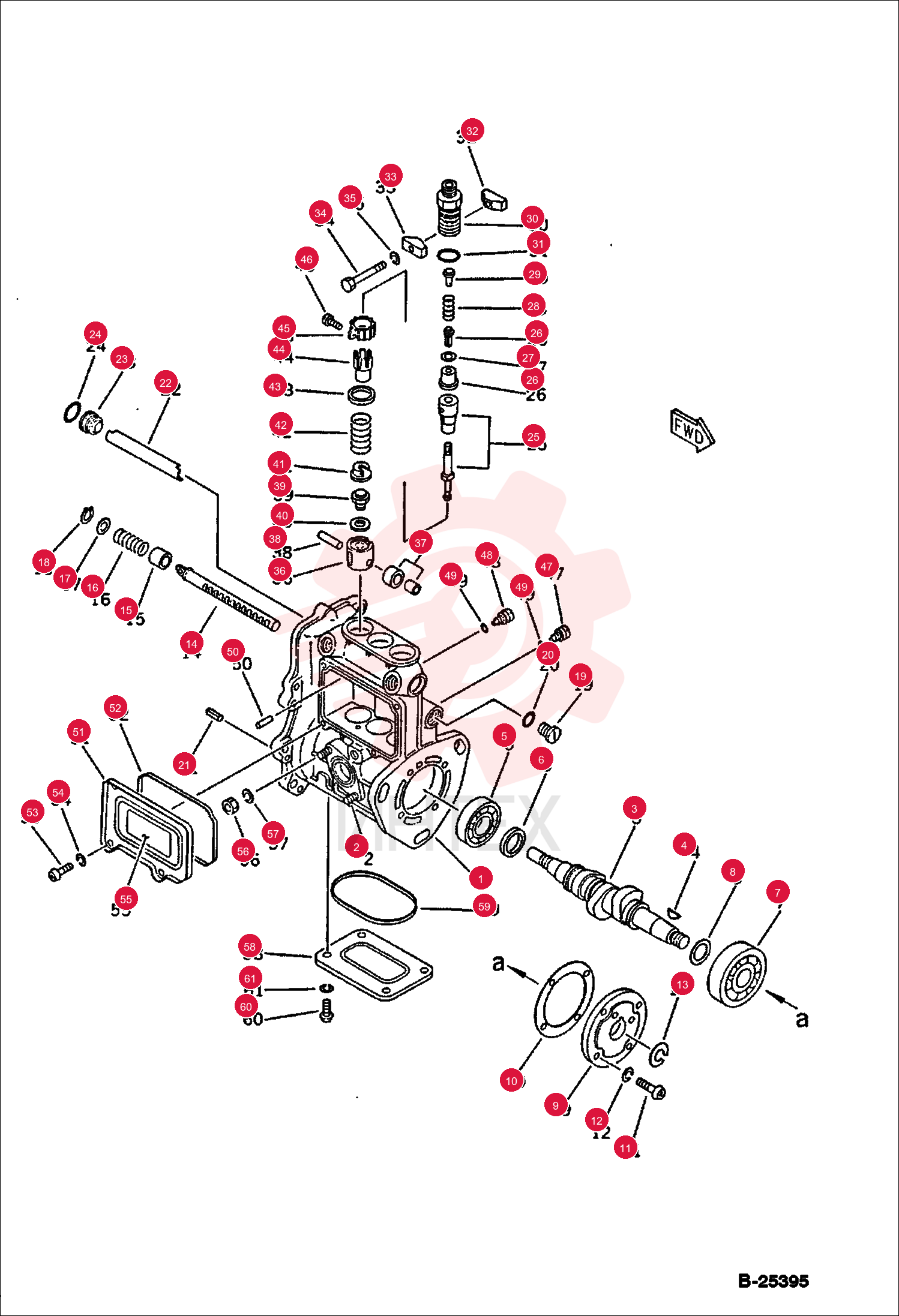

PUMP, INJ 6636937 (1)

PUMP, INJ 6636937 (1)

PUMP, INJ 6636937 (1)

1 6636937

  • 6636937 - PUMP
  • INJ

2 6636875

  • 6636875 - STUD

3 6636514

  • 6636514 - CAMSHAFT

4 6636579

  • 6636579 - KEY

5 6636680

  • 6636680 - WASHER
  • T

6 6636708

  • 6636708 - WASHER

7 6636818

  • 6636818 - BEARING

8 6636709

  • 6636709 - WASHER

9 6636681

  • 6636681 - CAGE

10 6636695

  • 6636695 - PACKING

11 6636891

  • 6636891 - SCREW

12 6636789

  • 6636789 - WASHER

13 6636790

  • 6636790 - WASHER

14 6636696

  • 6636696 - RACK

15 6636697

  • 6636697 - BUSHING

16 6636703

  • 6636703 - SPRING

17 6636698

  • 6636698 - WASHER

18 6636699

  • 6636699 - RING
  • SNA

19 6636701

  • 6636701 - PLUG

20 6636702

  • 6636702 - O-RING

21 6636795

  • 6636795 - PIN

22 6636693

  • 6636693 - SHIELD

23 6636694

  • 6636694 - BOLT

24 6636286

  • 6636286 - WASHER

25 6636515

  • 6636515 - PLUNGER

26 6636631

  • 6636631 - VALVE

27 6636612

  • 6636612 - PACKING

28 6636688

  • 6636688 - SPRING

29 6636690

  • 6636690 - STOPPER

30 6636689

  • 6636689 - SEAT

31 6636613

  • 6636613 - O-RING

32 6636691

  • 6636691 - SHIELD

33 6636692

  • 6636692 - SHIELD

34 6636868

  • 6636868 - BOLT

35 6636779

  • 6636779 - WASHER
  • S

36 6636684

  • 6636684 - TAPPET

37 6636914

  • 6636914 - GUIDE ROL

38 6636768

  • 6636768 - PIN

39 6636685

  • 6636685 - BOLT

40 6636704

  • 6636704 - SHIM

41 6636683

  • 6636683 - SEAT

42 6636626

  • 6636626 - SPRING

43 6636769

  • 6636769 - RETRAINER

44 6636700

  • 6636700 - GEAR

45 6636771

  • 6636771 - RING

46 6636578

  • 6636578 - SCREW

47 6636686

  • 6636686 - RING
  • SNA

48 6636707

  • 6636707 - SHIELD

49 6636687

  • 6636687 - O-RING

50 6636682

  • 6636682 - PIN

51 6636705

  • 6636705 - COVER

52 6636706

  • 6636706 - PACKING

53 6636890

  • 6636890 - SCREW

54 6636779

  • 6636779 - WASHER
  • S

55 6636730

  • 6636730 - SHIELD

56 6636896

  • 6636896 - NUT

57 6636780

  • 6636780 - WASHER

58 6636739

  • 6636739 - COVER

59 6636740

  • 6636740 - GASKET

60 6636890

  • 6636890 - SCREW

61 6636779

  • 6636779 - WASHER
  • S
