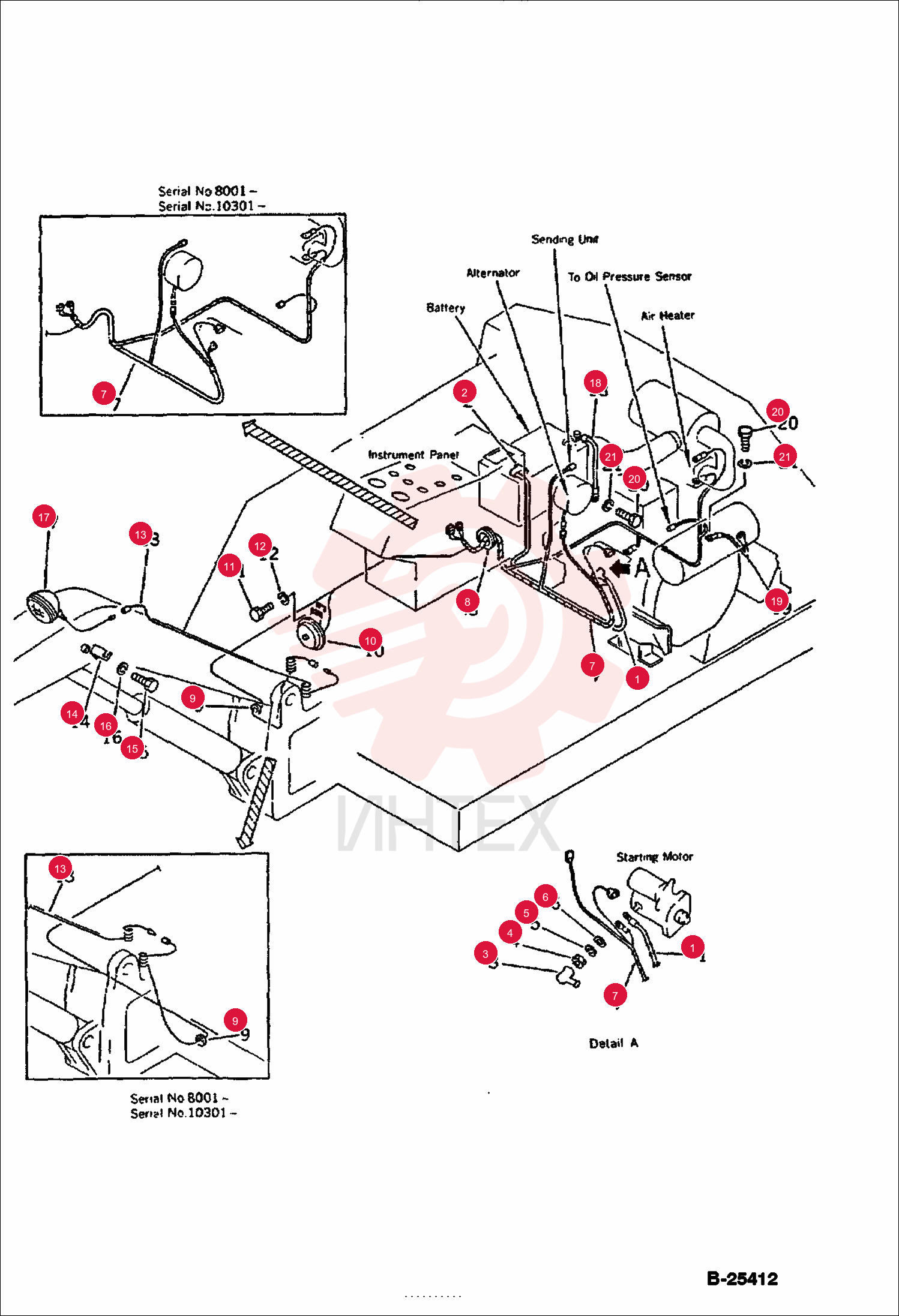

WIRE ASSEMBLY 6642433

WIRE ASSEMBLY 6642433

WIRE ASSEMBLY 6642433

1 6642433

  • 6642433 - WIRE ASSEMBLY

2 6638233

  • 6638233 - WIRE ASSEMBLY

3 6637711

  • 6637711 - CAP

4 6640840

  • 6640840 - CAP

5 6637107

  • 6637107 - NUT

6 6637134

  • 6637134 - WASHER

7 6640821

  • 6640821 - WASHER

8 6642429

  • 6642429 - WIRE ASSEMBLY

9 6642430

  • 6642430 - WIRE

10 6642431

  • 6642431 - WIRE ASSEMBLY

11 6642432

  • 6642432 - WIRE ASSEMBLY

12 6637705

  • 6637705 - GROMMET

13 6637700

  • 6637700 - GROMMET

14 6637726

  • 6637726 - HORN

15 6636957

  • 6636957 - BOLT

16 6637134

  • 6637134 - WASHER

17 6638230

  • 6638230 - WIRE

18 6638229

  • 6638229 - BRACKET

19 6636979

  • 6636979 - BOLT

20 6637136

  • 6637136 - WASHER

21 6637723

  • 6637723 - LAMP

22 6637722

  • 6637722 - BULB

23 6640842

  • 6640842 - LENS

24 6642434

  • 6642434 - WIRE ASSEMBLY

25 6638234

  • 6638234 - WIRE ASSEMBLY

26 6638234

  • 6638234 - WIRE ASSEMBLY

27 6636966

  • 6636966 - BOLT

28 6636966

  • 6636966 - BOLT

29 6637135

  • 6637135 - WASHER

30 6637135

  • 6637135 - WASHER
