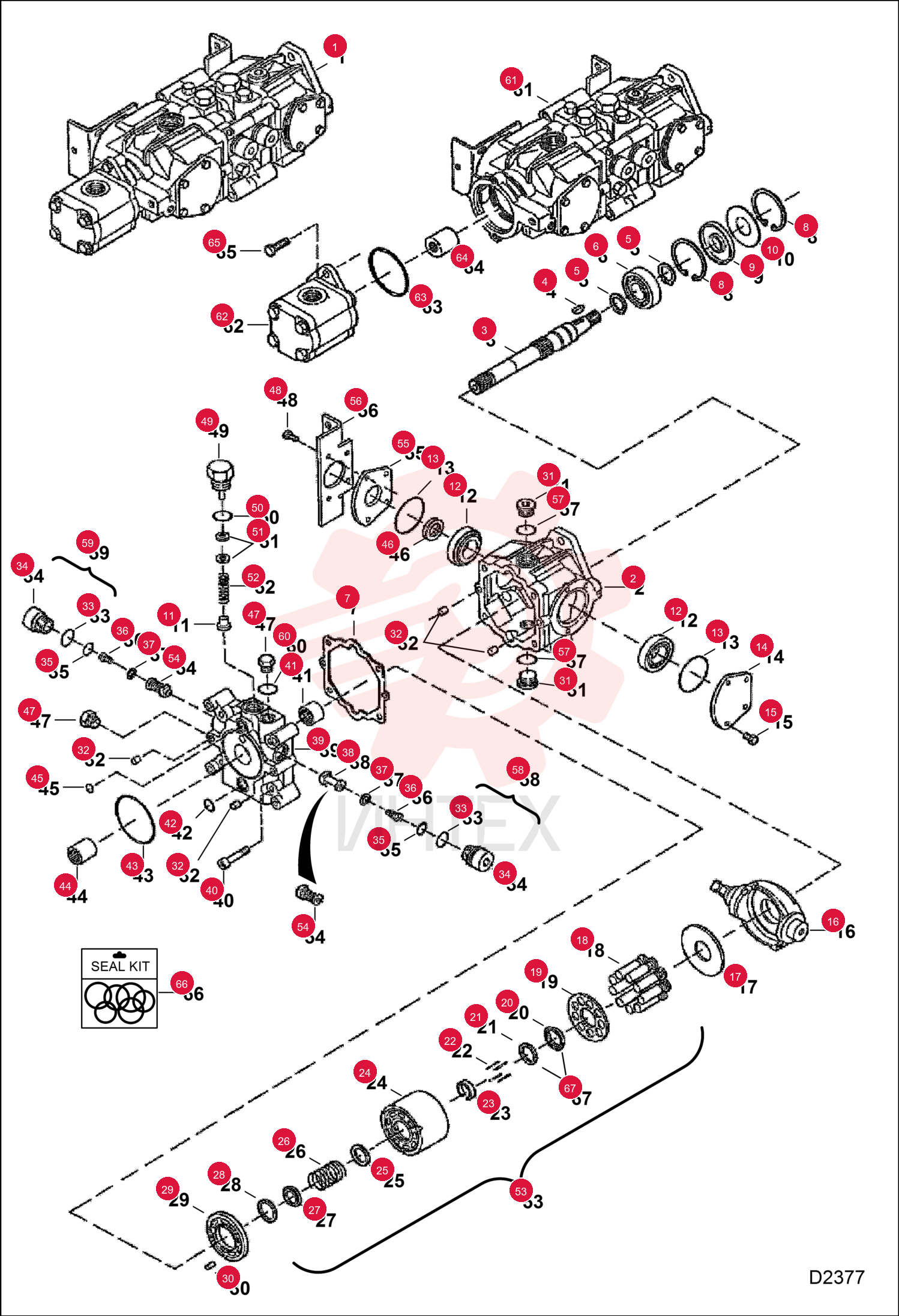

PUMP, HYD 7001070REM
1 7001070REM
- 7001070REM - PUMP
- HYD
- gray - must use 6576196 bracket & 6706096 bracket from original pump - Was 6671019REM Was 6669464REM
2 7001067REM
- 7001067REM - PUMP
- HYD
- Was 6672051REM - does not include gear pump
3 6669402
- 6669402 - HOUSING
4 6682260
- 6682260 - FRONT SHAFT
- W/square key
5 6J807
- 6J807 - KEY
- WOODRUFF
6 6682261
- 6682261 - KEY
- square
7 658128
- 658128 - RING
- SNAP
8 654299
- 654299 - BEARING
9 6650634
- 6650634 - GASKET
10 669863
- 669863 - RING
- SNAP
11 7296603
- 7296603 - SEAL
- SHAFT
- Was 6687191
12 7024884
- 7024884 - WASHER
- Was 6669409
13 6650652
- 6650652 - CH.RELIEF
- charge
14 6669411
- 6669411 - BEARING
- W/cup
15 6660814
- 6660814 - RING
- QUAD
16 6657068
- 6657068 - COVER
17 6650668
- 6650668 - BOLT
18 6669404
- 6669404 - SWASHPLATE
- Models 4355049
- 4355066
- 4355047 & 4355065
19 7284937
- 7284937 - SWASHPLATE
- W/threaded shaft hole - Was 6685344
20 6650627
- 6650627 - PLATE THR
21 6650630
- 6650630 - RETAINER
22 6669401
- 6669401 - VALVE
- PLATE
- Models 4355049
- 4355066
- 4355047 & 4355065
23 6650636
- 6650636 - PIN
24 47K8
- 47K8 - PLUG
- W/Ref. 57
25 6518460
- 6518460 - PIN
26 6657028
- 6657028 - O-RING
27 79K8
- 79K8 - O RING 10
28 7023162
- 7023162 - CAP
- END
- Was 6669406
29 6650637
- 6650637 - BOLT
30 6650635
- 6650635 - BEARING
31 6650647
- 6650647 - O-RING
32 6645081
- 6645081 - O-RING
33 6650675
- 6650675 - COUPLER
34 6650646
- 6650646 - O-RING
35 6678226
- 6678226 - SEAL
- OIL
- Was 6673881
36 6645086
- 6645086 - PLUG
- W/Ref. 60
37 4CM820
- 4CM820 - SCREW HEX HD 8.8
- Models 4355049
- 4355066
- 4355047 & 4355065 - Was 1CM820
38 6671518
- 6671518 - BOLT
- Model 4445050
39 6650648
- 6650648 - PLUG
- charge relief
40 79K10
- 79K10 - O RING 10
41 6669410
- 6669410 - KIT
- SHIM
- charge relief
42 6658301
- 6658301 - SPRING
43 6661758
- 6661758 - ROT GROUP
- W/Ref. 18-28 - Models 4355049
- 4355066
- 4355047 & 4355065
44 6671512
- 6671512 - GROUP
- ROTARY
- Model 4445050
45 6657067
- 6657067 - COVER
- W/Ref. 46
46 6706096
- 6706096 - MOUNT
47 79K12
- 79K12 - O RING 10
48 6670684
- 6670684 - VALVE
- CHECK
49 6670685
- 6670685 - VALVE
- RELIEF
- Models 4355049
- 4355066
- 4355047
- 4355065 - Was 6689601
50 6671510
- 6671510 - VALVE
- RELIEF
- Model 4445050
51 6661481
- 6661481 - O-RING
52 7001070
- 7001070 - PUMP
- HYD TANDEM W/O GEAR PUMP
53 6669412
- 6669412 - 0'RING
54 6650677
- 6650677 - COUPLER
55 6666339
- 6666339 - SCREW
56 6671516
- 6671516 - KIT
- SEAL
- - Ref. 2
- 3
- 12 & 41 - Also includes Ref. 7
- 9
- 13
- 34
- 35
- 42
- 43
- 45 & 46 on this page - pump Model 4445050 - Was 7296604
57 7339370
- 7339370 - KIT GUIDE
- W/Ref. 21 & (4) 22
