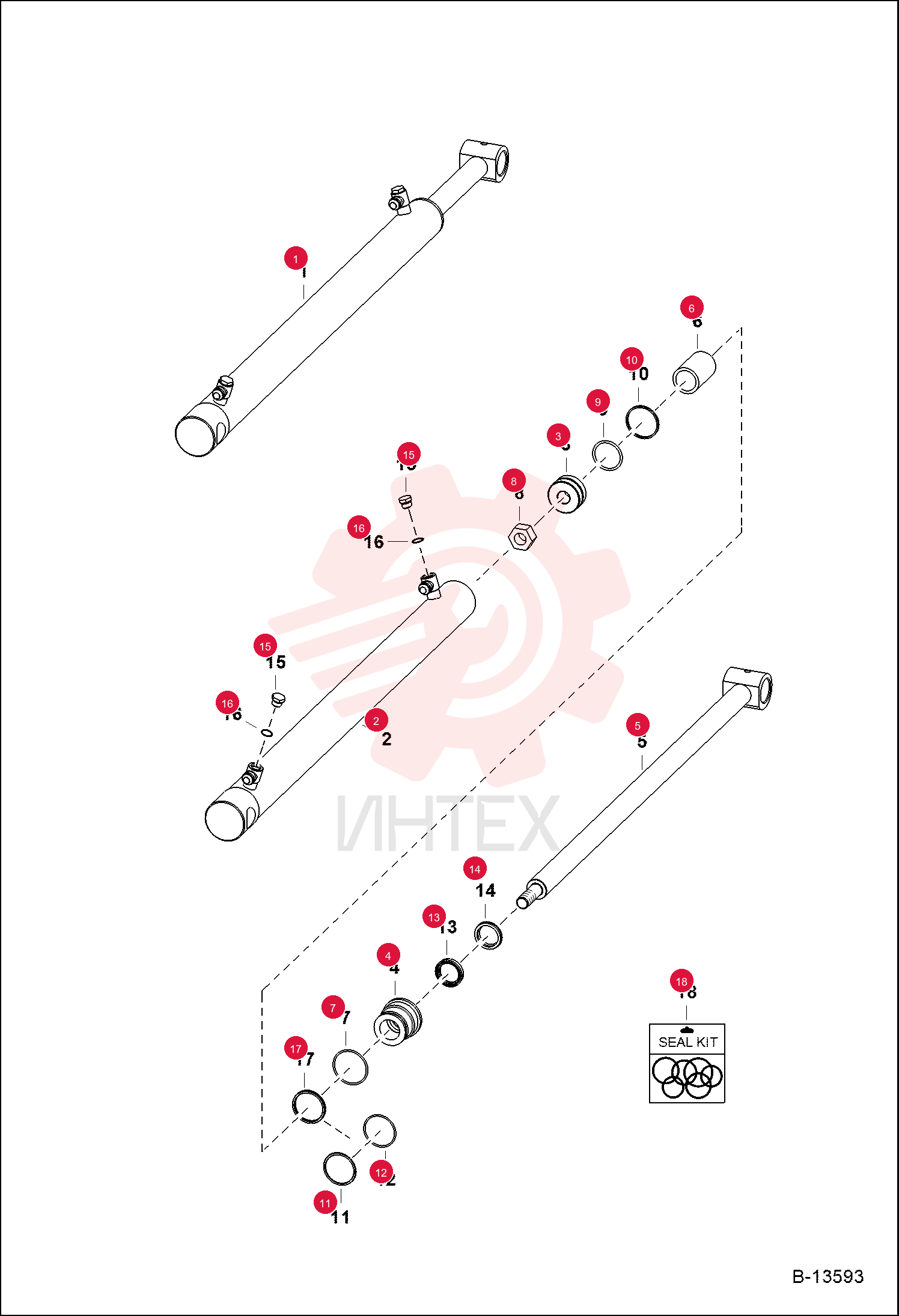

PISTON 6678931 (1)
1 6678931
- 6678931 - PISTON
- W/Ref. 9 & 10 - Also has Non-Replaceable wear sleeves - Was 6677197
2 6806124
- 6806124 - HEAD
3 6810430
- 6810430 - SHAFT
- ROD CYL LIFT
- 32.44" (824 mm) long - Was 6805086
4 6539645
- 6539645 - SPACER
- 2.02" (51
- 3 mm) long
5 82K230
- 82K230 - O-RING
- Was 58K000230B
6 6810539
- 6810539 - NUT
- Was 6804592
7 1522534
- 1522534 - SEAL
8 54K30202
- 54K30202 - O-RING
- Was 25K30202
9 54K40208
- 54K40208 - O-RING
- Was 25K40208
10 73K228
- 73K228 - RING
- BACK-UP
11 6667326
- 6667326 - SEAL
- rod
12 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
13 90KV2
- 90KV2 - PLUG
- W/Ref. 16 (95K-3 O-ring) Allen Socket Head - tapered boss face
14 6812170
- 6812170 - PLUG
- W/Ref. 16 (75K-3 O-ring) hex head - flat boss face
15 95K3
- 95K3 - O'RING
- tapered boss face
16 75K3
- 75K3 - O-RING
- flat boss face
17 7135559
- 7135559 - SEAL KIT
- Ref. 7-14 - Was 6816537
