Bobcat
/
7753.0
/

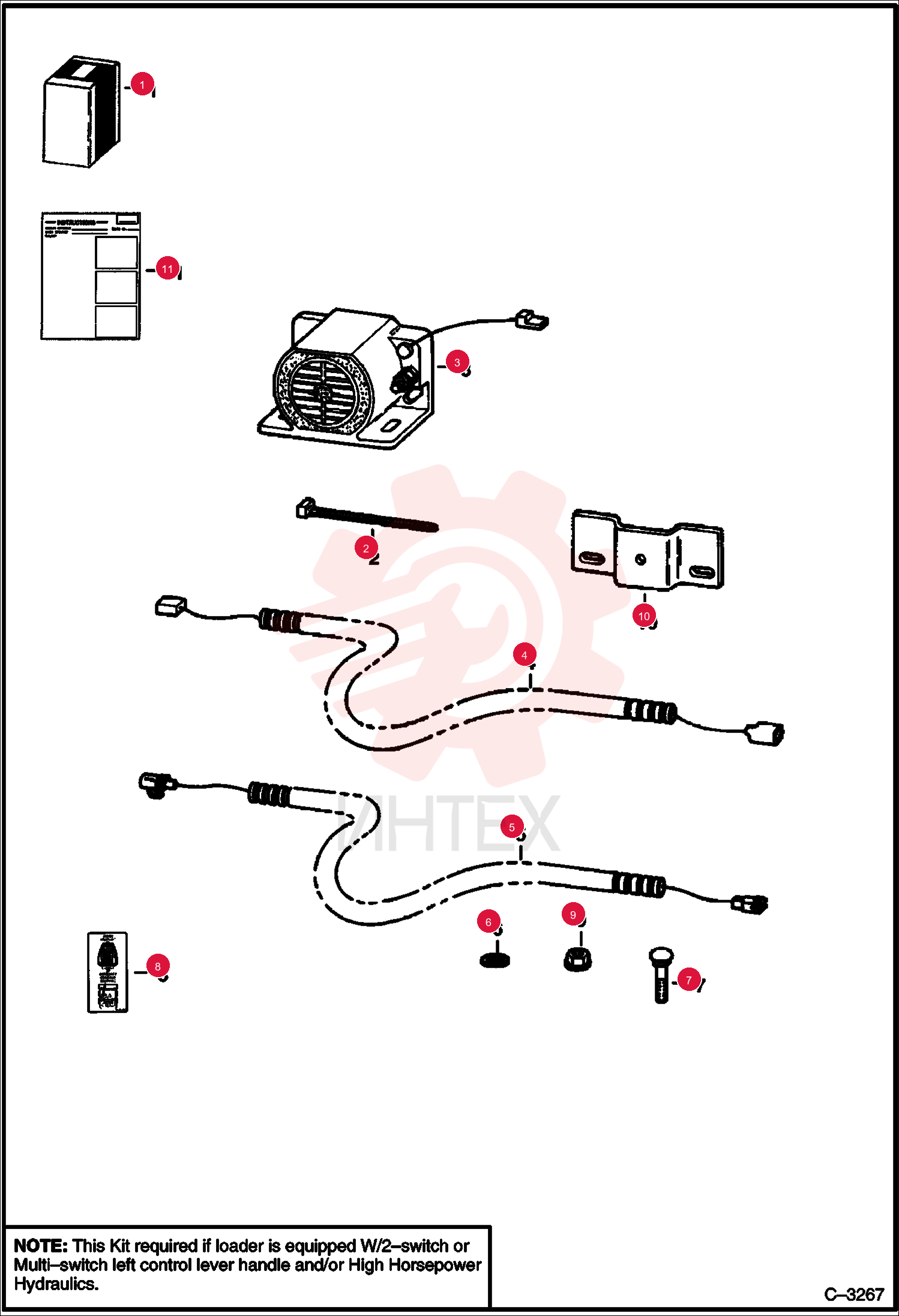

HORN KIT 6703162

HORN KIT 6703162

HORN KIT 6703162

1 6703162

  • 6703162 - HORN KIT
  • Ref. 2-11 - IF LOADER IS NOT EQUIPPED W/REAR AUXILIARIES
  • IT IS NECESSARY TO ORDER ELECTRIC CONTROL KIT WHEN ORDERING HORN KIT IF LOADER IS EQUIPPED W/REAR AUXILIARIES
  • IT IS NOT NECESSARY TO ORDER ELECTRIC CONTROL KIT WHEN ORDERING HORN KIT

2 6610510

  • 6610510 - STRAP
  • TIE 10
  • Was 1715312B

3 6660294

  • 6660294 - ALARM HORN

4 6701961

  • 6701961 - HARNESS
  • 113"(2870
  • 2 mm) long - Use W/Cobra style handles

5 6704408

  • 6704408 - HARNESS
  • 54"(1371
  • 6 mm) long

6 25E13

  • 25E13 - WASHER FLAT PLAIN
  • Was 6E000004B

7 84G2516

  • 84G2516 - SCREW THD ROLLING TT
  • Was 7C000412B

8 6703727

  • 6703727 - DECAL
  • horn/aux

9 59D4

  • 59D4 - NUT LOCK HEX PT
  • Was 83D000004B

10 6704641

  • 6704641 - MOUNT HORN
  • Was 6703391

11 6720761

  • 6720761 - INSTRUCTIONS
