864.0
/

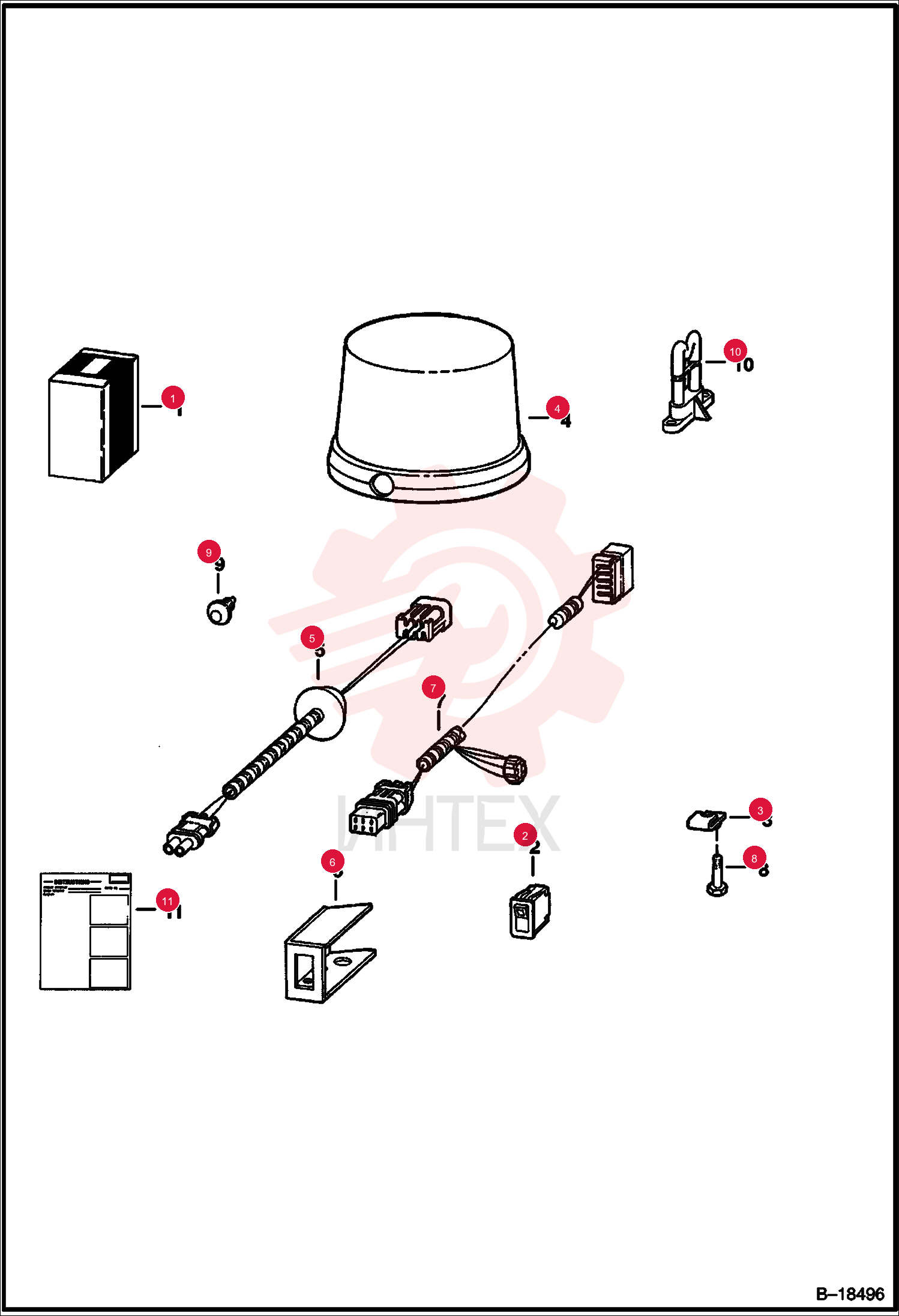

STROBEKIT 6712696

STROBEKIT 6712696

STROBEKIT 6712696

1 6712696

  • 6712696 - STROBEKIT
  • Strobe light - Ref. 2-11

2 6668816

  • 6668816 - SWITCH

3 7160765

  • 7160765 - NUT
  • Was 6660988

4 6708318

  • 6708318 - HARNESS
  • beacon

5 6711708

  • 6711708 - MOUNT
  • switch

6 6712258

  • 6712258 - HARNESS
  • strobe

7 35C412

  • 35C412 - SCREW FLGD HEX CAP

8 6669308

  • 6669308 - RETAINER

9 6665022

  • 6665022 - FLASHTUBE
  • bulb - 3-pin rectangle base

10 6675858

  • 6675858 - FLASH TUBE
  • bulb 5 or 8 pin round base Use W/NLA 6675522 strobe light

11 6724071ENUS

  • 6724071ENUS - INSTRUCTIONS
