Bobcat
/
970.0
/

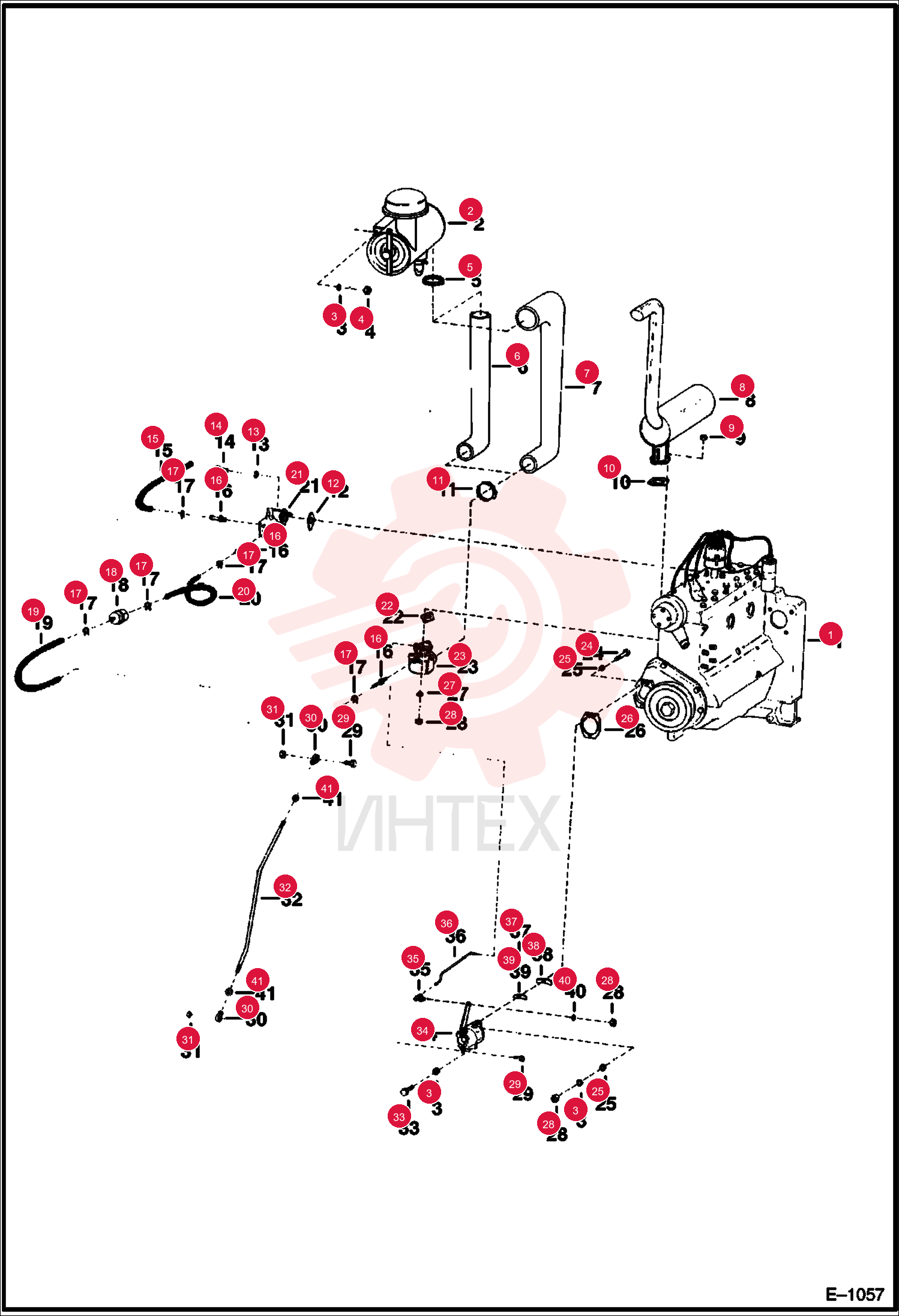

WASHER 4E6 (2)

WASHER 4E6 (2)

WASHER 4E6 (2)

1 4E6

  • 4E6 - WASHER

2 61D4

  • 61D4 - NUT 5

3 42H64

  • 42H64 - CLAMP

4 42H40

  • 42H40 - HOSECLAM5

5 853338

  • 853338 - WASHER

6 17C512

  • 17C512 - BOLT 5

7 6590821

  • 6590821 - HOSE

8 6505813

  • 6505813 - ADAPTER
  • barbed

9 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

10 6511393

  • 6511393 - FILTER
  • FUEL

11 6504093

  • 6504093 - HOSE

12 6504094

  • 6504094 - HOSE

13 17C652

  • 17C652 - BOLT

14 851374

  • 851374 - WASHER

15 879990

  • 879990 - GASKET

16 6E6

  • 6E6 - WASHER

17 7D6

  • 7D6 - NUT

18 17C412

  • 17C412 - BOLT 5

19 6512954

  • 6512954 - ROD END
  • throttle rod - R.H. threads

20 61D4

  • 61D4 - NUT 5

21 6503746

  • 6503746 - ROD

22 17C618

  • 17C618 - BOLT

23 1306167

  • 1306167 - BALL JNT

24 6518790

  • 6518790 - ROD

25 1300311

  • 1300311 - CLIP

26 4E4

  • 4E4 - WASHER

27 8D6

  • 8D6 - NUT HEX JAM
