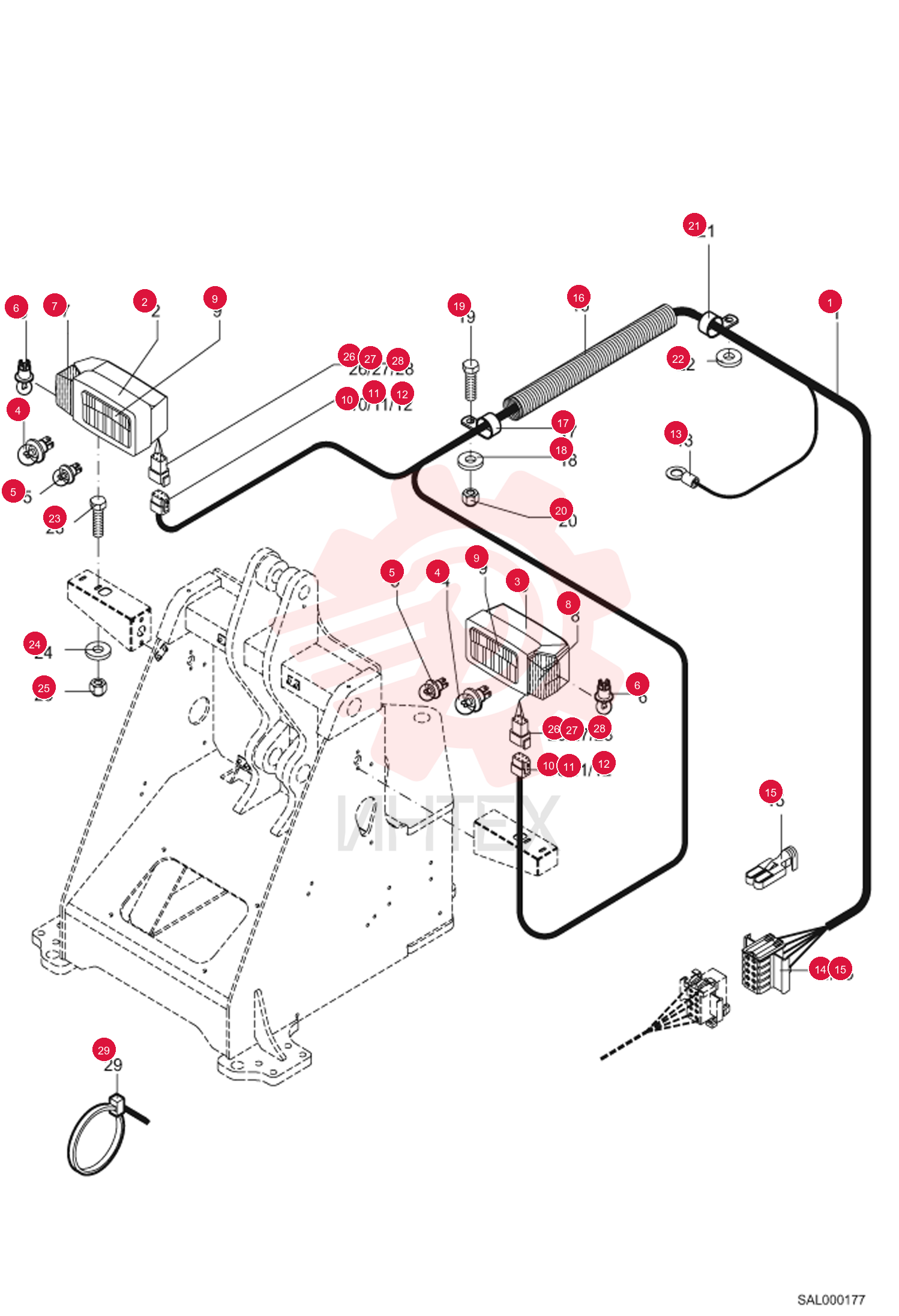

HARNESS, WIRE FRONT 5110662034 (1)

HARNESS, WIRE FRONT 5110662034 (1)

HARNESS, WIRE FRONT 5110662034 (1)

1 5110662034

  • 5110662034 - HARNESS
  • WIRE FRONT

2 5110660147

  • 5110660147 - LIGHT
  • HEAD RIGHT

3 5110660148

  • 5110660148 - LIGHT
  • HEAD LEFT

4 1813000022

  • 1813000022 - BULB
  • HALOGEN

5 1813000002

  • 1813000002 - LIGHT
  • BULB

6 1813000005

  • 1813000005 - LIGHT
  • BULB

7 5110660183

  • 5110660183 - GLASS (SIGNAL LIGHT) RIGHT

8 5110660184

  • 5110660184 - GLASS (SIGNAL LIGHT) LEFT

9 5110660190

  • 5110660190 - REFLECTOR

10 5350555327

  • 5350555327 - HOUSING

11 5350555328

  • 5350555328 - LOCK

12 5350555325

  • 5350555325 - FEMALE TERMINAL

13 5350249597

  • 5350249597 - CABLE CONNECTOR

14 5350249554

  • 5350249554 - HOUSING

15 5350249552

  • 5350249552 - CONNECTOR

16 5399000294

  • 5399000294 - HOSE
  • PART

17 5000136710

  • 5000136710 - HOSE CLIP

18 1290707018

  • 1290707018 - WASHER

19 1008707318

  • 1008707318 - BOLT

20 1212251011

  • 1212251011 - NUT

21 5000096800

  • 5000096800 - HOSE CLAMP

22 1343707057

  • 1343707057 - WASHER

23 1008707618

  • 1008707618 - BOLT

24 1343707057

  • 1343707057 - WASHER

25 1212251011

  • 1212251011 - NUT

26 5350555342

  • 5350555342 - HOUSING
  • MALE

27 5350555344

  • 5350555344 - LOCK

28 5350555321

  • 5350555321 - MALE TERMINAL

29 5653093560

  • 5653093560 - BINDER
