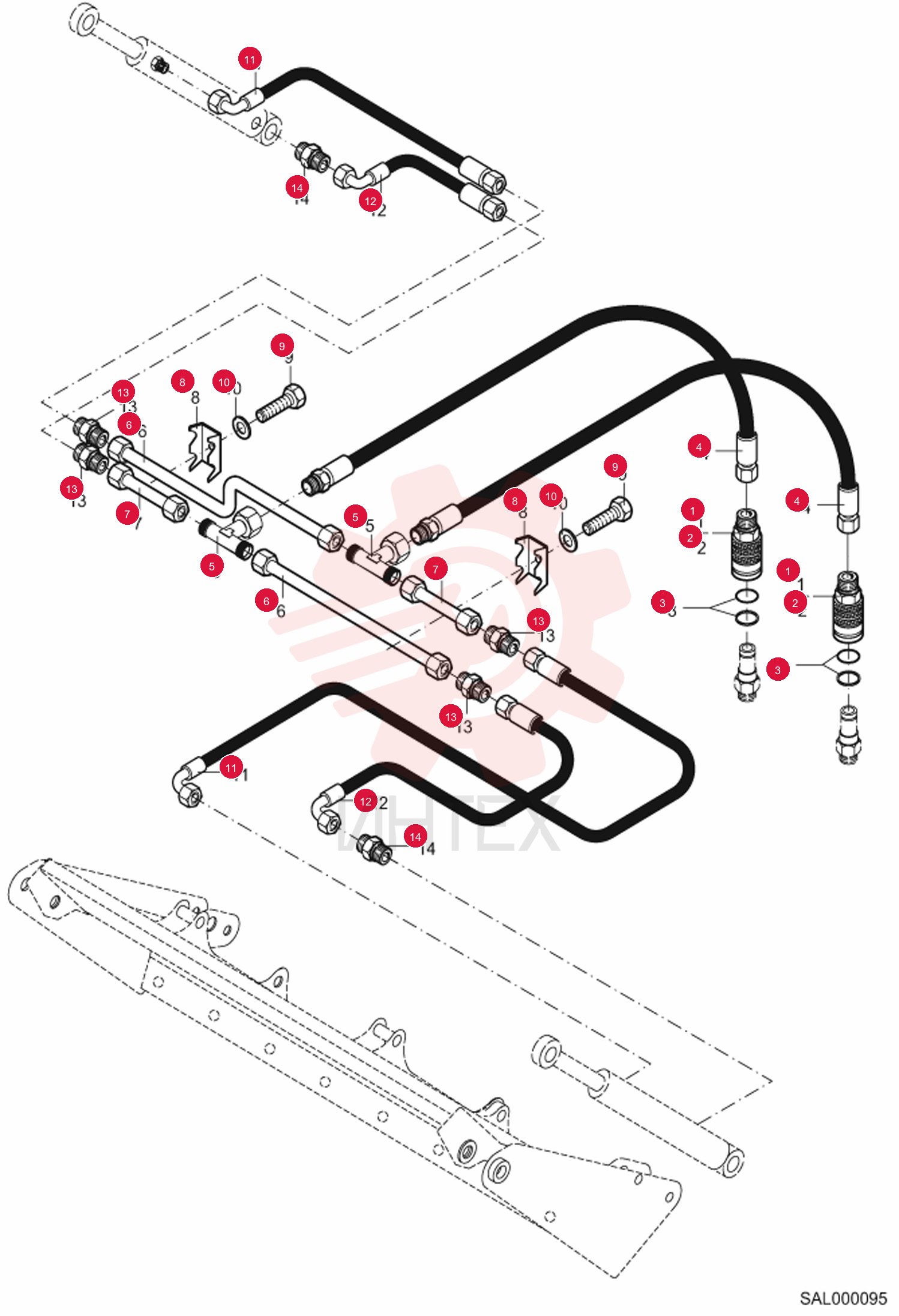

SOCKET, COUPLER 5000080003 (1)

SOCKET, COUPLER 5000080003 (1)

SOCKET, COUPLER 5000080003 (1)

1 5000080003

  • 5000080003 - SOCKET
  • COUPLER
  • Includes Ref. 3

2 5000080004

  • 5000080004 - CAP
  • DUST

3 5000080006

  • 5000080006 - KIT
  • SEAL

4 4260047382

  • 4260047382 - HOSE

5 1919000585

  • 1919000585 - FITTING

6 0323405005

  • 0323405005 - TUBING

7 0360305007

  • 0360305007 - TUBING

8 0271409049

  • 0271409049 - CLIP
  • PIPE

9 1008707618

  • 1008707618 - BOLT

10 1290707018

  • 1290707018 - WASHER

11 4260045374

  • 4260045374 - HOSE

12 4260077374

  • 4260077374 - HOSE

13 1915000419

  • 1915000419 - FITTING

14 1915000139

  • 1915000139 - FITTING
