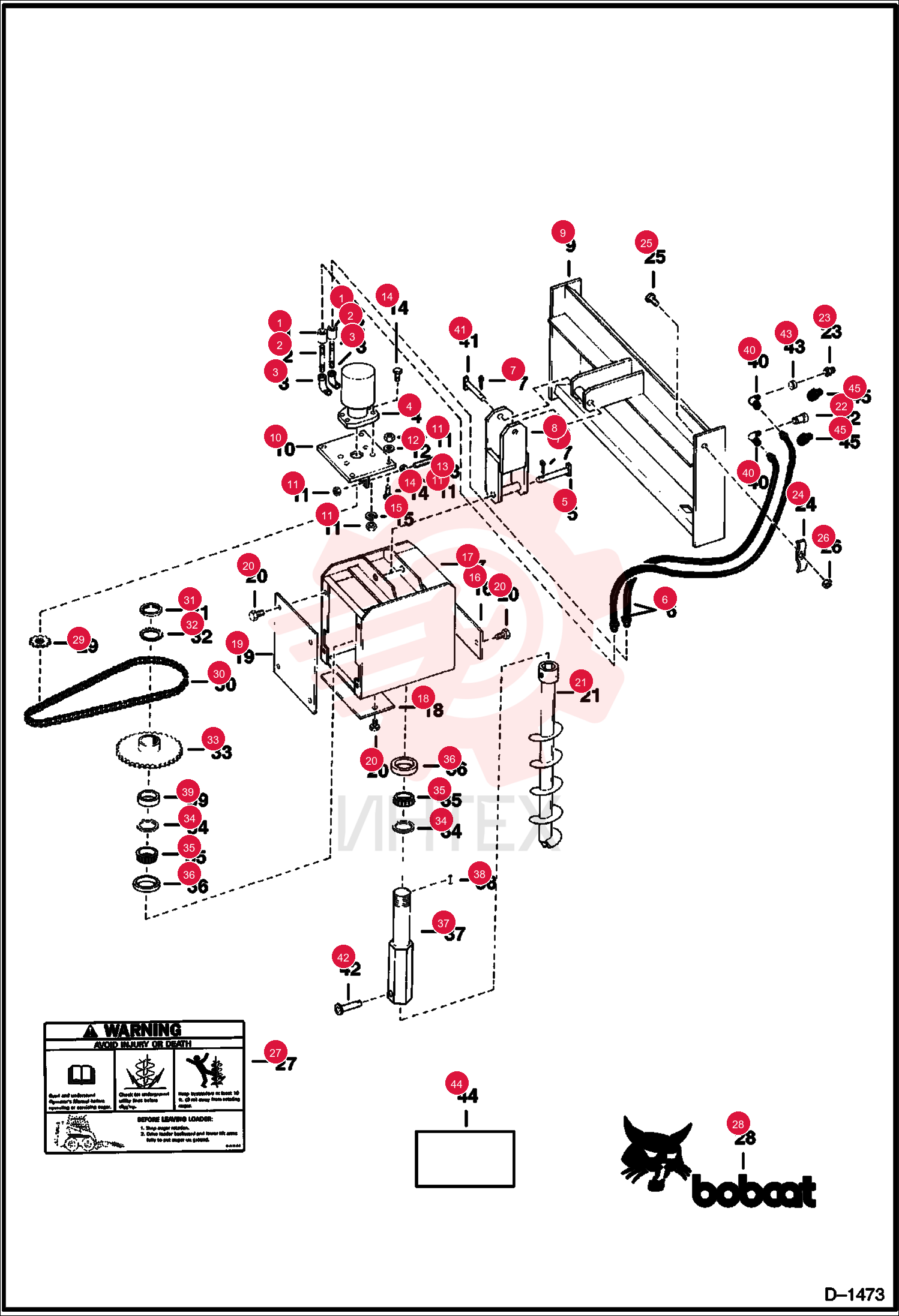

UNION 37F4

UNION 37F4

1 37F4

  • 37F4 - UNION

2 5K444

  • 5K444 - NIPPLE

3 535276

  • 535276 - ADAPTOR

4 6513442

  • 6513442 - PIN

5 1564255

  • 1564255 - HYD HOSE

6 1F828

  • 1F828 - PIN

7 6513668

  • 6513668 - LINK
  • connector

8 6513667

  • 6513667 - PLATE

9 61D5

  • 61D5 - NUT HEX FINISHED GR5

10 25E20

  • 25E20 - WASHER

11 6011899

  • 6011899 - BOLT ADJUSTING
  • adjusting

12 17C828

  • 17C828 - BOLT

13 24E8

  • 24E8 - WASHER

14 6513666

  • 6513666 - COVER
  • rear

15 6513663

  • 6513663 - HOUSING
  • drive

16 6513664

  • 6513664 - COVER
  • lower - Was 6513665

17 6513664

  • 6513664 - COVER
  • front

18 17C612

  • 17C612 - SCREW HEX CAP

19 6598756

  • 6598756 - COUPLER
  • female - poppet

20 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

21 25K40026

  • 25K40026 - O RING 10
  • Use with poppet coupler

22 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

23 6598755

  • 6598755 - COUPLER
  • male - poppet

24 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - Was 6674688

25 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

26 6502773

  • 6502773 - CLAMP

27 17C624

  • 17C624 - BOLT 5

28 81D6

  • 81D6 - NUT

29 6701001

  • 6701001 - DECAL
  • WARNING
  • Was 6567255

30 6567987

  • 6567987 - DECAL
  • LOGO BOBCAT AND HEAD

31 6513425

  • 6513425 - SPROCKET
  • motor

32 6632387

  • 6632387 - LINK
  • CONNECTING
  • Was 6515191

33 6531427

  • 6531427 - CHAIN
  • Was 6513427

34 24H10

  • 24H10 - LOCKNUT

35 26H10

  • 26H10 - WASHER

36 6531426

  • 6531426 - SPROCKET
  • Was 6513426

37 6513441

  • 6513441 - SEAL

38 6648054

  • 6648054 - BEARING
  • Was 655233B

39 654152

  • 654152 - CUP

40 6652833

  • 6652833 - SHAFT
  • round - W/ 7/8" (22
  • 23mm) hole - 13" (330
  • 2mm) long

41 6632176

  • 6632176 - SHAFT
  • hex

42 7J7106

  • 7J7106 - KEY

43 6513669

  • 6513669 - SPACER

44 29F3

  • 29F3 - ELBOW

45 6660415

  • 6660415 - PIN

46 6599982

  • 6599982 - BUSHING
  • Needed when using auger W/1/2" (12
  • 7mm) hole and drive shaft W/ 7/8" (22
  • 23mm) hole

47 6565265

  • 6565265 - ORIFICE
  • .142" (3
  • 61mm) Dia

48 6651416

  • 6651416 - DECAL

49 6669284

  • 6669284 - ADAPTER
  • COUPLER
  • Use to convert to flush face couplers
