Bobcat
/
B200
/

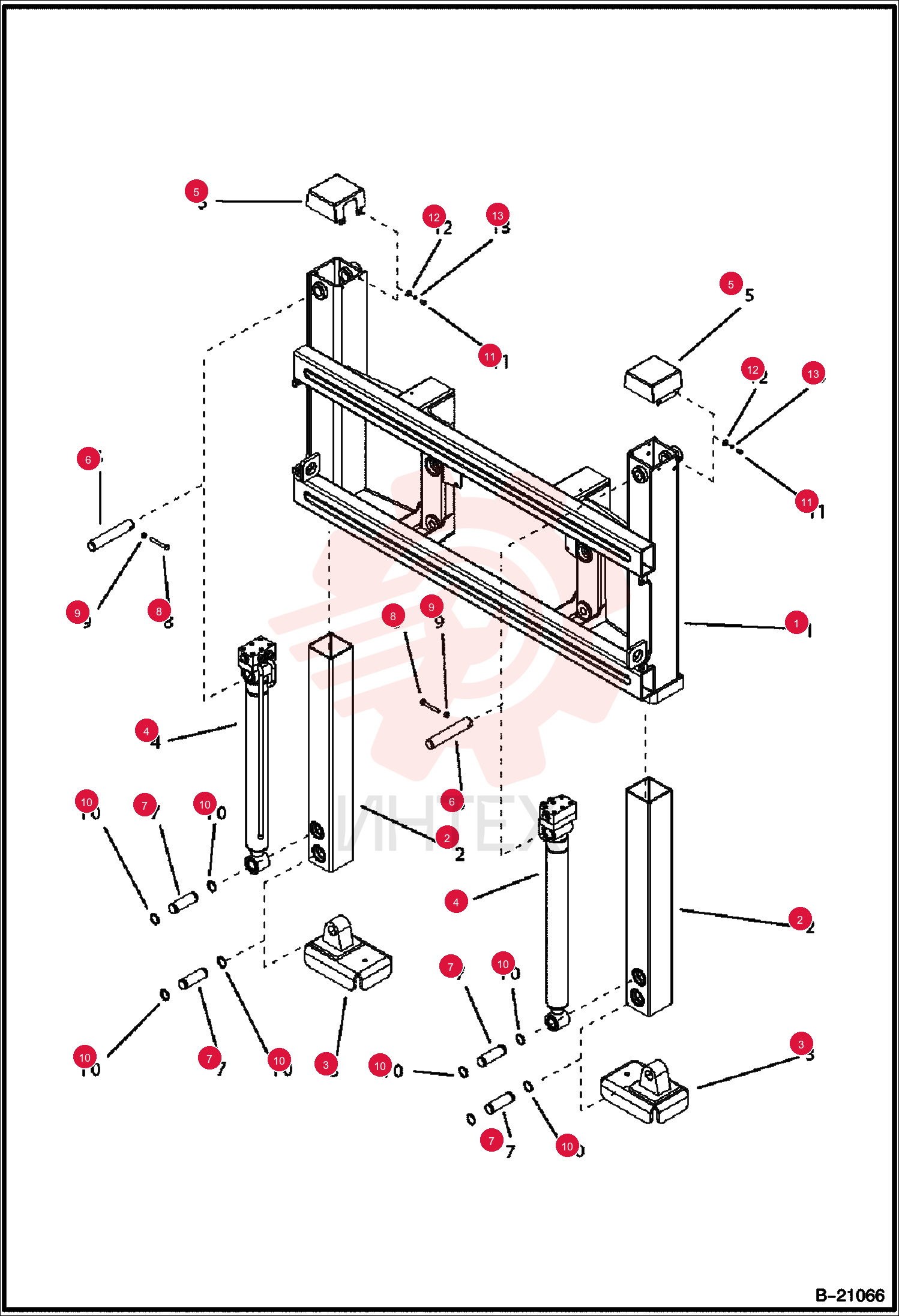

SLIDE WAY TRUNNION

SLIDE WAY TRUNNION

SLIDE WAY TRUNNION

1 6960916

  • 6960916 - SLIDE WAY TRUNNION

2 6960917

  • 6960917 - STABILIZER

3 6960918

  • 6960918 - STREET PAD

4 6960912

  • 6960912 - CYLINDER
  • HYD

5 6960913

  • 6960913 - PIN

6 6960914

  • 6960914 - PIN

7 1CM865

  • 1CM865 - SCREW

8 16DM8

  • 16DM8 - NUT

9 6JM30

  • 6JM30 - RING

10 4CM612

  • 4CM612 - BOLT

11 8EM60

  • 8EM60 - RING
