COUPLER ENGINE 7291166 (2)

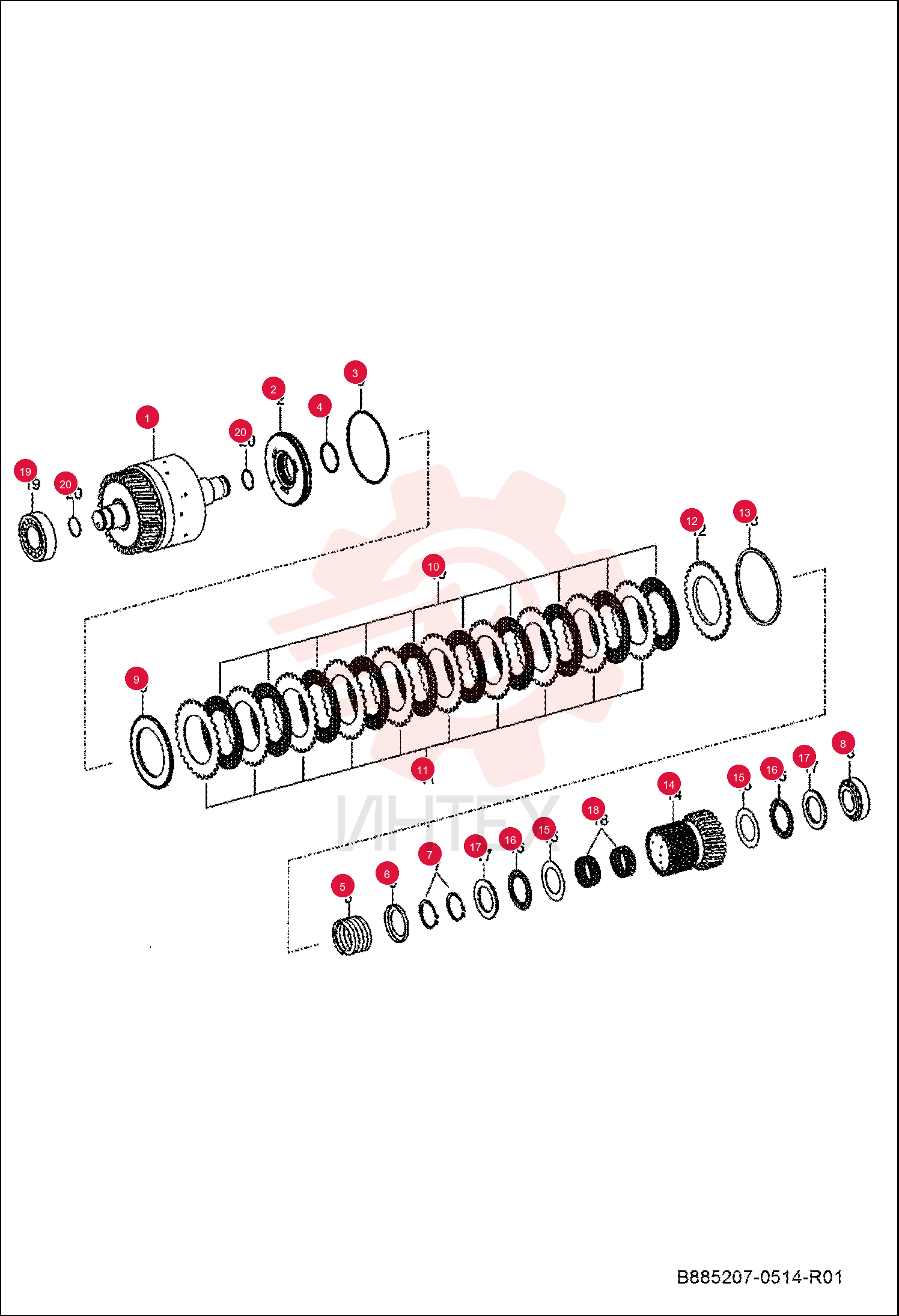

COUPLER ENGINE 7291166 (2)

COUPLER ENGINE 7291166 (2)

1 7291166

  • 7291166 - COUPLER ENGINE

2 7291044

  • 7291044 - PISTON UNION

3 7291045

  • 7291045 - O-RING

4 7291046

  • 7291046 - O-RING

5 7291048

  • 7291048 - SEAL RING

6 7291049

  • 7291049 - RING SEAL

7 7291050

  • 7291050 - RING RETAINING

8 7291124

  • 7291124 - ROLLER BEARING

9 7291167

  • 7291167 - SPRING WASHER

10 7291168

  • 7291168 - WASHER FLAT

11 7291052

  • 7291052 - DISC CLUTCH

12 7291053

  • 7291053 - DISC CLUTCH

13 7291054

  • 7291054 - SHIM RING

14 7291169

  • 7291169 - SNAP RING A=2.0

15 7291170

  • 7291170 - SNAP RING A=2.25

16 7291171

  • 7291171 - SNAP RING A=2.5

17 7291173

  • 7291173 - SNAP RING A=3.0

18 7291177

  • 7291177 - SNAP RING A=4.0

19 7291176

  • 7291176 - SNAP RING A=3.75

20 7291175

  • 7291175 - SNAP RING A=3.5

21 7291174

  • 7291174 - SNAP RING A=3.25

22 7291172

  • 7291172 - SNAP RING A=2.75

23 7291178

  • 7291178 - CARRIER DISC

24 7291065

  • 7291065 - WASHER FLAT

25 7291066

  • 7291066 - WASHER FLAT

26 7291067

  • 7291067 - DISC CLUTCH

27 7291068

  • 7291068 - WASHER FLAT

28 7291179

  • 7291179 - BEARING

29 7291157

  • 7291157 - RING SEAL
