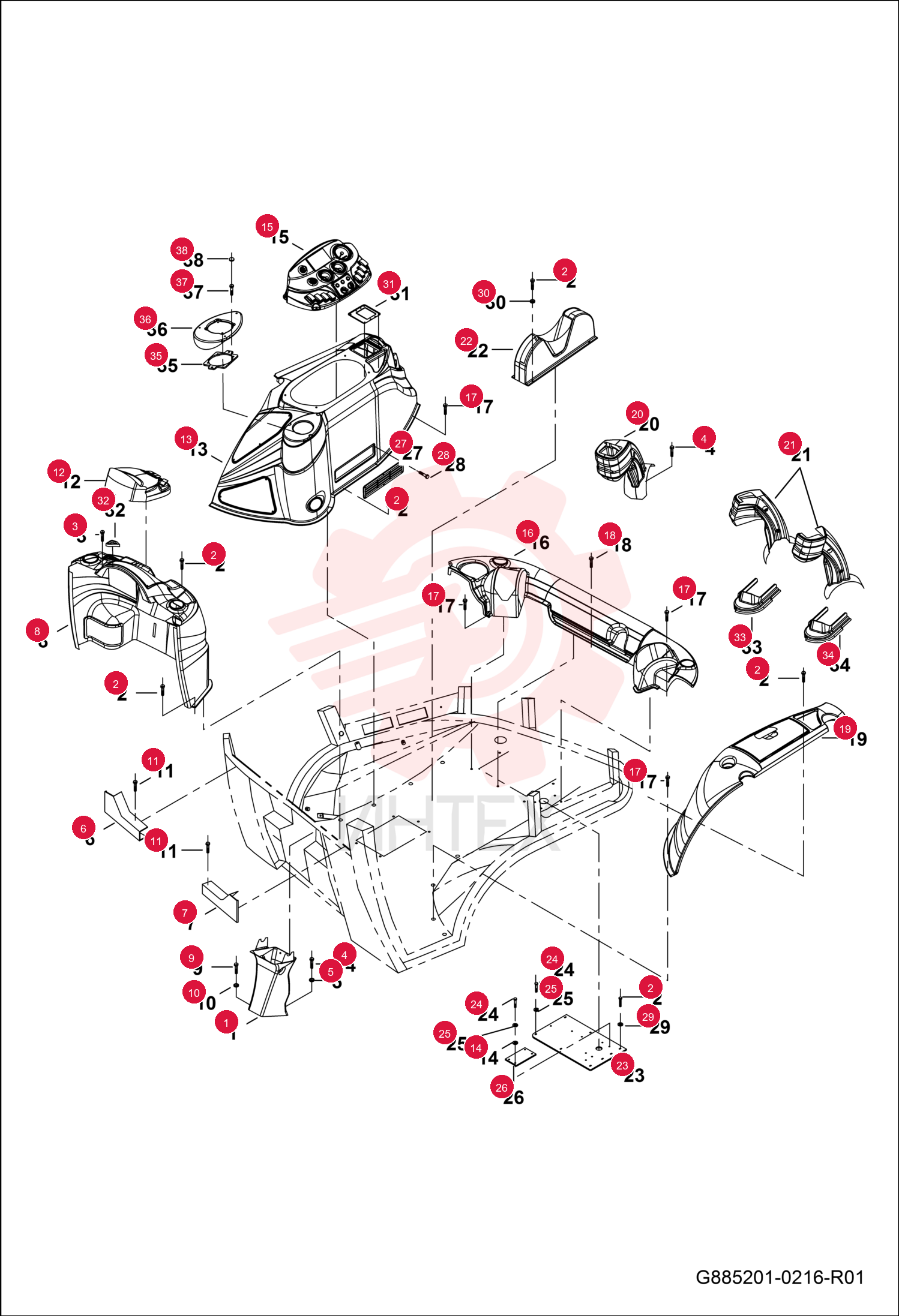

POLYESTER 7292154 (1)

POLYESTER 7292154 (1)

POLYESTER 7292154 (1)

1 7292154

  • 7292154 - POLYESTER

2 7289609

  • 7289609 - BOLT HEX

3 7304523

  • 7304523 - BOLT

4 7290407

  • 7290407 - BOLT

5 7289272

  • 7289272 - BUSHING SPACER

6 7304308

  • 7304308 - RIGHT FRONT B. POLYESTER

7 7304309

  • 7304309 - FRONT LEFT B. POLYESTER

8 7304310

  • 7304310 - FRONT CONSOLE GROUP

9 7289273

  • 7289273 - BOLT HEX

10 7288892

  • 7288892 - WASHER FLAT

11 7304311

  • 7304311 - BOLT

12 7304092

  • 7304092 - COVER

13 7304312

  • 7304312 - RIGHT CONSOLE GROUP

14 7288891

  • 7288891 - WASHER LOCK

15 7291259

  • 7291259 - POLYESTER

16 7304313

  • 7304313 - RIGHT R. CORNER POLYESTER

17 7304144

  • 7304144 - BOLT

18 7293561

  • 7293561 - BOLT

19 7304314

  • 7304314 - LEFT CONSOLE GROUP

20 7293075

  • 7293075 - RIGHT JOYSTICK POLYESTER G.

21 7293077

  • 7293077 - LEFT JOYSTICK POLYESTER G.

22 7292166

  • 7292166 - HAND BRAKE CONSOLE GROUP

23 7293078

  • 7293078 - COVER

24 7289279

  • 7289279 - BOLT HEX

25 7289262

  • 7289262 - WASHER FLAT

26 7292174

  • 7292174 - COVER SHEET

27 7292170

  • 7292170 - COVER

28 7292171

  • 7292171 - BOLT

29 7289615

  • 7289615 - WASHER FLAT

30 7289507

  • 7289507 - WASHER FLAT

31 7304524

  • 7304524 - PLATE

32 7304317

  • 7304317 - CUP HOLDER

33 7304525

  • 7304525 - RIGHT BOTTOM COVER

34 7304526

  • 7304526 - LEFT BOTTOM COVER

35 7304527

  • 7304527 - PLATE

36 7304528

  • 7304528 - BOTTOM POLY.

37 7289542

  • 7289542 - BOLT

38 7289543

  • 7289543 - WASHER
