Bobcat
/
B780
/

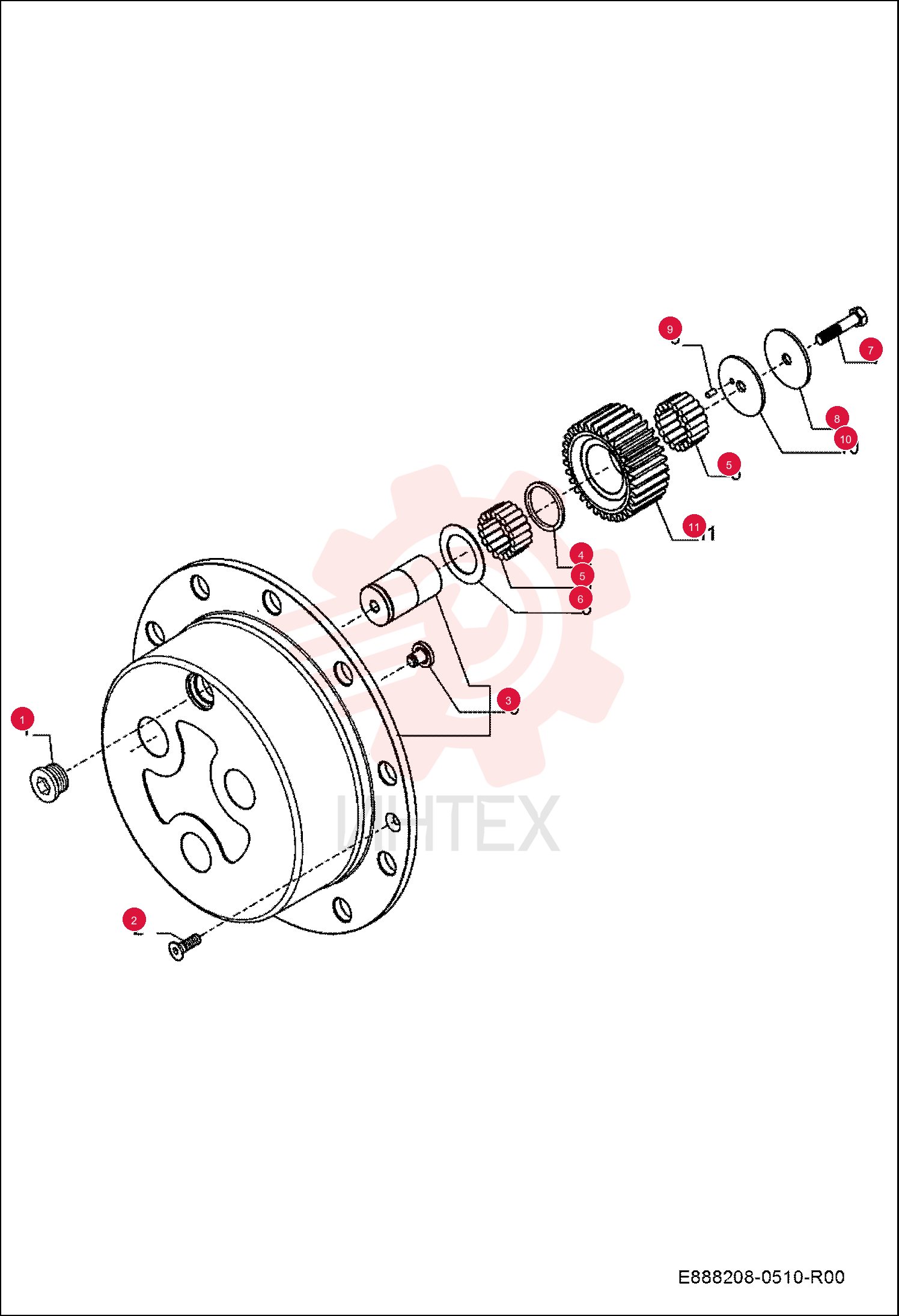

PLUG 100374-32C (1)

PLUG 100374-32C (1)

PLUG 100374-32C (1)

1 100374-32C

  • 100374-32C - PLUG

2 7290115

  • 7290115 - BOLT

3 7293500

  • 7293500 - PLANETARY CARRIER

4 7293501

  • 7293501 - WASHER

5 7293502

  • 7293502 - NEEDLE BEARINGS

6 7293503

  • 7293503 - THRUST WASHER

7 7290122

  • 7290122 - BOLT

8 7293504

  • 7293504 - THRUST WASHER

9 75834.2

  • 75834.2 - Needle Bearing

10 7293505

  • 7293505 - THRUST WASHER

11 7293506

  • 7293506 - GEAR
