BL275
/

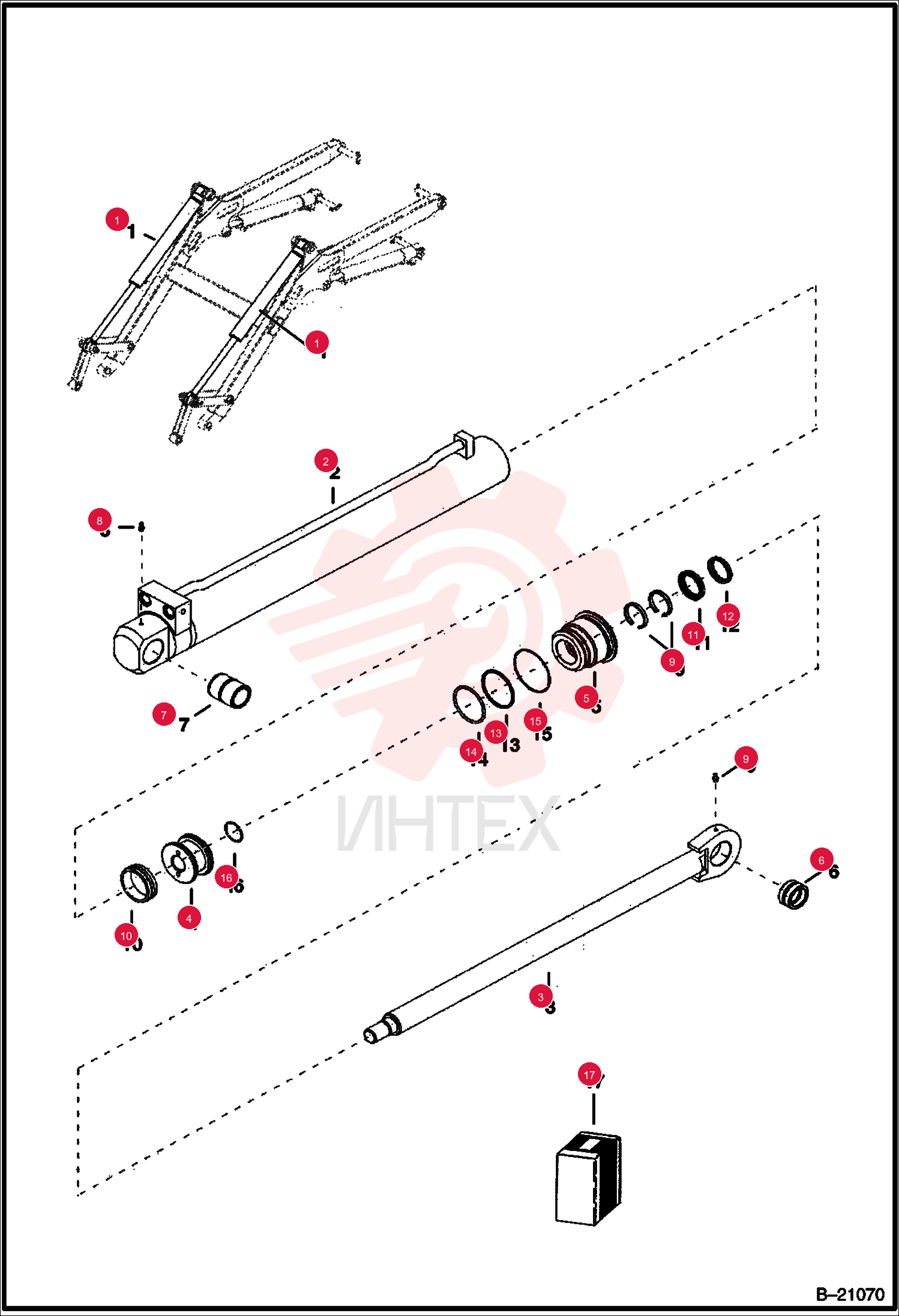

ROD, PISTON

ROD, PISTON

ROD, PISTON

1 6961201

  • 6961201 - ROD
  • PISTON

2 6960309

  • 6960309 - PISTON

3 6960321

  • 6960321 - HEAD
  • CYL

4 6960948

  • 6960948 - BUSHING

5 6960280

  • 6960280 - SEAL

6 6960314

  • 6960314 - SEAL

7 6960279

  • 6960279 - RING WIPER

8 79K14

  • 79K14 - O RING 10

9 6962303

  • 6962303 - SEAL KIT PR63/PR36
