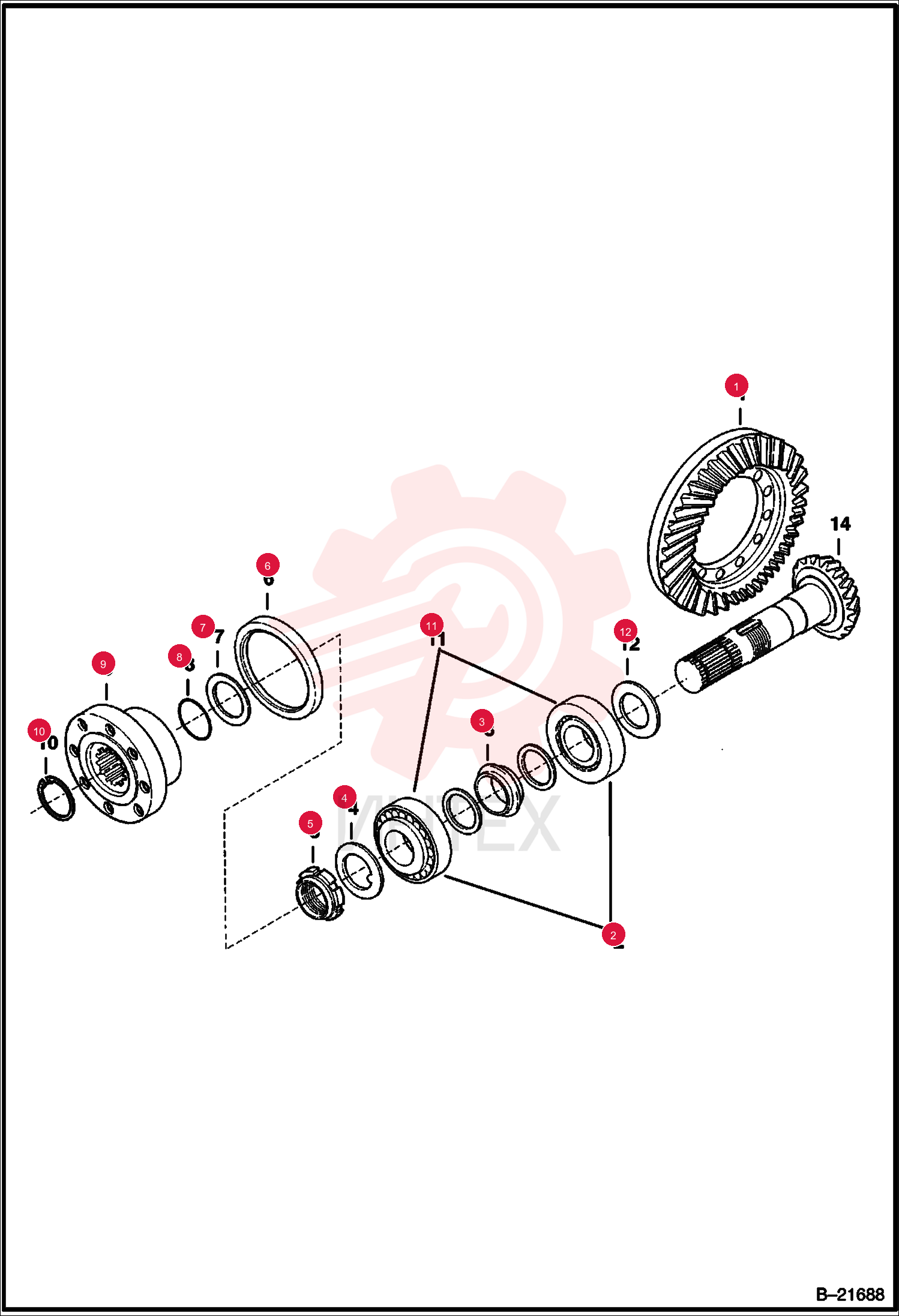

BEVEL GEAR SET Z10/32 6962460

BEVEL GEAR SET Z10/32 6962460

BEVEL GEAR SET Z10/32 6962460

1 6962460

  • 6962460 - BEVEL GEAR SET Z10/32

2 6962527

  • 6962527 - WASHER

3 6962528

  • 6962528 - SPACER

4 6962473

  • 6962473 - LOCKWASHER

5 6962472

  • 6962472 - RING NUT M35X1.5

6 6962486

  • 6962486 - SEAL RING

7 6962535

  • 6962535 - WASHER

8 6962353

  • 6962353 - O-RING

9 6962533

  • 6962533 - FLANGE

10 6962346

  • 6962346 - SNAP RING D30

11 6962351

  • 6962351 - BEARING

12 6962483

  • 6962483 - SHIM 3.40MM

13 6962482

  • 6962482 - SHIM 3.30MM

14 6962481

  • 6962481 - SHIM 3.20MM

15 6962480

  • 6962480 - SHIM 3.10MM

16 6962479

  • 6962479 - SHIM 3.00MM

17 6962478

  • 6962478 - SHIM 2.90MM

18 6962477

  • 6962477 - SHIM 2.80MM

19 6962476

  • 6962476 - SHIM 2.70MM

20 6962475

  • 6962475 - SHIM 2.60MM

21 6962474

  • 6962474 - SHIM 2.50MM
