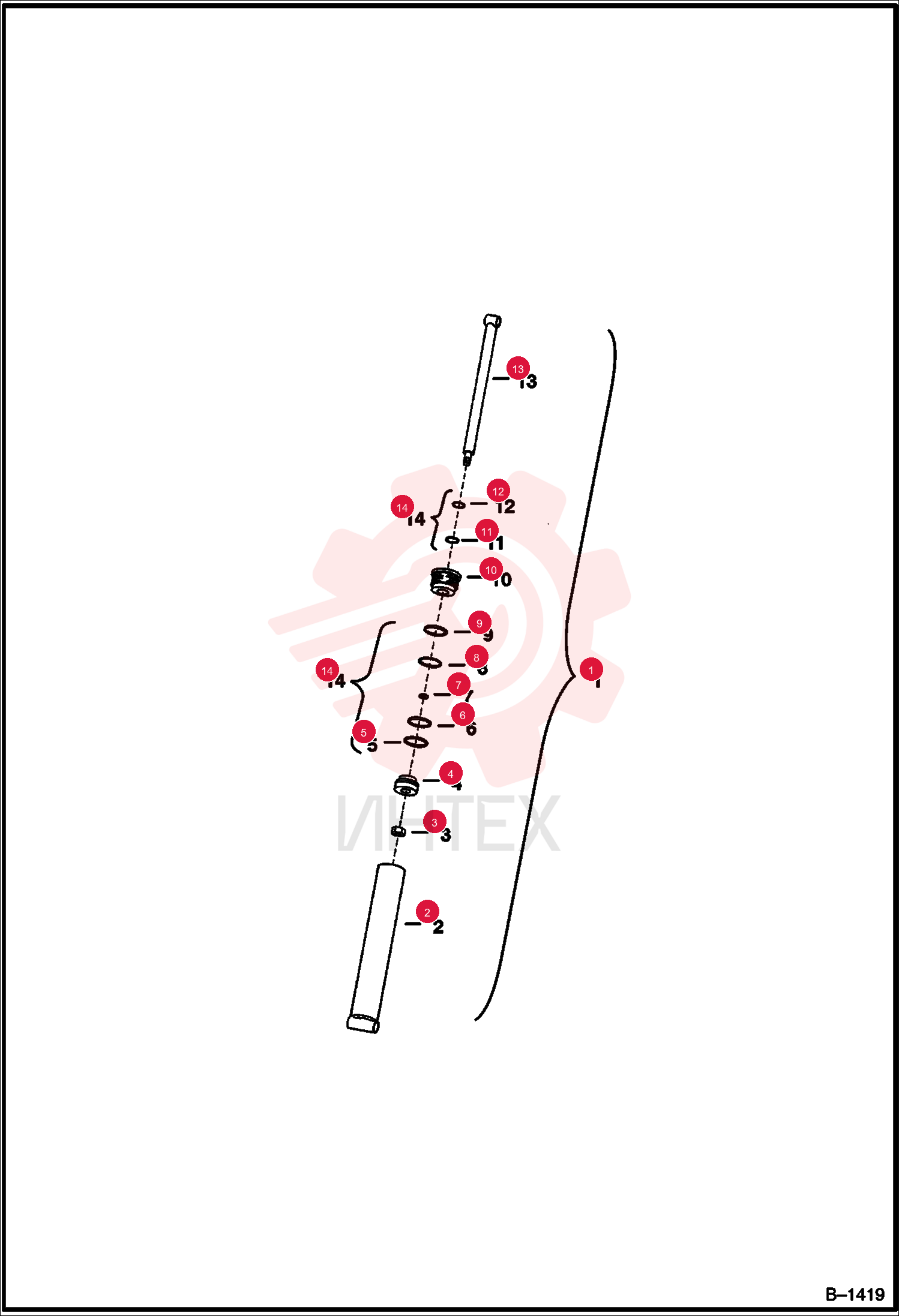

NUT 5

NUT 5

NUT 5

1 92D12

  • 92D12 - NUT 5
  • Was 82D-12

2 6516200

  • 6516200 - PISTON

3 6516229

  • 6516229 - SEAL
  • PISTON

4 54K30210

  • 54K30210 - O-RING
  • Was 25K30210

5 25K20020

  • 25K20020 - O RING 10

6 54K60212

  • 54K60212 - O-RING
  • Was 25K60212

7 73K332

  • 73K332 - O-RING
  • back-up - Was 80K000332B

8 6529998

  • 6529998 - HEAD
  • Was 6516199

9 6665184

  • 6665184 - SEAL
  • Was 6519519

10 6665208

  • 6665208 - WIPER
  • ROD CYL
  • wiper - Was 1657085B

11 6516198

  • 6516198 - SHAFT ASSEMBLY
  • NLA - Was 6516198

12 6589871

  • 6589871 - SEAL KIT
  • Ref. 3
  • 5 - 9
  • 11 & 12 - Was 6589489
