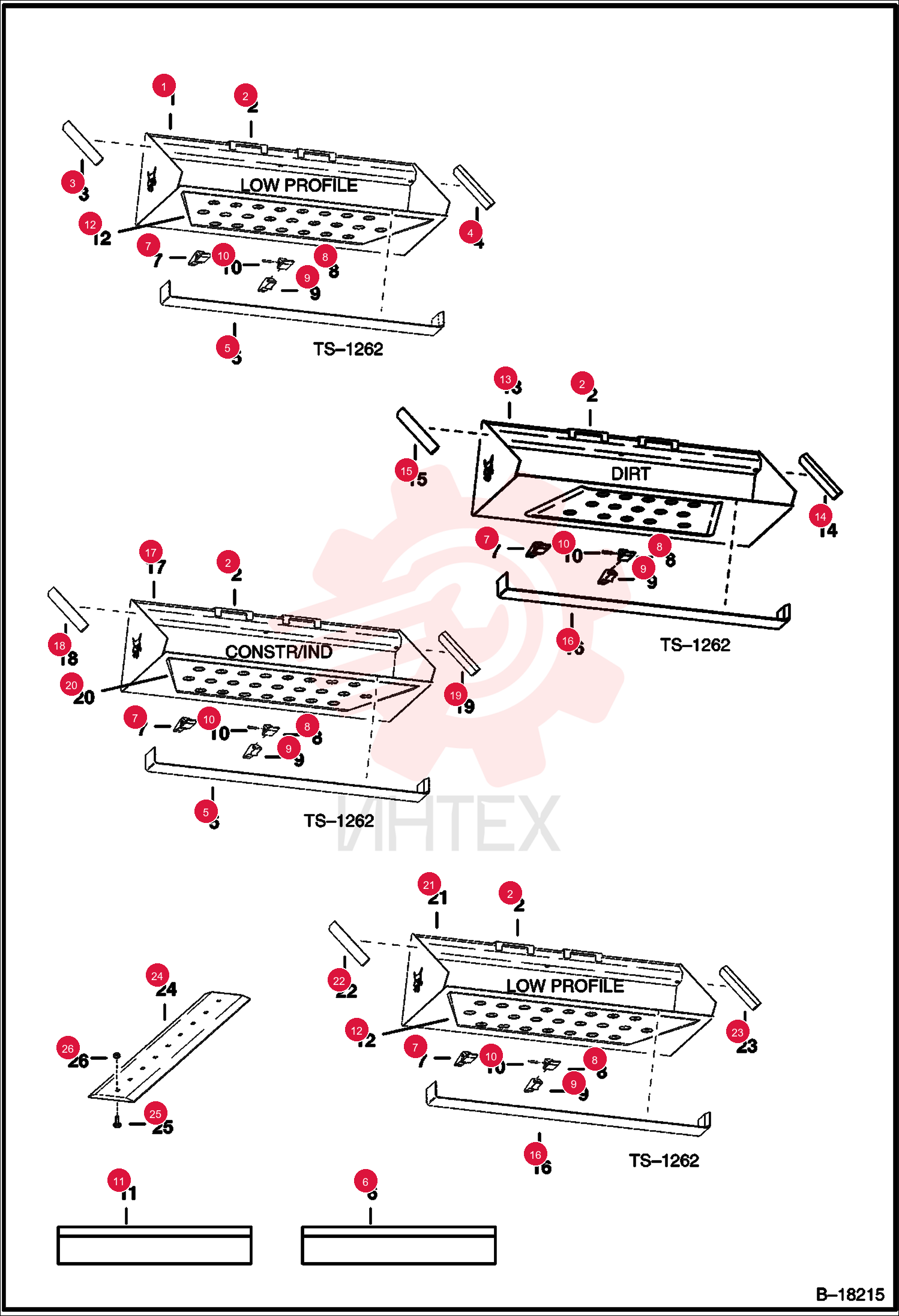

STEP 6577917

STEP 6577917

STEP 6577917

1 6577917

  • 6577917 - STEP

2 6713702

  • 6713702 - EDGE
  • CUTTING BOLT ON BEVELED 72.48"
  • with holes for bolt-on edge

3 6707811

  • 6707811 - EDGE
  • CUTTING WELD ON BEVELED 72.48"
  • without holes

4 6701005

  • 6701005 - EDGE
  • CUTTING BULK SINGLE BEV 66.5"
  • bulk - .50" x 4.0" x 66.4" (12.7 x 101.6 x 1686.56mm)

5 6630397

  • 6630397 - TOOTH
  • BUCKET ASSY 10
  • W/Ref. 8-10

6 6630424EF

  • 6630424EF - TOOTH
  • BUCKET

7 6630424

  • 6630424 - TOOTH
  • BUCKET 25

8 6567620

  • 6567620 - PIN FLEX 5

9 6579435

  • 6579435 - EDGE
  • CUTTING WELD-ON SIDE
  • bulk - .375" x 3.00" x 84.00" (9.5mm x 76.2mm x 2133.6mm) - Cut to fit

10 6706438

  • 6706438 - PLATE
  • SKID

11 6565778

  • 6565778 - EDGE
  • CUTTING WELD-ON 78"
  • 78" x 6.00" (1981.2 x 152.4mm) - without holes

12 6712621

  • 6712621 - EDGE
  • CUTTING BOLT ON BEVELED 78.13"
  • 78" x 6.00"(1981 x 152mm) - with holes for bolt-on edge

13 6707256

  • 6707256 - PLATE
  • SKID

14 6661455

  • 6661455 - EDGE
  • CUTTING BOLT-ON 80"
  • bolt-on - 78"(1981mm)

15 6713713

  • 6713713 - EDGE
  • CUTTING BOLT-ON 74"

16 39C1032

  • 39C1032 - BOLT
  • Was 6660297

17 85D10

  • 85D10 - NUT
  • 5
  • Was 6660298
