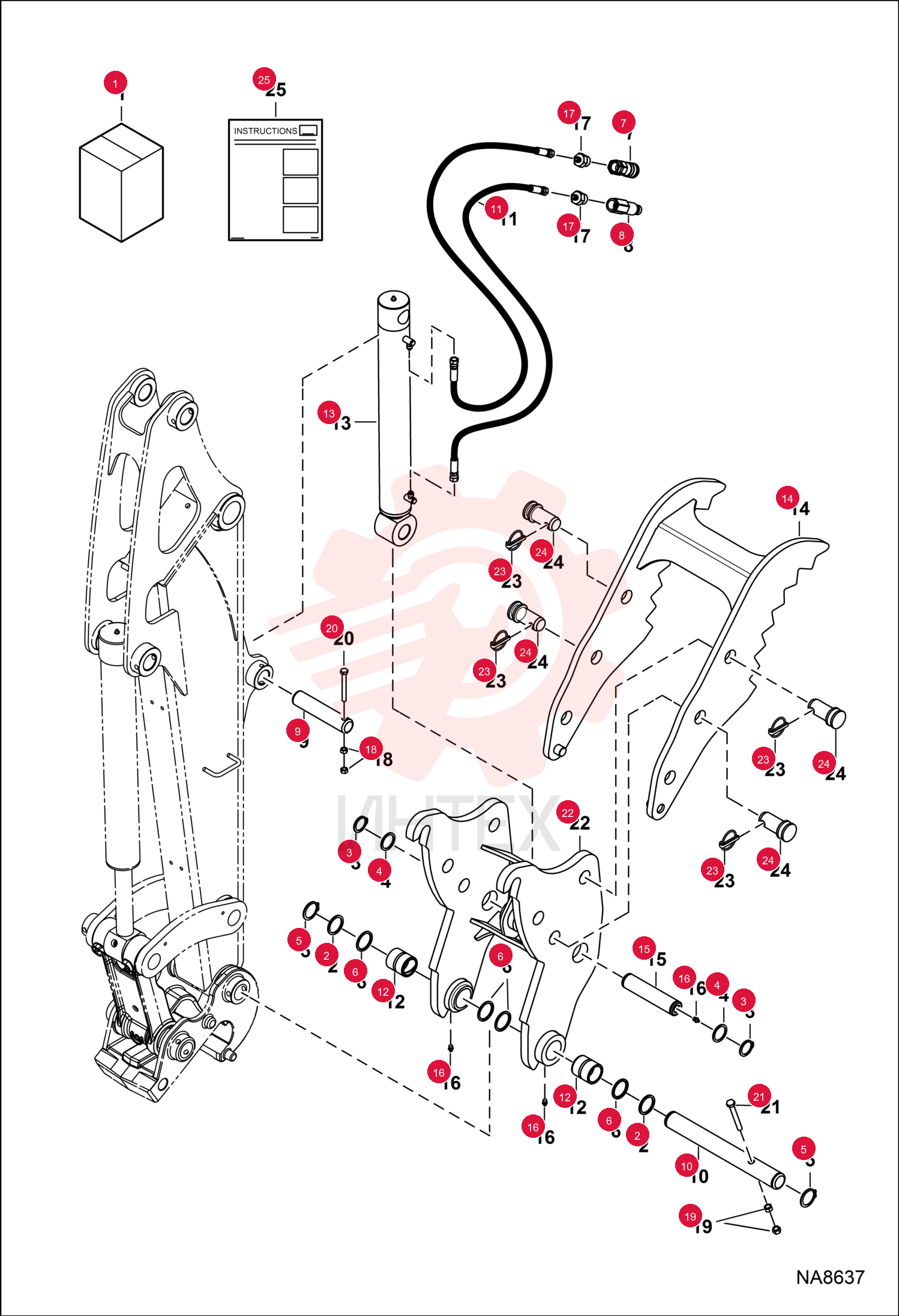

WASHER 6628547 (7)
1 6628547
- 6628547 - WASHER
2 6665618
- 6665618 - RING
- SNAP
3 6666549
- 6666549 - WASHER
4 6668787
- 6668787 - RING
- SNAP
5 6669287
- 6669287 - SEAL
6 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
7 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
8 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
9 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
10 7208468
- 7208468 - PIN
- PIVOT
11 7166241
- 7166241 - PIN
- PIVOT
12 7201261
- 7201261 - HOSE
- HYD
- for 7240479 kit - E42/E45 std arm - 1346 mm (53") long
13 7201260
- 7201260 - HOSE
- HYD
- for 7240481 kit - E42/E45 long arm - 1638 mm (64.5") long
14 7305998
- 7305998 - HOSE HYDRAULIC ASSY
- for 7240475 kit - E50 std arm - 1371
- 6mm (54") long - Was 7200841
15 7200840
- 7200840 - HOSE
- HYD
- for 7240477 kit - E50/E55 long arm - 1842 mm (72.5") long
16 7172745
- 7172745 - BUSHING
- WEAR
17 7230840
- 7230840 - CLAMP
- W/A
18 7177698
- 7177698 - PIN
- PIVOT
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 15KB0612
- 15KB0612 - FITTING
- HYD CONNECTOR
21 4DM10
- 4DM10 - NUT HEX
22 4DM12
- 4DM12 - NUT HEX
23 7CM1090
- 7CM1090 - BOLT
- HEX SOCKET
24 7CM12100
- 7CM12100 - BOLT
25 7230830
- 7230830 - CLAMP
- W/A
26 6668928
- 6668928 - PIN
- LOCK
27 7230849
- 7230849 - PIN
28 6990953ENUS
- 6990953ENUS - INSTRUCTIONS
- Was 6990953
