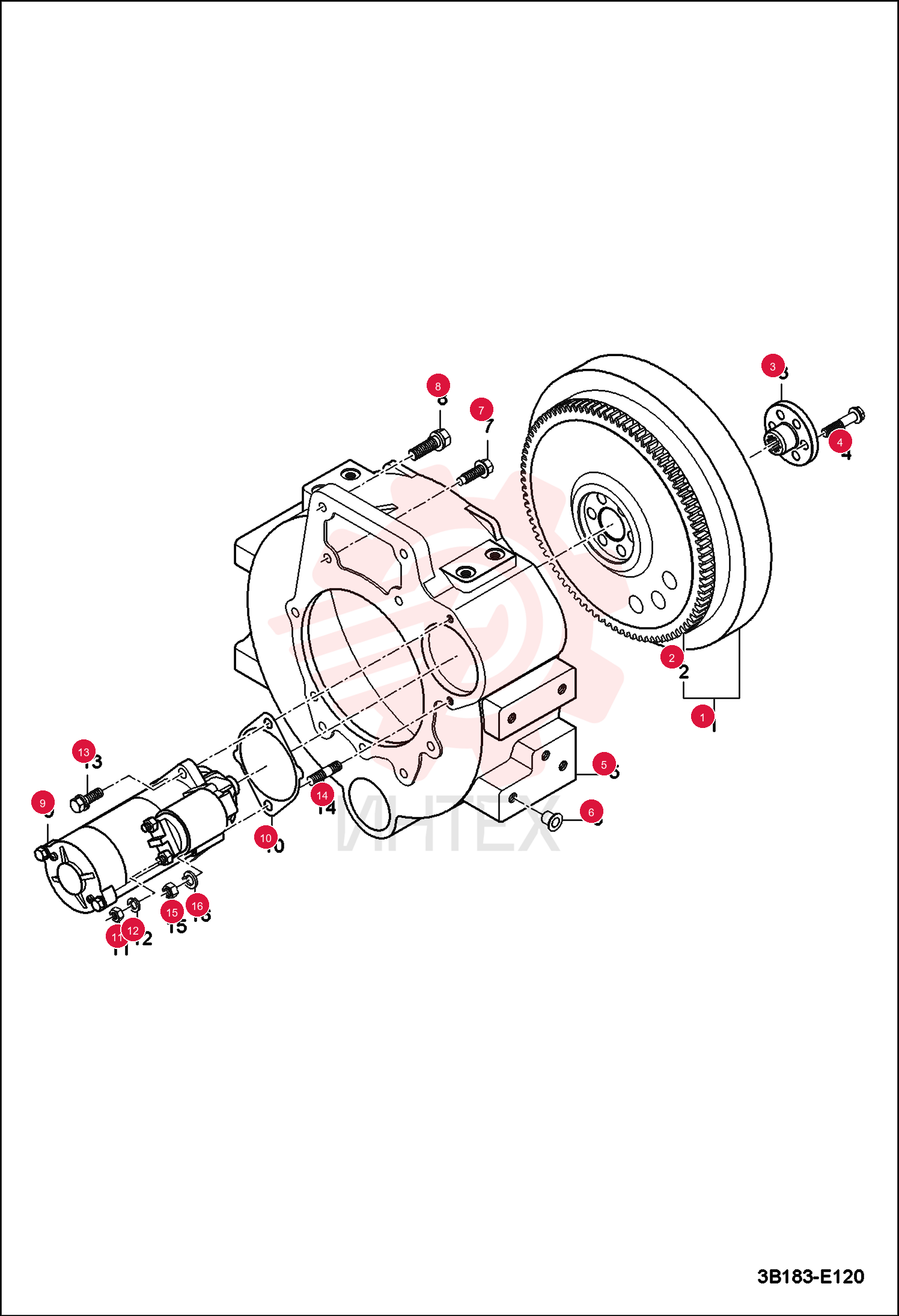

FLYWHEEL ENGINE ASSEMBLY 7012876

FLYWHEEL ENGINE ASSEMBLY 7012876

FLYWHEEL ENGINE ASSEMBLY 7012876

1 7012876

  • 7012876 - FLYWHEEL ENGINE ASSEMBLY
  • W/Ref. 2

2 6696485

  • 6696485 - GEAR
  • RING

3 7012875

  • 7012875 - HUB
  • SPLINE

4 7012874

  • 7012874 - BOLT
  • FLYWHEEL

5 7002178

  • 7002178 - HOUSING
  • FLYWHEEL

6 6694351

  • 6694351 - PLUG

7 6697072

  • 6697072 - BOLT FLANGE

8 6693988

  • 6693988 - BOLT

9 7012886

  • 7012886 - STARTER
  • Valeo E6864-63011

10 6695348

  • 6695348 - STARTER
  • Valeo E5500-6301

11 6695950

  • 6695950 - GASKET

12 6652792

  • 6652792 - NUT
  • Was 6694053

13 6697775

  • 6697775 - WASHER SPRING

14 6693982

  • 6693982 - BOLT

15 6696777

  • 6696777 - STUD

16 27DM10

  • 27DM10 - NUT
  • Was 6694059

17 6694093

  • 6694093 - WASHER SPRING
