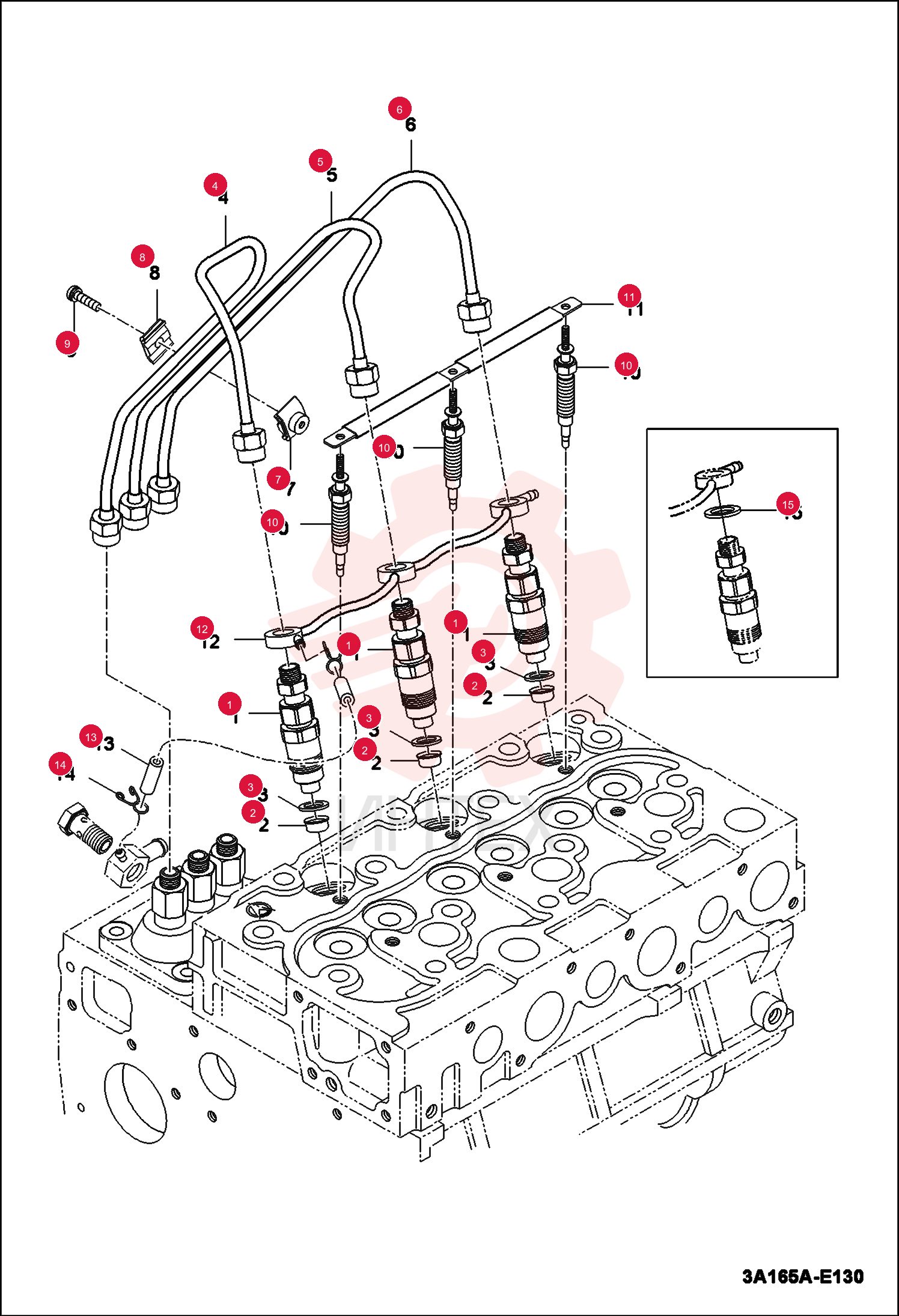

HOLDER, NOZZLE 7000227 (3)

HOLDER, NOZZLE 7000227 (3)

HOLDER, NOZZLE 7000227 (3)

1 7000227

  • 7000227 - HOLDER
  • NOZZLE

2 6694765

  • 6694765 - SHIELD HEAT

3 6694764

  • 6694764 - GASKET

4 6696843

  • 6696843 - TUBE INJECTION

5 6696850

  • 6696850 - TUBE INJECTION

6 6696152

  • 6696152 - TUBE INJECTION

7 6694302

  • 6694302 - CLAMP

8 6695729

  • 6695729 - CLAMP
  • PIPE

9 6694066

  • 6694066 - SCREW BOLT

10 6696044

  • 6696044 - PLUG GLOW

11 6695802

  • 6695802 - CORD GLOW PLUG

12 6696119

  • 6696119 - HOSE OVER FLOW

13 6694280

  • 6694280 - HOSE
  • FUEL RETURN

14 7002808

  • 7002808 - CLAMP
  • HOSE

15 7000228

  • 7000228 - GASKET
