Bobcat
/
CT335
/

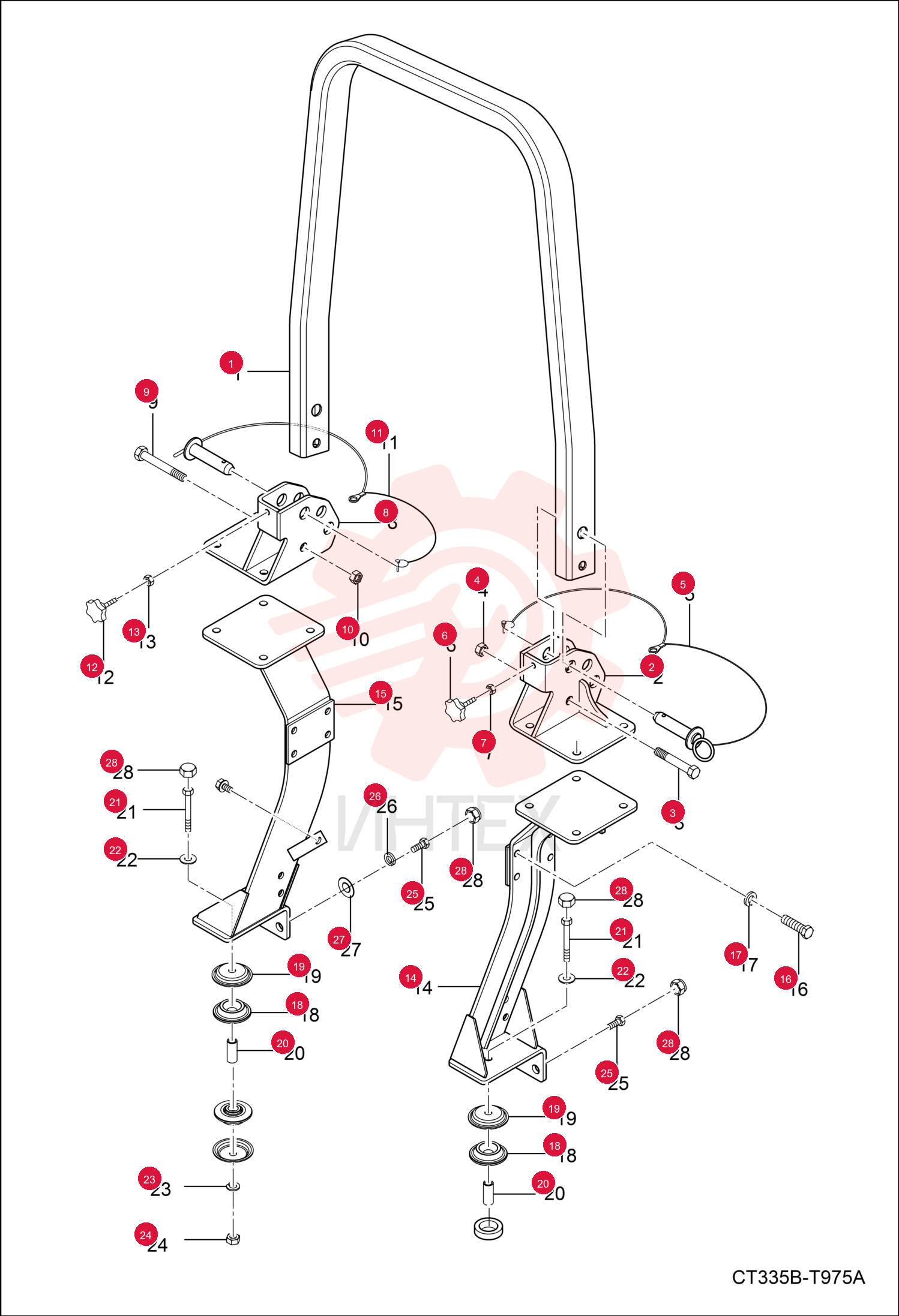

ROPS 7002642 (1)

ROPS 7002642 (1)

ROPS 7002642 (1)

1 7002642

  • 7002642 - ROPS

2 7002352

  • 7002352 - SUPPORT
  • ROPS LH

3 7002484

  • 7002484 - BOLT

4 7002587

  • 7002587 - NUT

5 7002046

  • 7002046 - PIN
  • ASSY

6 6694840

  • 6694840 - BOLT

7 6697458

  • 6697458 - NUT

8 7002353

  • 7002353 - SUPPORT
  • ROPS RH

9 7002484

  • 7002484 - BOLT

10 7002587

  • 7002587 - NUT

11 7002046

  • 7002046 - PIN
  • ASSY

12 6694840

  • 6694840 - BOLT

13 6697458

  • 6697458 - NUT

14 7002166

  • 7002166 - SUPPORT
  • FENDER

15 7002167

  • 7002167 - SUPPORT
  • FENDER

16 6694002

  • 6694002 - BOLT

17 6694094

  • 6694094 - WASHER SPRING

18 6697202

  • 6697202 - WASHER
  • CUSHION

19 6697677

  • 6697677 - STOP

20 6696704

  • 6696704 - SPACER

21 6694004

  • 6694004 - BOLT

22 6694094

  • 6694094 - WASHER SPRING

23 7002315

  • 7002315 - WASHER
  • PLAIN

24 6694044

  • 6694044 - NUT

25 6694002

  • 6694002 - BOLT

26 6694094

  • 6694094 - WASHER SPRING

27 7002315

  • 7002315 - WASHER
  • PLAIN

28 7002283

  • 7002283 - CAP
  • NUT
