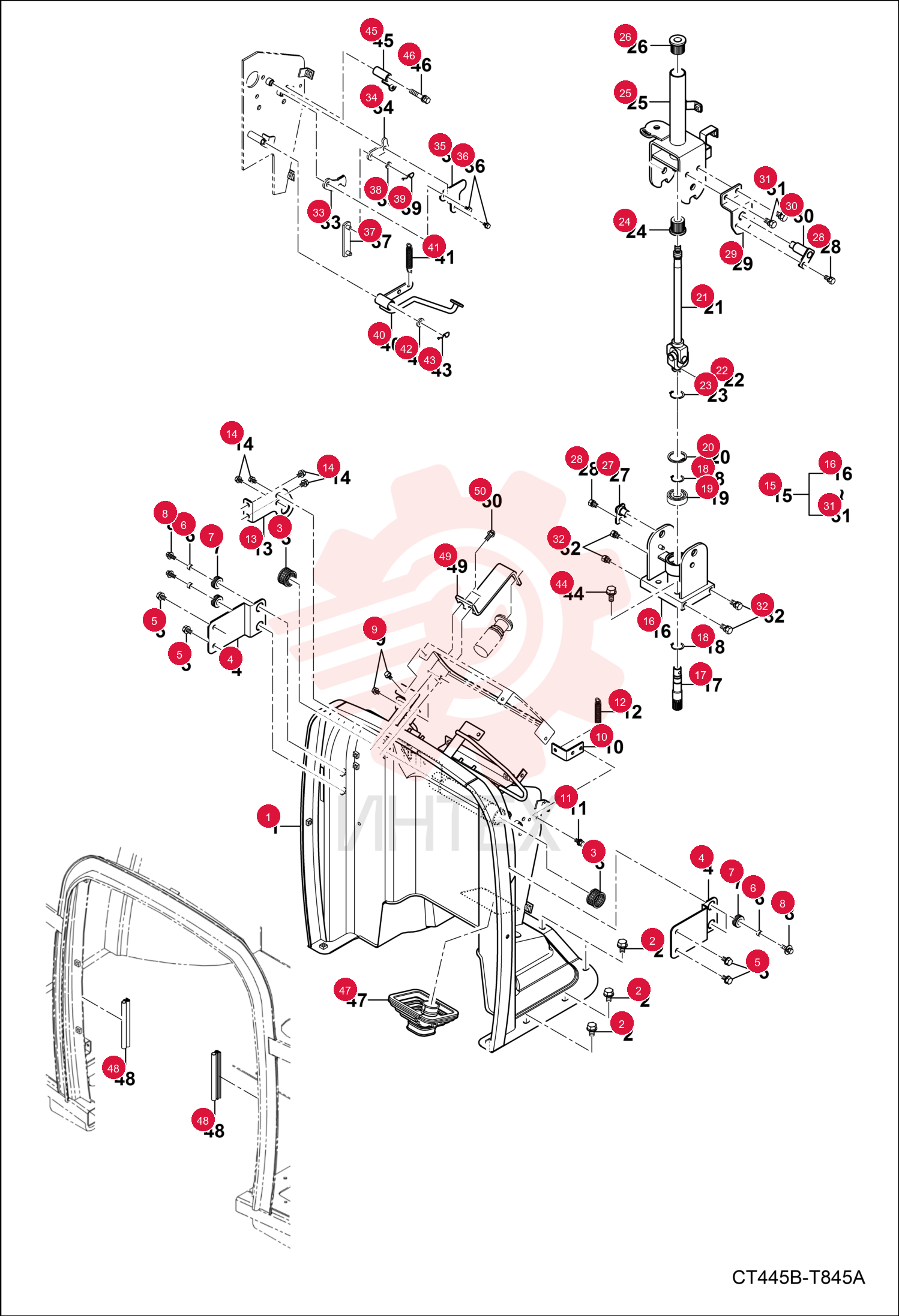

FRAME 7002929

FRAME 7002929

FRAME 7002929

1 7002929

  • 7002929 - FRAME

2 6694027

  • 6694027 - BOLT FLANGE
  • Was 6695569

3 6694272

  • 6694272 - BEARING NEEDLE

4 7002694

  • 7002694 - SUPPORT

5 6694027

  • 6694027 - BOLT FLANGE

6 6695127

  • 6695127 - SPACER

7 6695128

  • 6695128 - GROMMET

8 6693977

  • 6693977 - BOLT

9 6694024

  • 6694024 - BOLT FLANGE

10 7002408

  • 7002408 - HOLDER
  • SPRING

11 6694024

  • 6694024 - BOLT FLANGE

12 6695194

  • 6695194 - SPRING
  • PEDAL CLUTCH

13 7002043

  • 7002043 - BRACKET
  • ALT

14 6693974

  • 6693974 - BOLT

15 7008776

  • 7008776 - COLUMN
  • STEERING ASSY
  • Ref. 16-31 - Was 7002904

16 7003411

  • 7003411 - SUPPORT
  • STEERING
  • Was 7002693

17 7002657

  • 7002657 - SHAFT

18 6694106

  • 6694106 - RING SNAP

19 6695461

  • 6695461 - BEARING BALL

20 6696492

  • 6696492 - RING SNAP

21 7002413

  • 7002413 - SHAFT
  • STEERING

22 6696384

  • 6696384 - PIN SPRING

23 6694110

  • 6694110 - RING SNAP

24 6696537

  • 6696537 - BUSHING
  • RUBBER

25 7008777

  • 7008777 - COLUMN
  • STEERING ASSY
  • Was 7002905

26 6696543

  • 6696543 - BUSHING
  • RUBBER

27 6696414

  • 6696414 - PLATE

28 6697053

  • 6697053 - BOLT

29 7002502

  • 7002502 - BRACKET

30 7002038

  • 7002038 - SHAFT
  • ADJUSTER

31 6693980

  • 6693980 - BOLT

32 6693979

  • 6693979 - BOLT

33 6696033

  • 6696033 - LEVER
  • TILT

34 7002903

  • 7002903 - LEVER
  • TILT

35 7002624

  • 7002624 - PLATE

36 7002447

  • 7002447 - BOLT
  • WASHER

37 6696214

  • 6696214 - ROD
  • TILT

38 6697774

  • 6697774 - WASHER

39 6694211

  • 6694211 - PIN
  • SNAP

40 7002436

  • 7002436 - PEDAL
  • TILT

41 6696742

  • 6696742 - SPRING

42 6697780

  • 6697780 - WASHER

43 6694212

  • 6694212 - PIN SNAP

44 6697060

  • 6697060 - BOLT

45 7002518

  • 7002518 - BRACKET

46 6693968

  • 6693968 - BOLT

47 7002542

  • 7002542 - COVER

48 7002932

  • 7002932 - SEAL

49 7008775

  • 7008775 - BRACKET PTO

50 6694027

  • 6694027 - BOLT FLANGE
