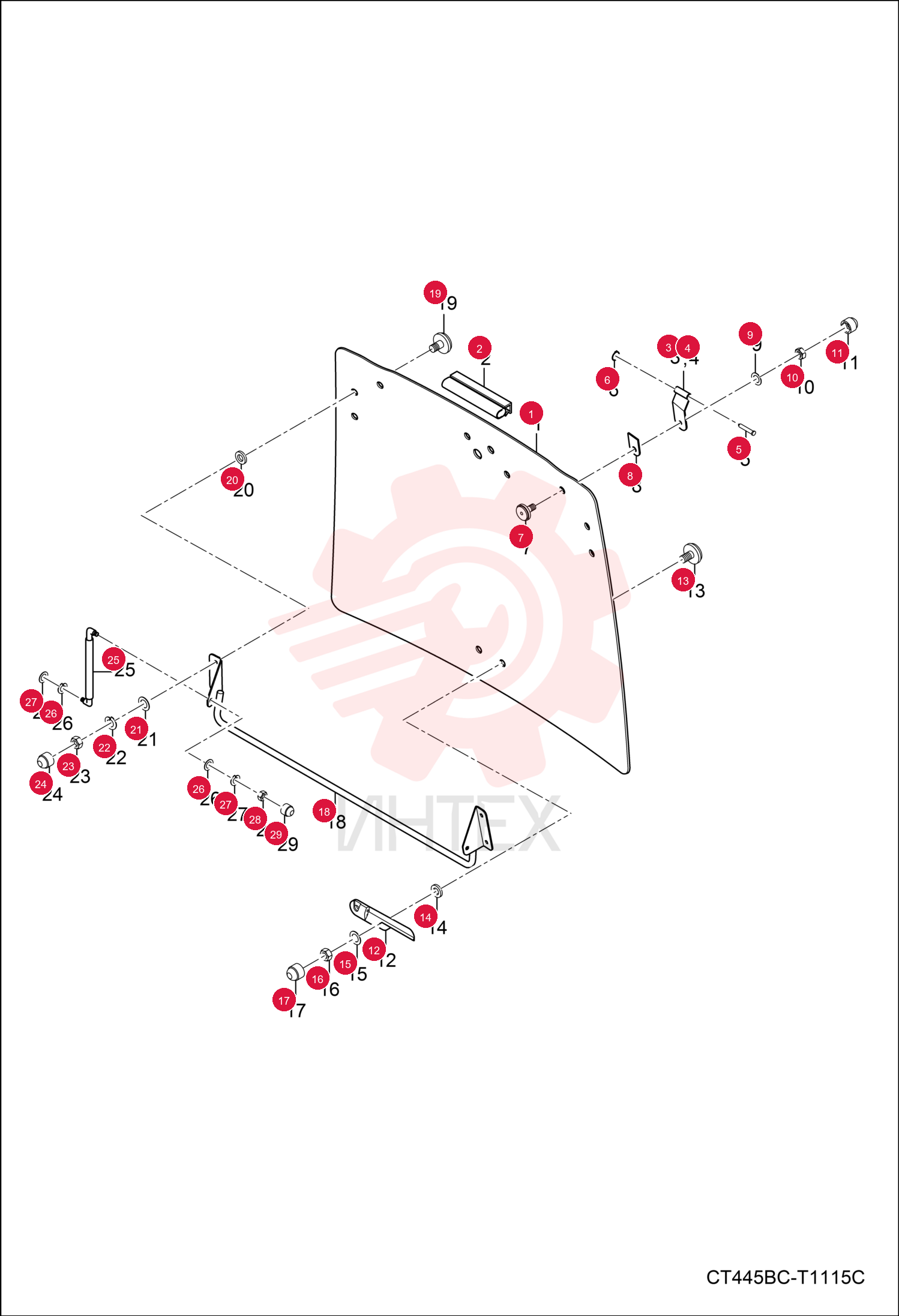

PLUG 6648391

PLUG 6648391

PLUG 6648391

1 6648391

  • 6648391 - PLUG
  • 1.2" dia.

2 6679966

  • 6679966 - PLUG
  • .75" dia.

3 7003156

  • 7003156 - WINDOW
  • CAB REAR
  • Also order plugs 6679966 (3) & 6648391 if no rear wiper option

4 7003172

  • 7003172 - SEAL
  • RUBBER

5 7003273

  • 7003273 - HINGE
  • WINDOW

6 7003274

  • 7003274 - HINGE
  • WINDOW

7 7003211

  • 7003211 - PIN
  • JOINT

8 6694120

  • 6694120 - RING SNAP

9 7003233

  • 7003233 - BOLT
  • CUSHION

10 7003245

  • 7003245 - GASKET

11 6697774

  • 6697774 - WASHER

12 6652792

  • 6652792 - NUT
  • Was 6694053

13 6695694

  • 6695694 - CAP
  • NUT

14 7003230

  • 7003230 - HANDLE
  • GRIP

15 7003234

  • 7003234 - BOLT
  • CUSHION

16 7003228

  • 7003228 - WASHER
  • CUSHION

17 6697774

  • 6697774 - WASHER

18 6652792

  • 6652792 - NUT
  • Was 6694053

19 6695694

  • 6695694 - CAP
  • NUT

20 7003402

  • 7003402 - BRACKET

21 7003233

  • 7003233 - BOLT
  • CUSHION

22 7003228

  • 7003228 - WASHER
  • CUSHION

23 6697774

  • 6697774 - WASHER

24 6697775

  • 6697775 - WASHER SPRING

25 6652792

  • 6652792 - NUT
  • Was 6694053

26 6695694

  • 6695694 - CAP
  • NUT

27 7003283

  • 7003283 - GAS SPRING

28 6697774

  • 6697774 - WASHER

29 6697775

  • 6697775 - WASHER SPRING

30 6652792

  • 6652792 - NUT
  • Was 6694053

31 6695694

  • 6695694 - CAP
  • NUT
