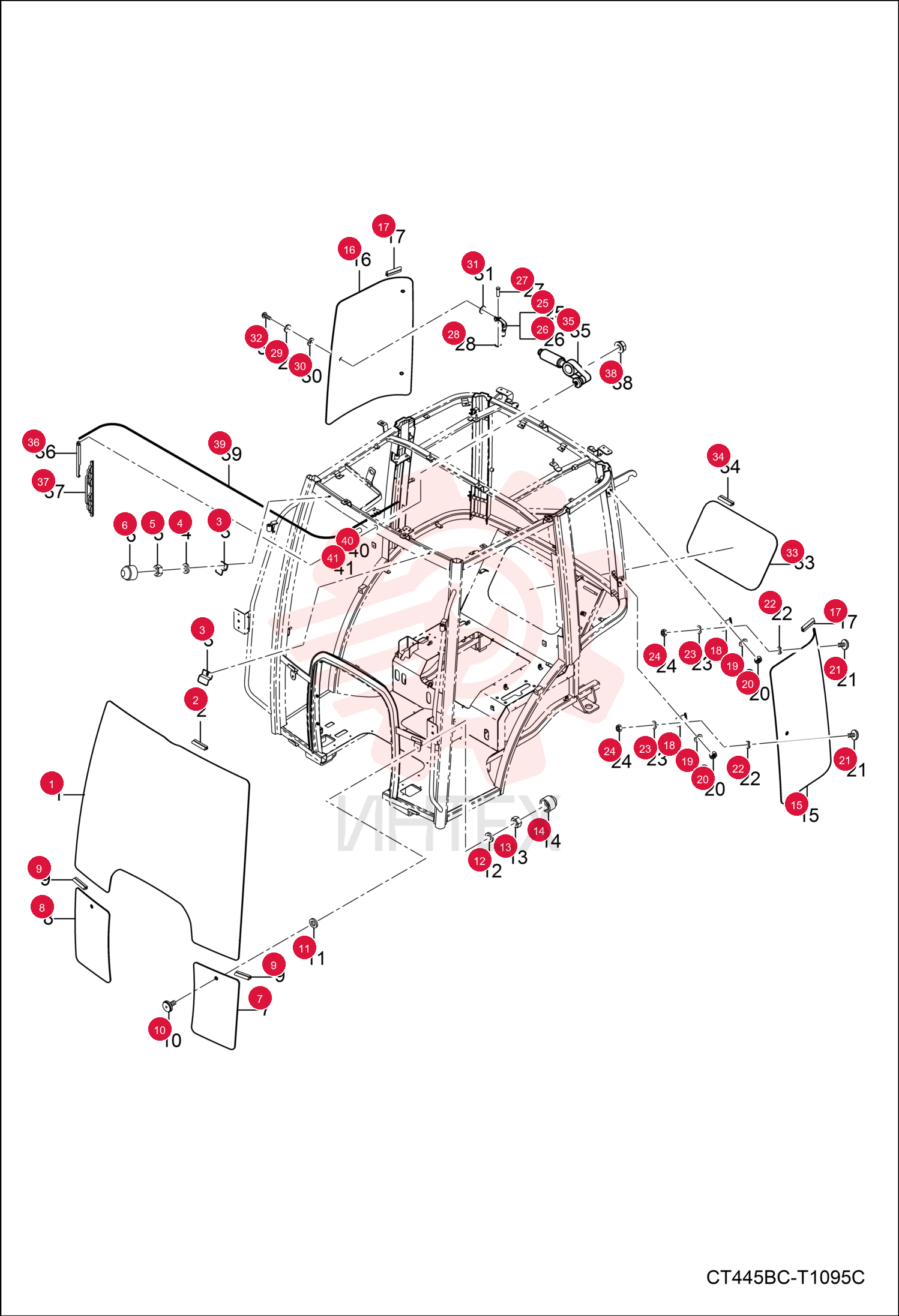

WINDOW, CAB FRONT 7003149

WINDOW, CAB FRONT 7003149

WINDOW, CAB FRONT 7003149

1 7003149

  • 7003149 - WINDOW
  • CAB FRONT

2 7003167

  • 7003167 - SEAL
  • RUBBER

3 7003244

  • 7003244 - BRACKET

4 6697779

  • 6697779 - WASHER

5 6694040

  • 6694040 - NUT

6 7003239

  • 7003239 - CAP
  • NUT

7 7003150

  • 7003150 - WINDOW
  • FRONT LOWER LH

8 7003151

  • 7003151 - WINDOW
  • FRONT LOWER RH

9 7003168

  • 7003168 - SEAL
  • RUBBER

10 7003233

  • 7003233 - BOLT
  • CUSHION

11 7003228

  • 7003228 - WASHER
  • CUSHION

12 6697774

  • 6697774 - WASHER

13 6652792

  • 6652792 - NUT
  • Was 6694053

14 6695694

  • 6695694 - CAP
  • NUT

15 7003154

  • 7003154 - WINDOW
  • CAB HINGED

16 7003155

  • 7003155 - WINDOW
  • CAB HINGED

17 7003170

  • 7003170 - SEAL
  • RUBBER

18 7003195

  • 7003195 - HINGE
  • WINDOW

19 6697774

  • 6697774 - WASHER

20 6652792

  • 6652792 - NUT
  • Was 6694053

21 7003233

  • 7003233 - BOLT
  • CUSHION

22 7003228

  • 7003228 - WASHER
  • CUSHION

23 6697774

  • 6697774 - WASHER

24 6652792

  • 6652792 - NUT
  • Was 6694053

25 7003317

  • 7003317 - HANDLE
  • GRIP
  • LH

26 7003318

  • 7003318 - HANDLE
  • GRIP
  • RH

27 7003305

  • 7003305 - PIN
  • JOINT

28 6694119

  • 6694119 - RING SNAP

29 7021062

  • 7021062 - WASHER
  • Was 7003306

30 7003307

  • 7003307 - WASHER
  • CUSHION

31 7003308

  • 7003308 - WASHER
  • CUSHION

32 7003042

  • 7003042 - SCREW

33 7003157

  • 7003157 - WINDOW
  • REAR LOWER

34 7003171

  • 7003171 - SEAL
  • RUBBER

35 7003297

  • 7003297 - MOTOR
  • WIPER

36 7003268

  • 7003268 - ARM
  • WIPER

37 7003282

  • 7003282 - BLADE
  • WIPER

38 6694062

  • 6694062 - NUT FLANGE

39 7003299

  • 7003299 - HOSE
  • RUBBER

40 7003240

  • 7003240 - CAP
  • RUBBER

41 7003241

  • 7003241 - GROMMET
