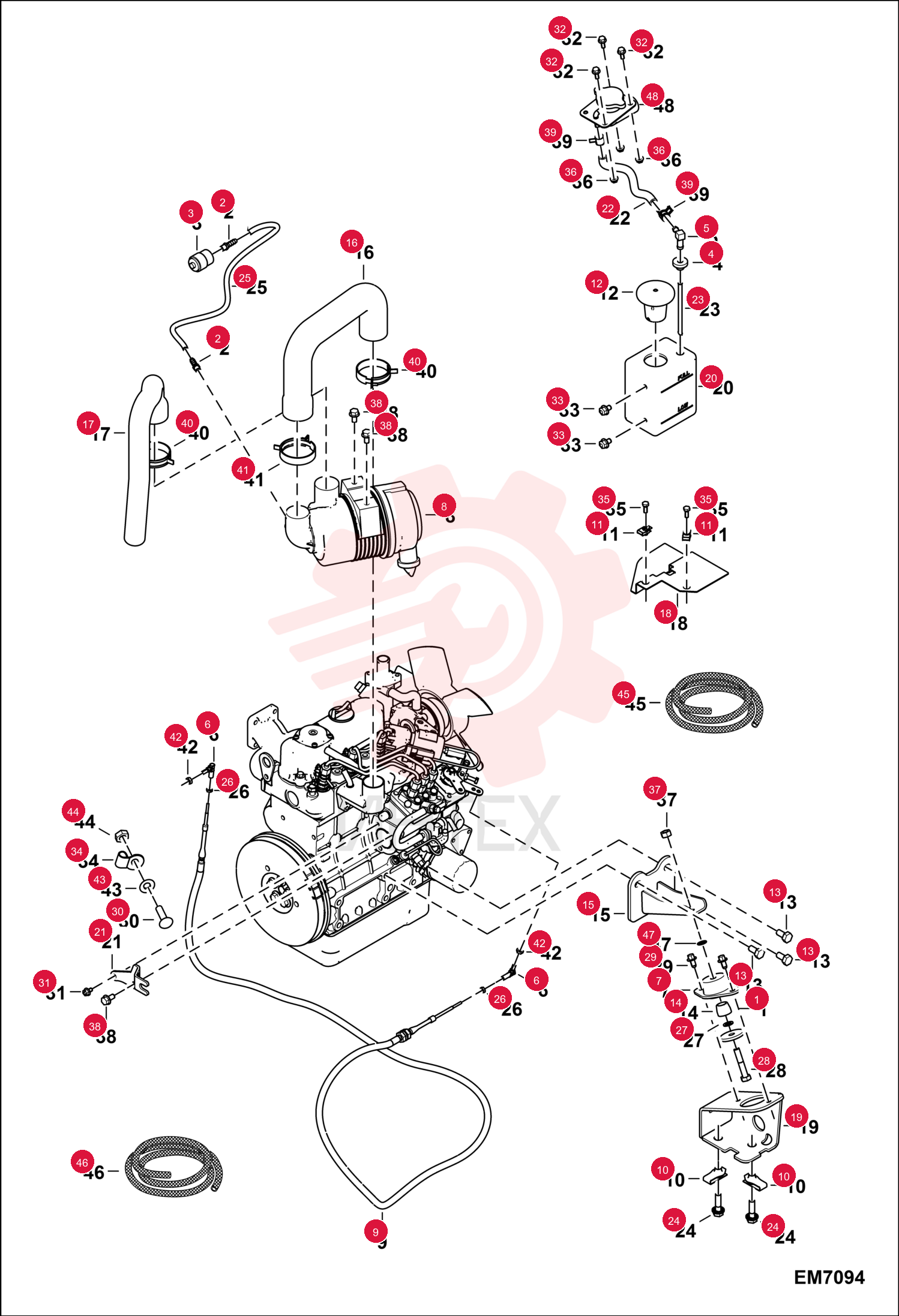

WASHER 872229 (6)

WASHER 872229 (6)

WASHER 872229 (6)

1 872229

  • 872229 - WASHER

2 6505813

  • 6505813 - ADAPTER

3 6515007

  • 6515007 - IND GAUGE AIR FILTER

4 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

5 6553412

  • 6553412 - ELBOW

6 6644965

  • 6644965 - BALL JOINT

7 6653764

  • 6653764 - MOUNT

8 6675529

  • 6675529 - FILTER
  • AIR

9 6675668

  • 6675668 - CABLE
  • THROTTLE

10 6675722

  • 6675722 - NUT

11 6676026

  • 6676026 - NUT

12 7257668

  • 7257668 - CAP
  • OVERFLOW COOLANT

13 6733378

  • 6733378 - SCREW FL THD CAP

14 6804522

  • 6804522 - SPACER

15 7116317

  • 7116317 - MOUNT ASSY
  • ENGINE

16 7145661

  • 7145661 - HOSE AIRCLEANER

17 7145664

  • 7145664 - HOSE AIRSUCTION

18 7146624

  • 7146624 - APRON FAN

19 7147324

  • 7147324 - MOUNT ENGINE

20 7151690

  • 7151690 - TANK COOLANT RECOV

21 7282436

  • 7282436 - HOLDER
  • THROTTLE

22 7153053

  • 7153053 - TUBE COOLANT RECV

23 7159236

  • 7159236 - BOLT

24 14D10

  • 14D10 - NUT HEX MACH SCREW

25 15EM100

  • 15EM100 - WASHER

26 1CM1055

  • 1CM1055 - BOLT

27 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

28 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

29 29CM610

  • 29CM610 - BOLT

30 29CM616

  • 29CM616 - SCREW FLGD HEX CAP

31 29CM812

  • 29CM812 - BOLT

32 30H22

  • 30H22 - CLIP INSULATED

33 1CM616

  • 1CM616 - SCREW HEX CAP

34 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

35 53DM10

  • 53DM10 - NUT HX THDLK PREAPPL

36 59CM816

  • 59CM816 - BOLT

37 5HM13

  • 5HM13 - CLAMP CT HOSE

38 5HM55

  • 5HM55 - CLAMP

39 5HM58

  • 5HM58 - CLAMP

40 8D4

  • 8D4 - NUT

41 6675859

  • 6675859 - RETAINER

42 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

43 6577822

  • 6577822 - HOSE BULK
  • sold per meter

44 6557720

  • 6557720 - HOSE BULK
  • sold per meter

45 54K20008

  • 54K20008 - O-RING

46 7363842

  • 7363842 - COOLANT FILLER CAP
  • Was 7000508
