Bobcat
/
E17
/

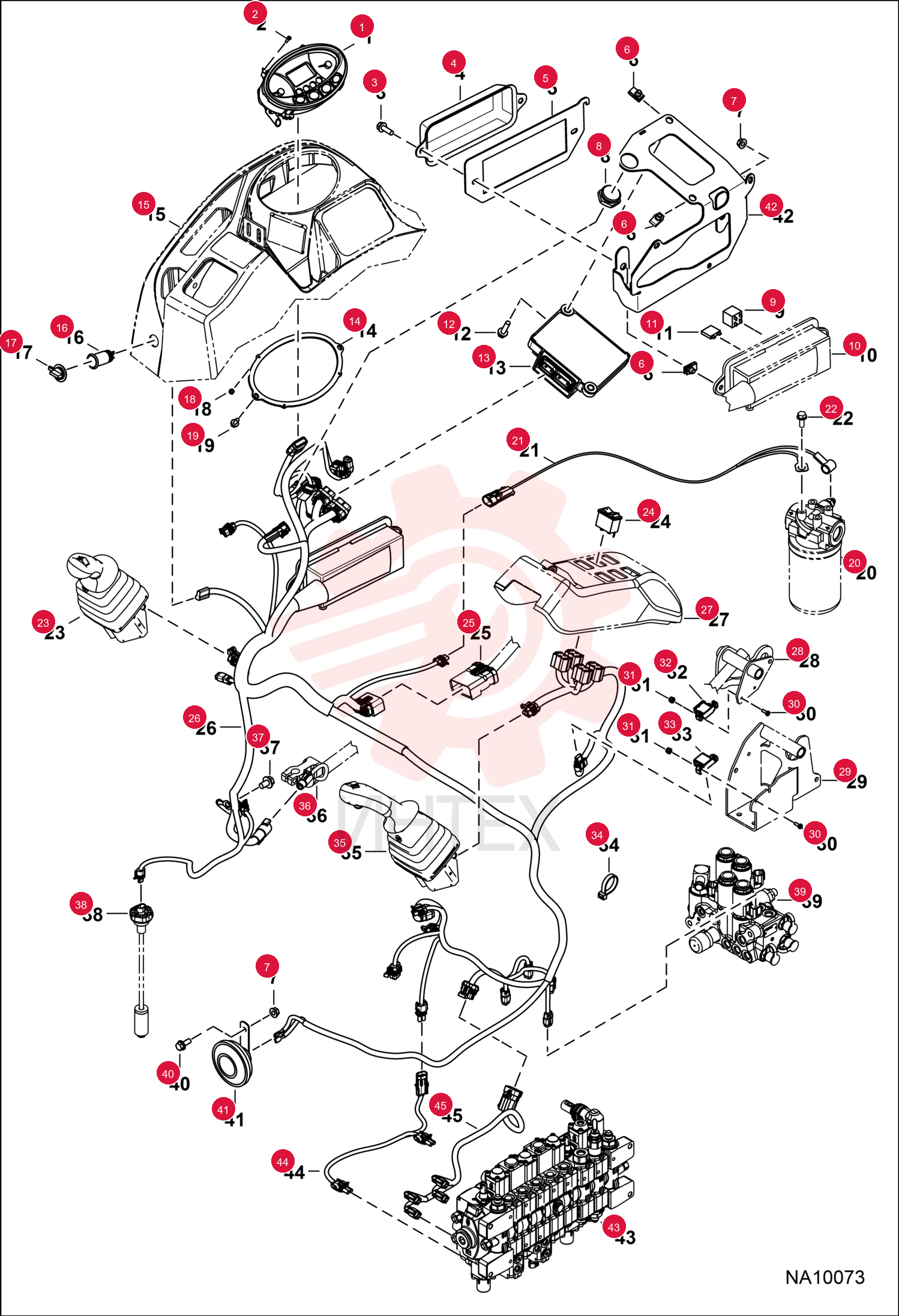

PANEL, INSTRUMENT 7217826 (3)

PANEL, INSTRUMENT 7217826 (3)

PANEL, INSTRUMENT 7217826 (3)

1 7217826

  • 7217826 - PANEL
  • INSTRUMENT
  • manual controls

2 27CM312

  • 27CM312 - SCREW

3 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

4 6716621

  • 6716621 - COVER
  • FUSE

5 7223778

  • 7223778 - COVER
  • FUSE BOX

6 6676169

  • 6676169 - NUT

7 43DM8

  • 43DM8 - NUT FLANGED HEX

8 6675705

  • 6675705 - ALARM

9 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

10 7155390

  • 7155390 - HOUSING
  • FUSE RELAY

11 6702444

  • 6702444 - FUSE 25A 5

12 6654806

  • 6654806 - FUSE
  • 15A

13 6654805

  • 6654805 - FUSE 10A

14 6663289

  • 6663289 - FUSE
  • 5A

15 6625575

  • 6625575 - FUSE
  • 20A

16 29CM830

  • 29CM830 - SCREW HEX

17 7260940

  • 7260940 - CONTROLLER GATEWAY
  • Was 7024906

18 7218019

  • 7218019 - PLATE
  • DASHBOARD

19 6664223

  • 6664223 - OUTLET ELECTRICAL

20 6664224

  • 6664224 - CAP

21 7171265

  • 7171265 - NUT HEX LOCKING M3
  • Was 16DM3

22 29CM612

  • 29CM612 - BOLT
  • FLANGED

23 7198838

  • 7198838 - HARNESS
  • SWITCH

24 35C610

  • 35C610 - BOLT 5

25 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

26 6674025

  • 6674025 - SWITCH
  • blade lock/track expansion

27 7244548

  • 7244548 - HARNESS
  • FRAME
  • W/Ref. 3-6 & 9-11

28 7165562

  • 7165562 - COVER
  • LH

29 7215320

  • 7215320 - HANDLE

30 7334529

  • 7334529 - HOLDER CONSOLE
  • - Was 7224007

31 87G808

  • 87G808 - SCREW

32 50D8

  • 50D8 - NUT

33 6680428

  • 6680428 - SENSOR

34 6680427

  • 6680427 - SENSOR
  • lockout

35 6624289

  • 6624289 - STRAP
  • TIE

36 7220731

  • 7220731 - JOYSTICK
  • LH
  • - manual controls

37 7217814

  • 7217814 - CABLE
  • POSITIVE

38 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

39 7287030

  • 7287030 - SENSOR
  • FUEL
  • Was 7179838

40 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

41 6671106

  • 6671106 - ALARM

42 7218030

  • 7218030 - HOLDER
  • FUSE

43 7217804

  • 7217804 - HARNESS
  • SWITCH
