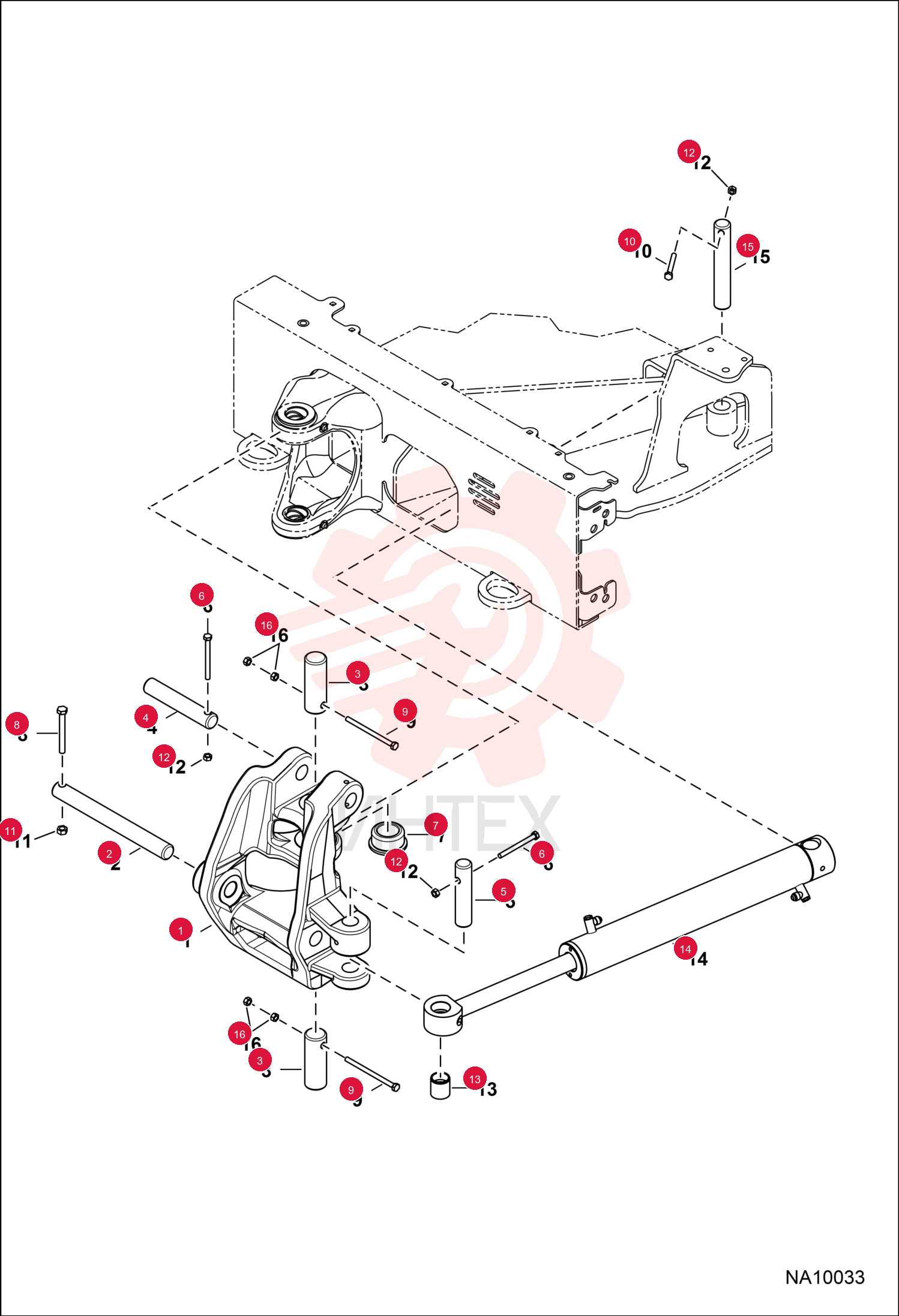

SWING BOOM 7301010 (3)

SWING BOOM 7301010 (3)

SWING BOOM 7301010 (3)

1 7301010

  • 7301010 - SWING BOOM
  • Was 7219311

2 7174877

  • 7174877 - PIN

3 7174878

  • 7174878 - PIN

4 7174879

  • 7174879 - PIN

5 7174880

  • 7174880 - PIN

6 1CM885

  • 1CM885 - BOLT

7 7175784

  • 7175784 - INSERT

8 1CM1090

  • 1CM1090 - SCREW HEX CAP

9 1CM8120

  • 1CM8120 - SCREW

10 1CM855

  • 1CM855 - BOLT

11 16DM10

  • 16DM10 - NUT

12 16DM8

  • 16DM8 - NUT

13 6804060

  • 6804060 - BUSHING

14 7183783

  • 7183783 - PIN

15 4DM8

  • 4DM8 - NUT HEX
