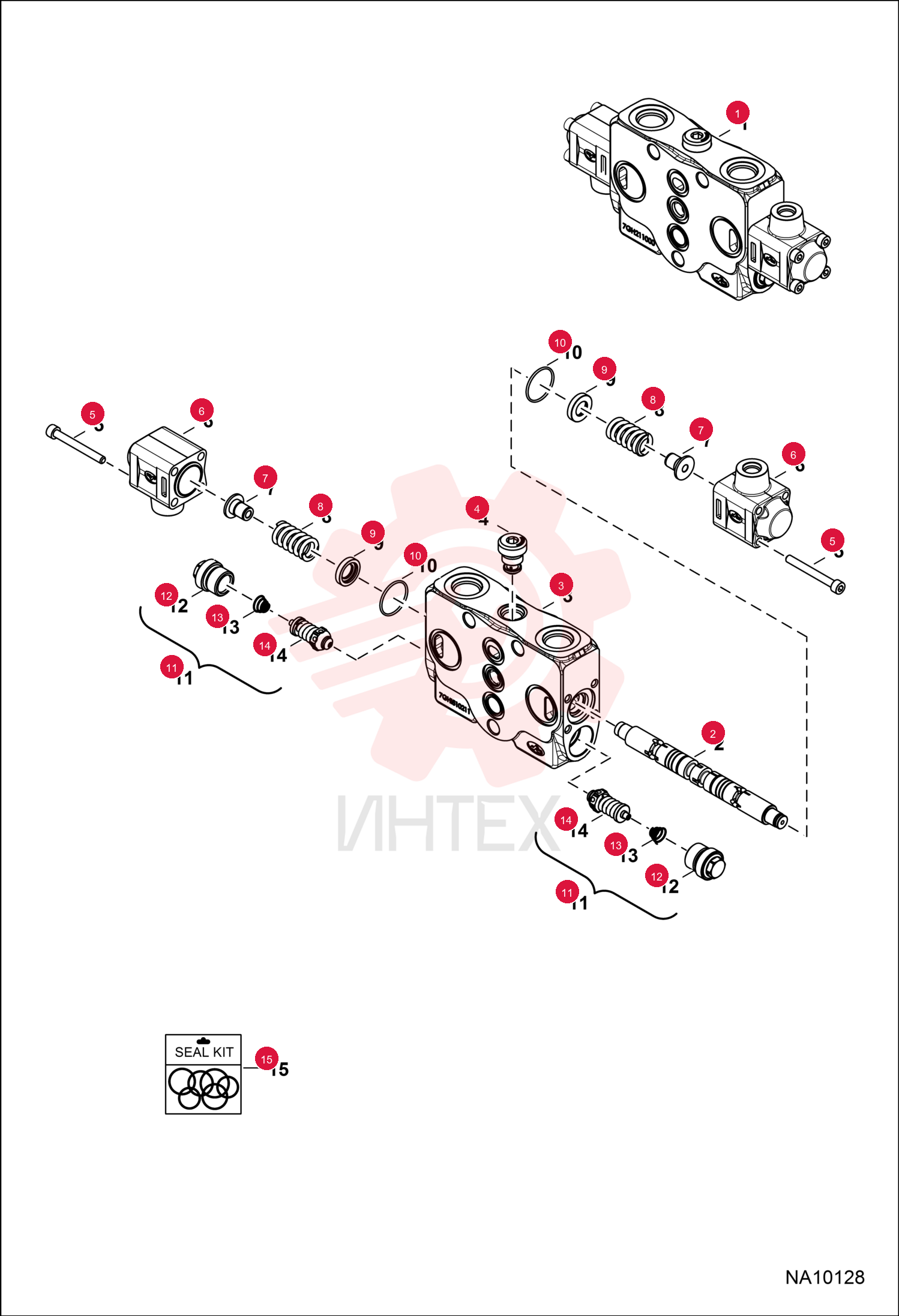

SECTION, VALVE 7259695 (3)

SECTION, VALVE 7259695 (3)

SECTION, VALVE 7259695 (3)

1 7259695

  • 7259695 - SECTION
  • VALVE
  • Ref. 2-14

2 7259685

  • 7259685 - SPOOL

3 6693128

  • 6693128 - KIT
  • Was 7259682

4 6680092

  • 6680092 - VALVE
  • LOCK LOAD

5 7259661

  • 7259661 - SCREW

6 7259691

  • 7259691 - CAP
  • END

7 7015361

  • 7015361 - BUSHING

8 7015362

  • 7015362 - SPRING

9 7015363

  • 7015363 - BUSHING

10 6693137

  • 6693137 - KIT
  • VALVE
  • Ref. 12-14

11 6686241

  • 6686241 - PLUG

12 7015357

  • 7015357 - SPRING

13 7015364

  • 7015364 - SPOOL

14 7259704

  • 7259704 - KIT
  • SEAL
