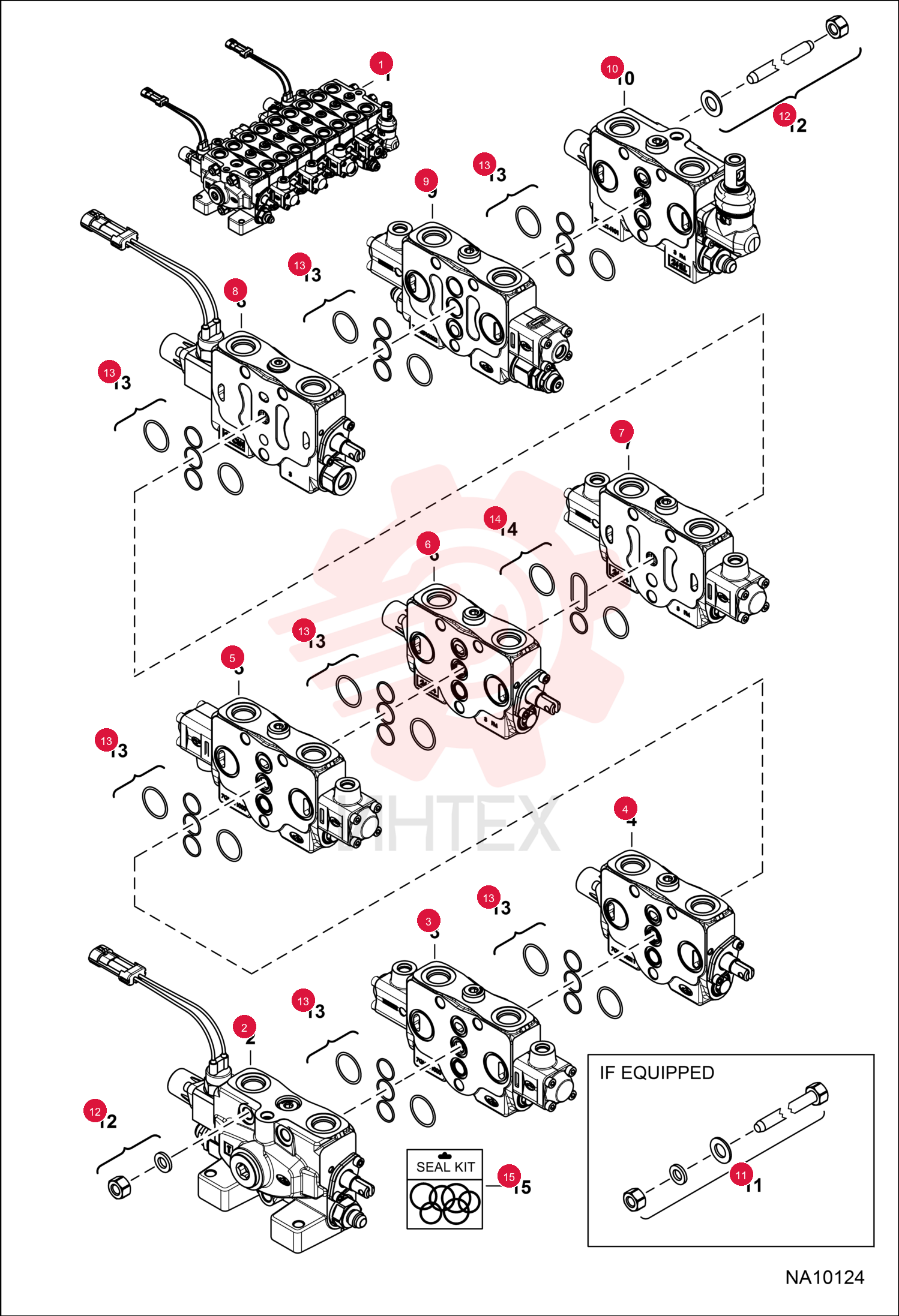

VALVE, CONTROL 7024225

VALVE, CONTROL 7024225

VALVE, CONTROL 7024225

1 7024225

  • 7024225 - VALVE
  • CONTROL
  • Ref. 2-10

2 7354140

  • 7354140 - VALVE CONTROL
  • Ref. 2-10

3 7259692

  • 7259692 - SECTION
  • VALVE
  • - RH travel - Use W/Ref. 1 (7024225 valve)

4 7362816

  • 7362816 - SECTION VALVE CONTROL
  • - RH travel - Use W/Ref. 1 (7354140 valve)

5 7259693

  • 7259693 - SECTION
  • VALVE
  • - arm

6 7259694

  • 7259694 - SECTION
  • VALVE
  • - boom swing offset

7 7259695

  • 7259695 - SECTION
  • VALVE
  • - bucket

8 7259696

  • 7259696 - SECTION
  • VALVE
  • - auxiliary

9 7259697

  • 7259697 - SECTION
  • VALVE
  • - boom - Use W/Ref. 1 (7024225 valve)

10 7319371

  • 7319371 - VALVE SECTION
  • - boom - Use W/Ref. 1 (7354140 valve)

11 7259698

  • 7259698 - SECTION
  • VALVE
  • - LH travel

12 7259699

  • 7259699 - SECTION
  • VALVE
  • - slew

13 7259700

  • 7259700 - SECTION
  • VALVE
  • - blade

14 7259726

  • 7259726 - ROD
  • TIE

15 6680066

  • 6680066 - KIT
  • SEAL

16 6680064

  • 6680064 - KIT
  • SEAL

17 7259752

  • 7259752 - KIT
  • SEAL
  • complete - Use W/Ref. 1 (7024225 valve)

18 7369080

  • 7369080 - KIT SEAL
  • complete - Use W/Ref. 1 (7354140 valve)
