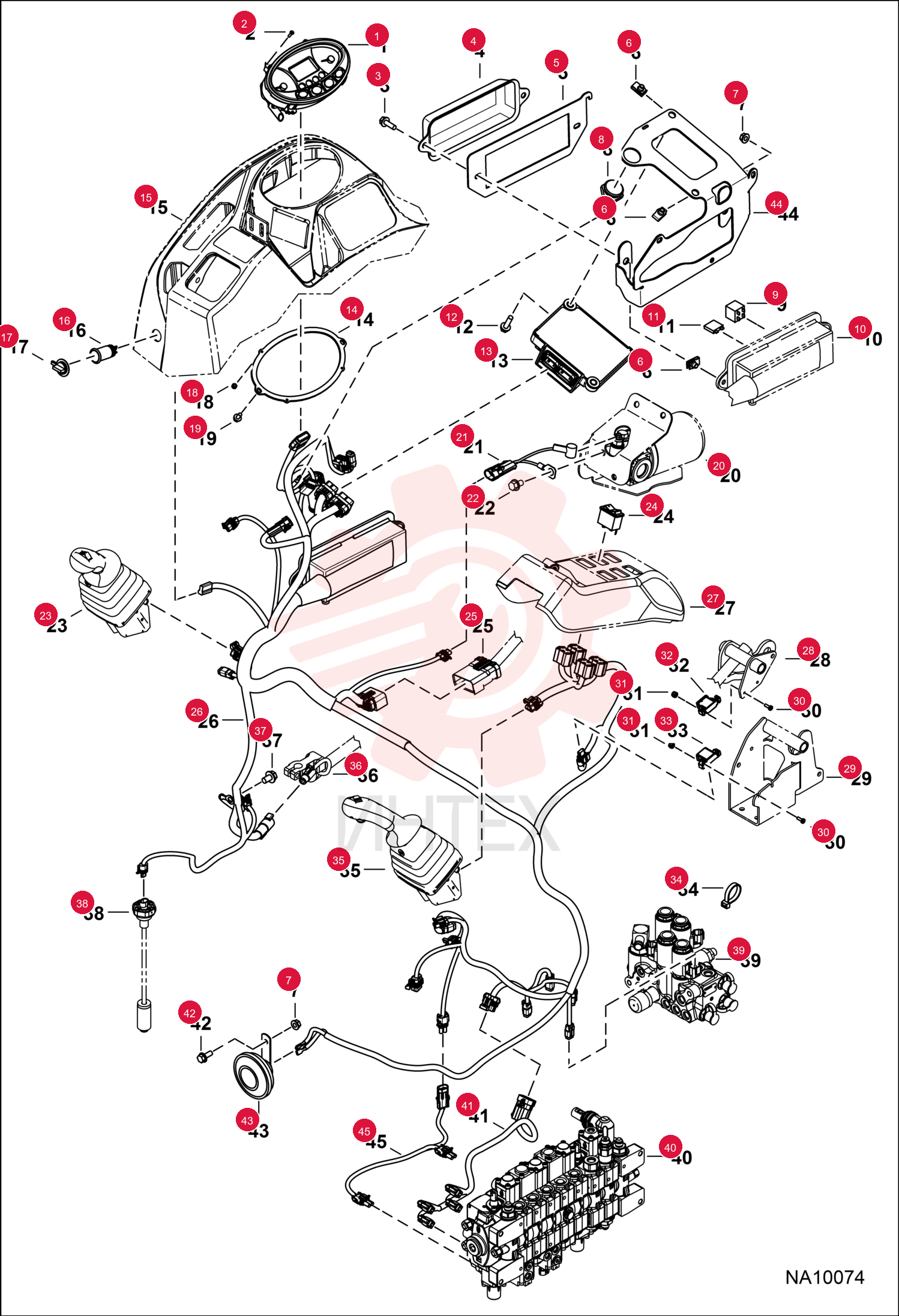

DISPLAY, STD 7023784

DISPLAY, STD 7023784

DISPLAY, STD 7023784

1 7023784

  • 7023784 - DISPLAY
  • STD
  • electric hydraulic controls

2 7217826

  • 7217826 - PANEL
  • INSTRUMENT
  • manual controls

3 27CM312

  • 27CM312 - SCREW

4 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

5 6716621

  • 6716621 - COVER
  • FUSE

6 7223778

  • 7223778 - COVER
  • FUSE BOX

7 6676169

  • 6676169 - NUT

8 43DM8

  • 43DM8 - NUT FLANGED HEX

9 6675705

  • 6675705 - ALARM

10 6679820

  • 6679820 - SWITCH
  • RELAY MAGNETIC

11 7155390

  • 7155390 - HOUSING
  • FUSE RELAY

12 6702444

  • 6702444 - FUSE 25A 5

13 6625575

  • 6625575 - FUSE
  • 20A

14 6654806

  • 6654806 - FUSE
  • 15A

15 6654805

  • 6654805 - FUSE 10A

16 6663289

  • 6663289 - FUSE
  • 5A

17 29CM830

  • 29CM830 - SCREW HEX

18 7260940

  • 7260940 - CONTROLLER GATEWAY
  • Was 7024906

19 7218019

  • 7218019 - PLATE
  • DASHBOARD

20 6664223

  • 6664223 - OUTLET ELECTRICAL

21 6664224

  • 6664224 - CAP

22 7171265

  • 7171265 - NUT HEX LOCKING M3
  • Was 16DM3

23 29CM612

  • 29CM612 - BOLT
  • FLANGED

24 7198838

  • 7198838 - HARNESS
  • SWITCH

25 35C610

  • 35C610 - BOLT 5

26 7024441

  • 7024441 - JOYSTICK
  • RH ASSY
  • - EH controls

27 7220730

  • 7220730 - JOYSTICK
  • RH
  • - manual controls

28 6674025

  • 6674025 - SWITCH
  • blade lock/track expansion

29 7244548

  • 7244548 - HARNESS
  • FRAME

30 87G808

  • 87G808 - SCREW

31 50D8

  • 50D8 - NUT

32 6680428

  • 6680428 - SENSOR

33 6680427

  • 6680427 - SENSOR
  • lockout

34 6624289

  • 6624289 - STRAP
  • TIE

35 7024440

  • 7024440 - JOYSTICK
  • LH ASSY
  • - EH controls

36 7220731

  • 7220731 - JOYSTICK
  • LH
  • - manual controls

37 29CM1016

  • 29CM1016 - SCREW FLANGE HEX CAP

38 7243646

  • 7243646 - HARNESS
  • CONTROL EH
  • if equipped - EH

39 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

40 6671106

  • 6671106 - ALARM

41 7218030

  • 7218030 - HOLDER
  • FUSE

42 7217804

  • 7217804 - HARNESS
  • SWITCH
