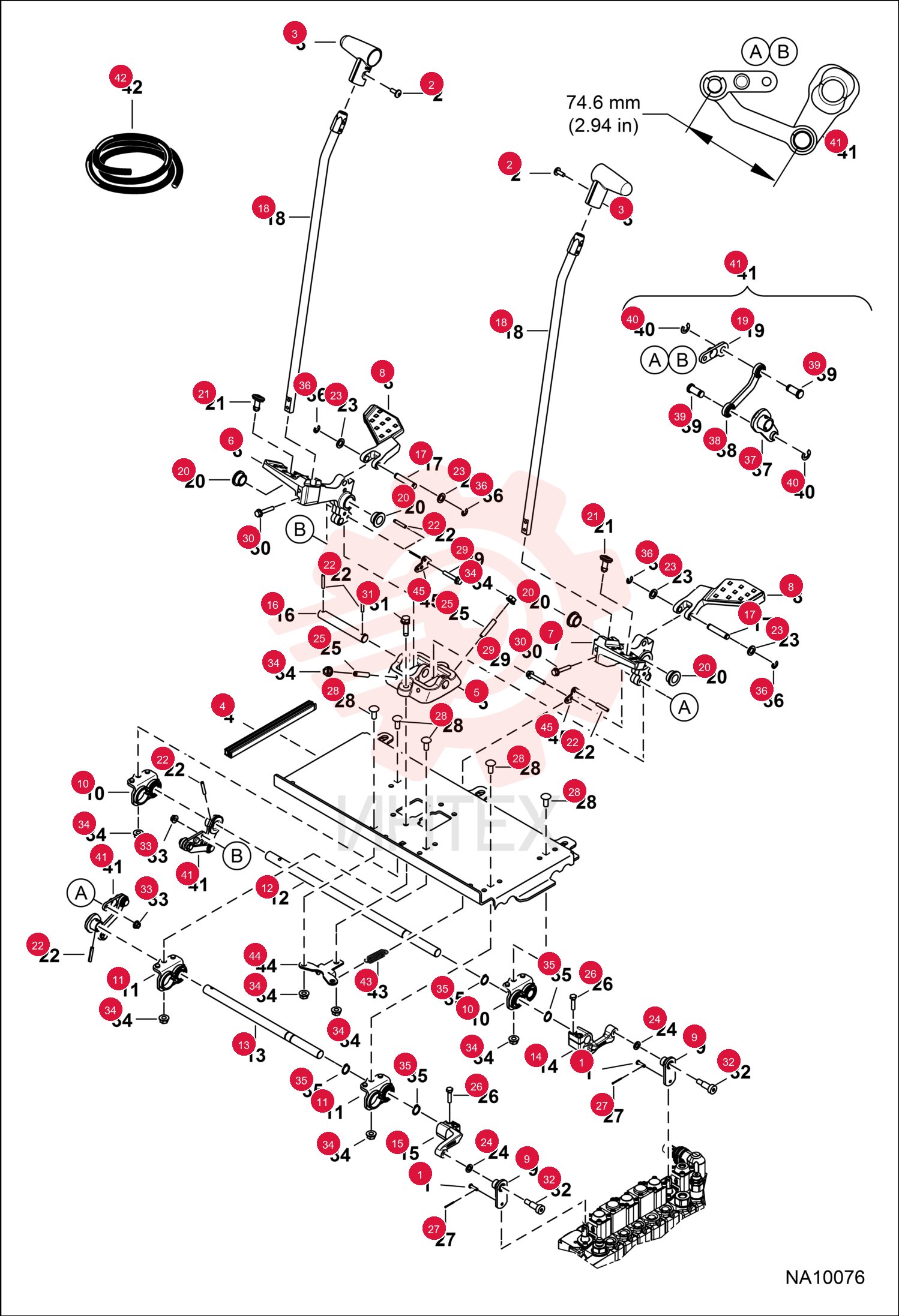

PIN 6801068 (2)

PIN 6801068 (2)

PIN 6801068 (2)

1 6801068

  • 6801068 - PIN

2 6803202

  • 6803202 - SCREW

3 7163788

  • 7163788 - HANDLE
  • LEVER CONTROL

4 7228829

  • 7228829 - MOUNT

5 7233974

  • 7233974 - PEDAL
  • RH

6 7233976

  • 7233976 - PEDAL
  • LH

7 7233978

  • 7233978 - PEDAL
  • BACK

8 7234338

  • 7234338 - LINK
  • SPOOL

9 7234339

  • 7234339 - MOUNT
  • BEARING

10 7234340

  • 7234340 - MOUNT
  • BEARING

11 7234346

  • 7234346 - SHAFT
  • LEVER

12 7234347

  • 7234347 - SHAFT

13 7234349

  • 7234349 - BELLCRANK
  • STRG

14 7234351

  • 7234351 - BELLCRANK
  • STRG

15 7240975

  • 7240975 - SHAFT
  • PEDAL

16 7240977

  • 7240977 - SHAFT
  • PEDAL

17 7240978

  • 7240978 - LEVER
  • CONTROL

18 7234341

  • 7234341 - BRACKET

19 7241974

  • 7241974 - BUSHING

20 7243677

  • 7243677 - GROMMET

21 7274126

  • 7274126 - PIN
  • ROLL
  • Was 7248060

22 15EM100

  • 15EM100 - WASHER

23 15EM80

  • 15EM80 - WASHER

24 15GM840

  • 15GM840 - SCREW
  • SET

25 1CM625

  • 1CM625 - BOLT

26 1F212

  • 1F212 - PIN

27 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

28 29CM630

  • 29CM630 - SCREW FLGD HEX CAP

29 29CM635

  • 29CM635 - BOLT

30 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

31 38CM1020

  • 38CM1020 - BOLT
  • SHOULDER

32 43DM6

  • 43DM6 - NUT FLANGED HEX

33 43DM8

  • 43DM8 - NUT FLANGED HEX

34 5JM16

  • 5JM16 - SNAPRING

35 9JM70

  • 9JM70 - RETAINER SHAFT

36 7234337

  • 7234337 - BELLCRANK

37 7234333

  • 7234333 - LINK
  • 75 mm

38 7242019

  • 7242019 - PIN

39 9JM80

  • 9JM80 - RING
  • SNAP

40 7241969

  • 7241969 - LINKAGE
  • W/Ref. 19
  • 37
  • 38
  • (2) each of Ref. 39
  • 40

41 7177959

  • 7177959 - SEAL
  • BULK BULB
  • sold per foot

42 7217943

  • 7217943 - SPRING

43 7217947

  • 7217947 - HOLDER
  • SPRING

44 7260123

  • 7260123 - BRACKET
