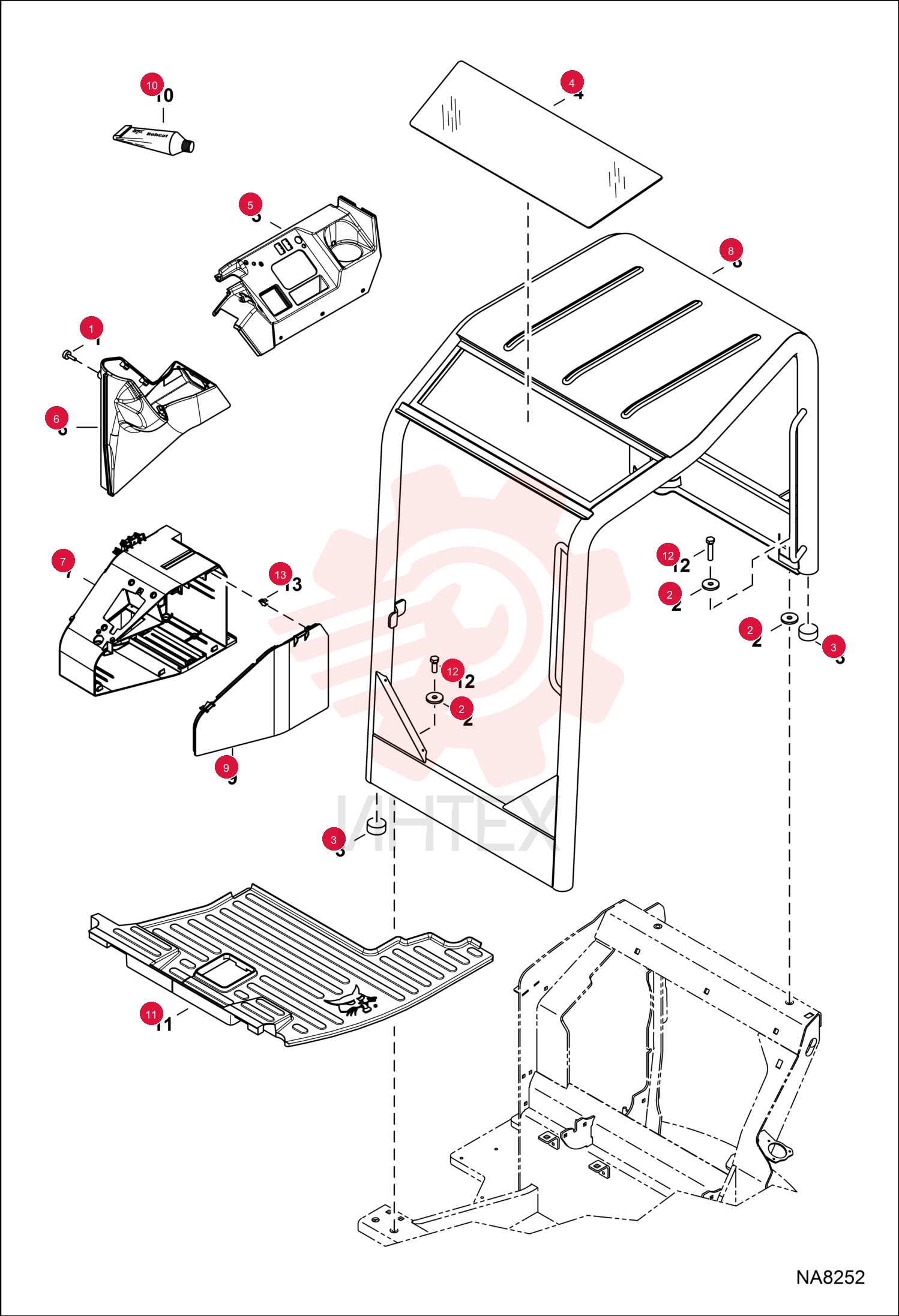

BUMPER 6655399 (3)

BUMPER 6655399 (3)

BUMPER 6655399 (3)

1 6655399

  • 6655399 - BUMPER

2 6805244

  • 6805244 - WASHER

3 6816135

  • 6816135 - INSULATION

4 7143481

  • 7143481 - WINDOW
  • CANOPY TOP

5 7208762

  • 7208762 - CONSOLE
  • RH

6 7223483

  • 7223483 - CONSOLE
  • DISPLAY
  • DLX canopy

7 7210712

  • 7210712 - CONSOLE
  • CANOPY

8 7222770

  • 7222770 - HOUSING
  • BASE

9 6990467ENUS

  • 6990467ENUS - INSTRUCTIONS
  • Was 6990467

10 7240694

  • 7240694 - KIT
  • CANOPY
  • Includes decals and 6990467 instruction

11 7229248

  • 7229248 - COVER
  • HVAC

12 7230824

  • 7230824 - ADHESIVE
  • NON-PRIMER

13 7232440

  • 7232440 - MAT
  • FLOOR CANOPY

14 7CM1440

  • 7CM1440 - BOLT

15 7165333

  • 7165333 - CLIP
