Bobcat
/
E26
/

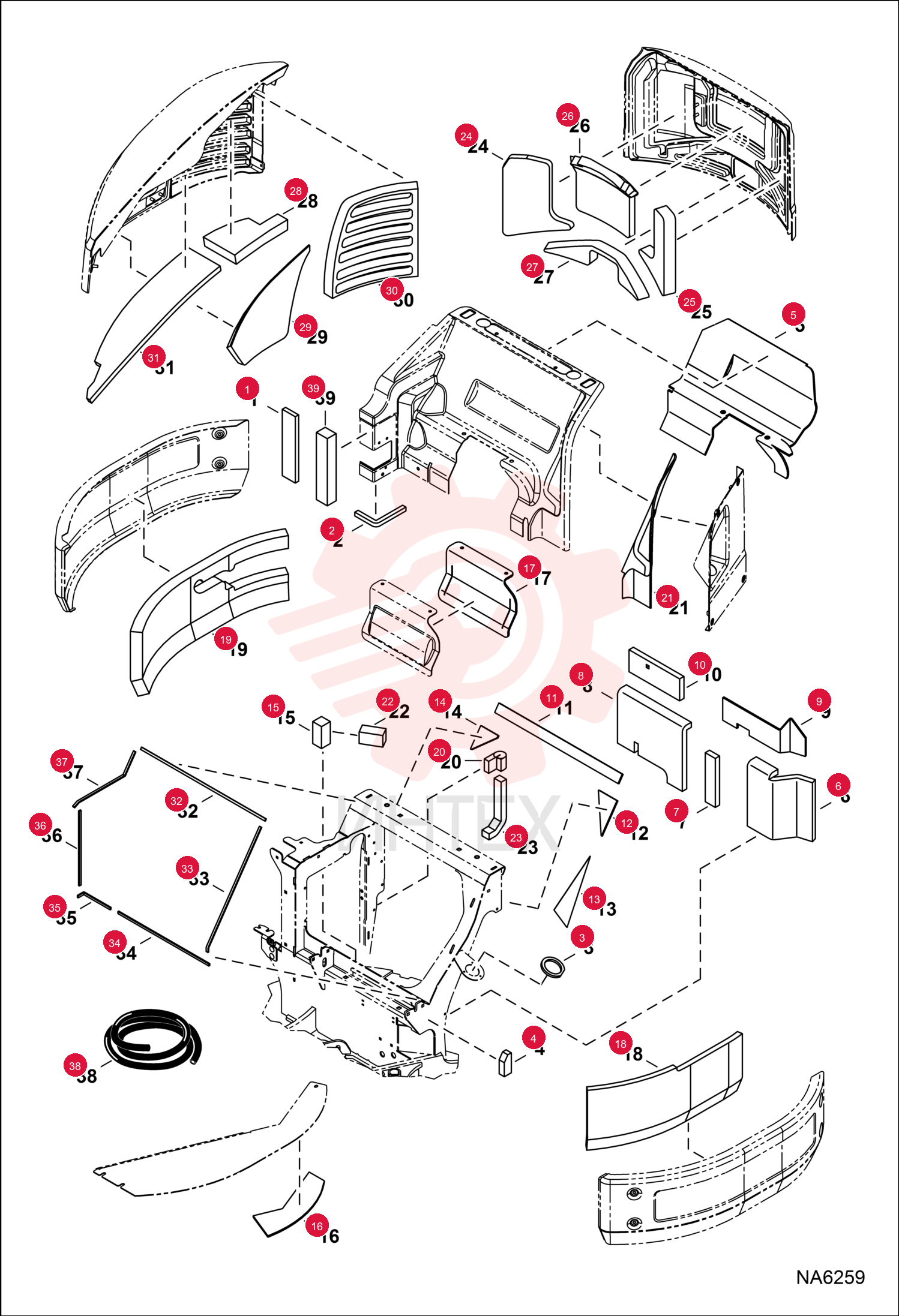

SEAL, RH PANEL 7156375 (3)

SEAL, RH PANEL 7156375 (3)

SEAL, RH PANEL 7156375 (3)

1 7156375

  • 7156375 - SEAL
  • RH PANEL

2 7175504

  • 7175504 - SEAL
  • ENG

3 7176171

  • 7176171 - INSULATION
  • PANEL LH

4 7180569

  • 7180569 - INSULATION
  • PANEL ENG

5 7180570

  • 7180570 - INSULATION
  • ENG

6 7180571

  • 7180571 - INSULATION
  • UPPERSTRUCTURE

7 7180572

  • 7180572 - INSULATION
  • UPPERSTRUCTURE

8 7180573

  • 7180573 - INSULATION
  • UPPERSTRUCTURE

9 7180574

  • 7180574 - INSULATION
  • UPPERSTRUCTURE

10 7180575

  • 7180575 - INSULATION
  • UPPERSTRUCTURE

11 7180576

  • 7180576 - INSULATION
  • UPPERSTRUCTURE

12 7180577

  • 7180577 - INSULATION
  • UPPERSTRUCTURE

13 7180578

  • 7180578 - INSULATION
  • UPPERSTRUCTURE

14 7180579

  • 7180579 - INSULATION
  • UPPERSTRUCTURE

15 7181884

  • 7181884 - INSULATION
  • BLOCK
  • if equipped

16 7185878

  • 7185878 - INSULATION
  • FLOOR

17 7185879

  • 7185879 - INSULATION
  • PANEL ENG

18 7185881

  • 7185881 - INSULATION
  • SIDE

19 7185883

  • 7185883 - INSULATION
  • RADIATOR

20 7196872

  • 7196872 - INSULATION
  • PANEL ENG

21 7196875

  • 7196875 - INSULATION
  • COUNTERWEIGHT

22 7196876

  • 7196876 - INSULATION
  • UPPERSTRUCTURE

23 7200417

  • 7200417 - INSULATION
  • DOOR REAR

24 7200418

  • 7200418 - INSULATION
  • DOOR REAR

25 7200419

  • 7200419 - INSULATION
  • DOOR REAR

26 7200420

  • 7200420 - INSULATION
  • DOOR REAR

27 7200421

  • 7200421 - INSULATION
  • COVER RH

28 7200422

  • 7200422 - INSULATION
  • COVER RH

29 7200423

  • 7200423 - INSULATION
  • COVER RH

30 7200518

  • 7200518 - INSULATION
  • COVER RH

31 7135394

  • 7135394 - SEAL BULK
  • sold per foot

32 7237649

  • 7237649 - FOAM
  • HVAC
