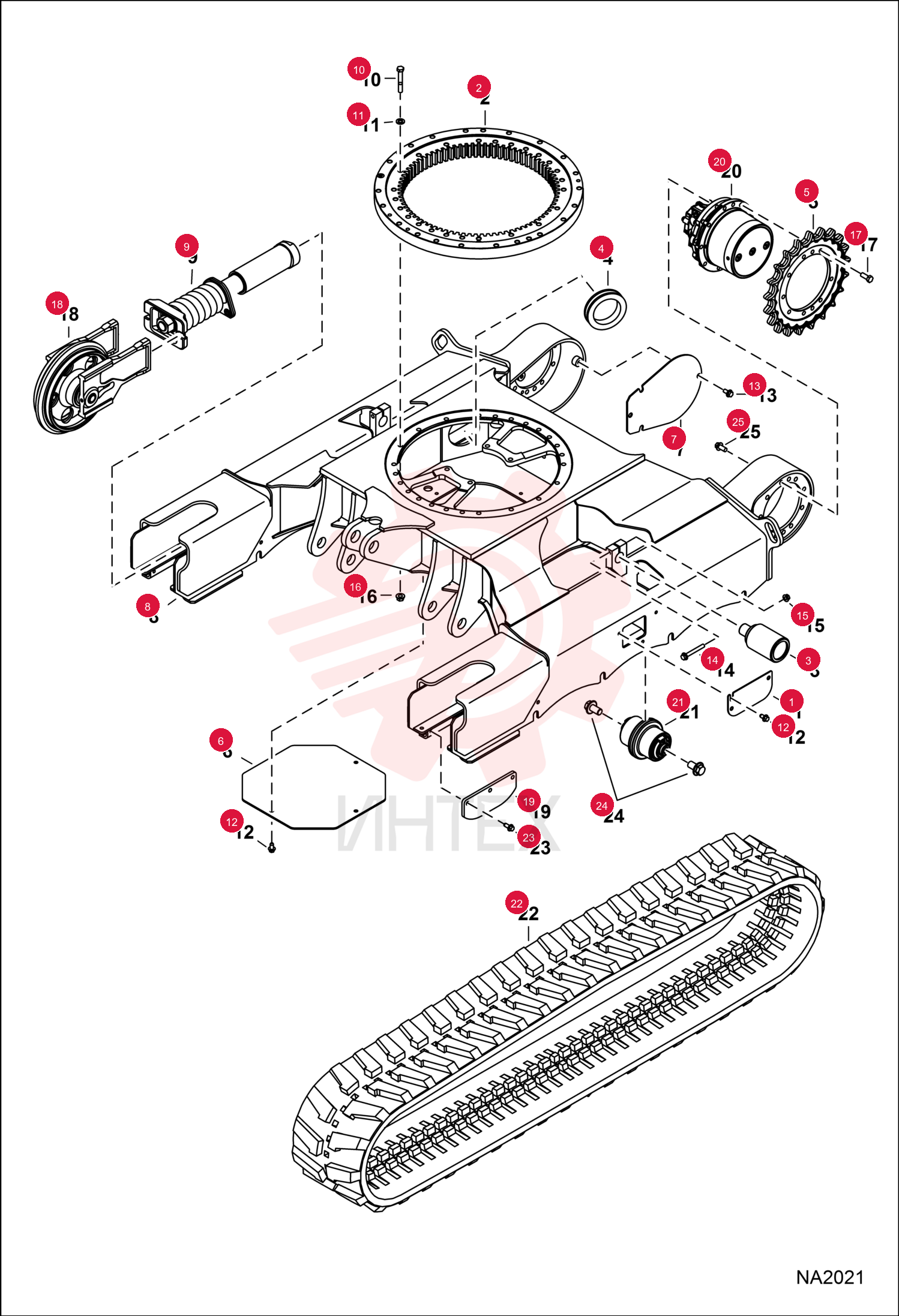

COVER 7201929 (2)

COVER 7201929 (2)

COVER 7201929 (2)

1 7201929

  • 7201929 - COVER

2 6692964

  • 6692964 - RING
  • SLEW

3 7127210

  • 7127210 - GROMMET

4 7199006

  • 7199006 - SPROCKET
  • MACHINED

5 7328146

  • 7328146 - COVER ACCESS
  • Was 7142236

6 7142237

  • 7142237 - COVER
  • MOTOR

7 7252967

  • 7252967 - UNDERCARRIAGE

8 7161099

  • 7161099 - BOLT

9 18EM1224

  • 18EM1224 - WASHER HARDENED PLN
  • if equipped

10 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

11 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

12 29CM1080

  • 29CM1080 - SCREW

13 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL

14 7334195

  • 7334195 - NUT HEX
  • Was 51DM12

15 55CM1230

  • 55CM1230 - SCREW HEX W/T 10.9

16 6596396

  • 6596396 - PLATE
  • guide - steel track

17 26GM10025

  • 26GM10025 - SCREW HEX THRDRLG

18 7011925

  • 7011925 - BOLT

19 7162236

  • 7162236 - SCREW
