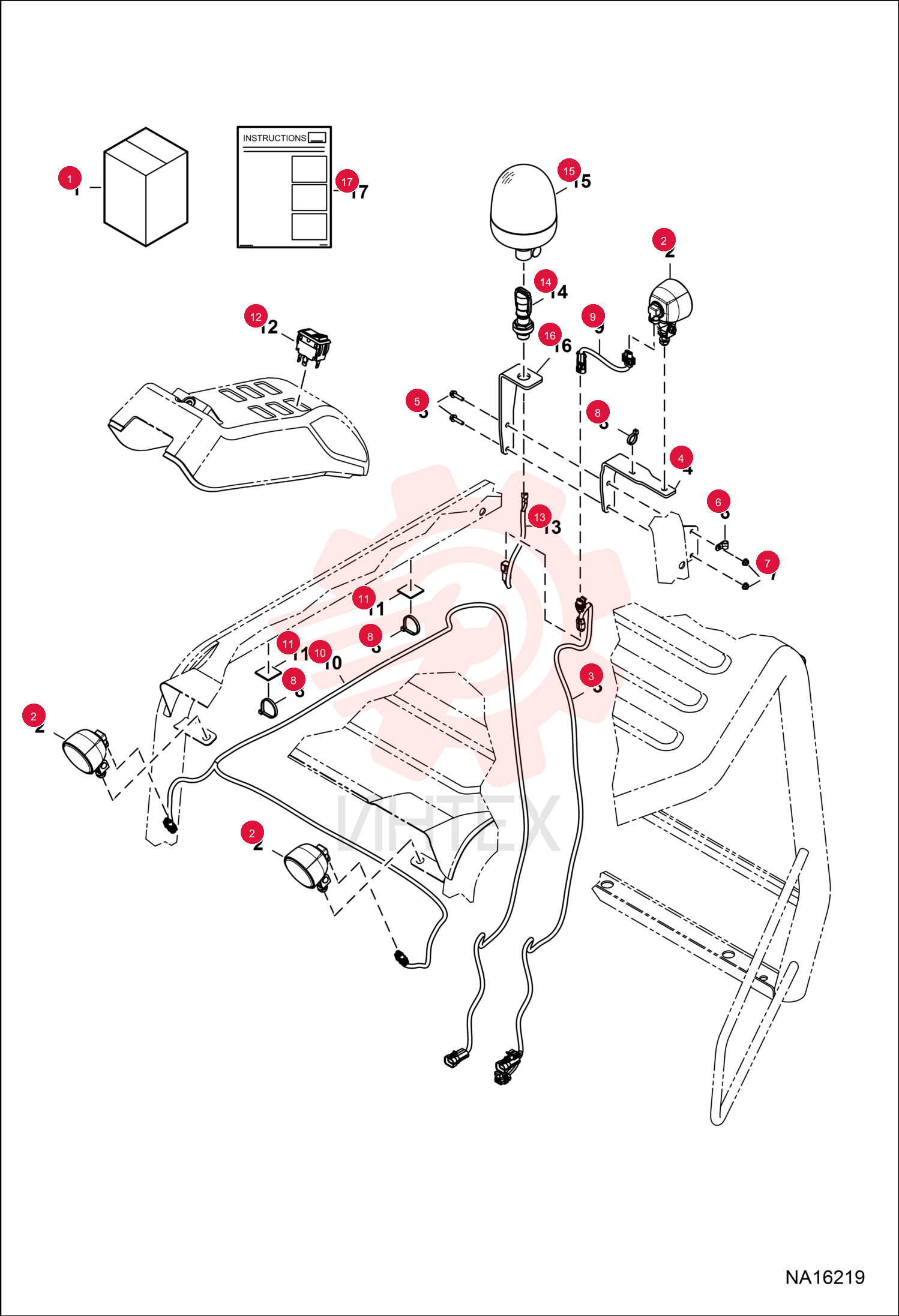

KIT CANOPY BEACON 7351339

KIT CANOPY BEACON 7351339

KIT CANOPY BEACON 7351339

1 7351339

  • 7351339 - KIT CANOPY BEACON
  • Ref. 12-17

2 7351337

  • 7351337 - KIT CANOPY LIGHT LED REAR
  • Ref. 2
  • 4
  • 8-9
  • & 17

3 7351336

  • 7351336 - KIT CANOPY LIGHT REAR
  • Ref. 2
  • 4
  • 8-9
  • & 17

4 7351333

  • 7351333 - KIT CANOPY LIGHT LED FRONT
  • Ref. 2
  • 8
  • 10-11
  • & 17

5 7351332

  • 7351332 - KIT CANOPY LIGHT FRONT
  • Ref. 2
  • 8
  • 10-11
  • & 17

6 7351329

  • 7351329 - KIT CANOPY LIGHT REAR READY
  • Ref. 3
  • 5-7 & 17

7 7335876

  • 7335876 - LIGHT LED

8 7222118

  • 7222118 - LIGHT
  • WORK

9 7328728

  • 7328728 - HARNESS REAR CANOPY

10 7343435

  • 7343435 - HOLDER LIGHT

11 29CM625

  • 29CM625 - SCREW FLGD HEX CAP

12 30H18

  • 30H18 - CLAMP

13 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

14 6682345

  • 6682345 - STRAP
  • TIE 8

15 7258225

  • 7258225 - HARNESS
  • LIGHT REAR

16 7328727

  • 7328727 - HARNESS WORK LIGHT CANOPY

17 6693924

  • 6693924 - MOUNT

18 6665317

  • 6665317 - SWITCH

19 7328810

  • 7328810 - HARNESS BEACON

20 7328906

  • 7328906 - HOLDER BEACON

21 7336474

  • 7336474 - LIGHT BEACON

22 7344534

  • 7344534 - HOLDER BEACON

23 7351330

  • 7351330 - INSTRUCTIONS INSTALL
