Bobcat
/
E34
/

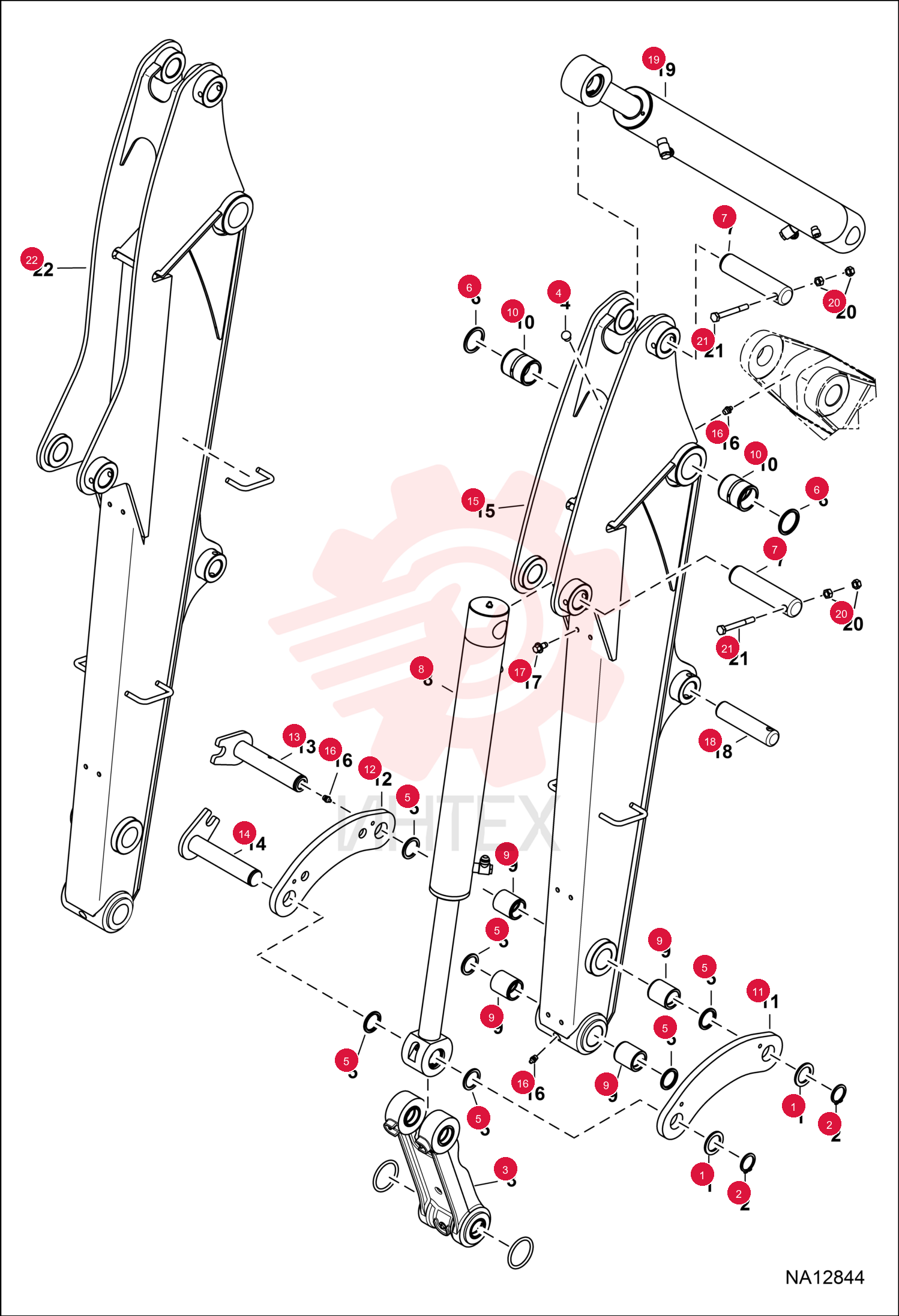

WASHER, 5 6534111 (1)

WASHER, 5 6534111 (1)

WASHER, 5 6534111 (1)

1 6534111

  • 6534111 - WASHER
  • 5

2 6534154

  • 6534154 - RING
  • RETAINER

3 6597572

  • 6597572 - BUMPER

4 6652915

  • 6652915 - SEAL
  • OIL

5 6669287

  • 6669287 - SEAL

6 7143009

  • 7143009 - PIN
  • PIVOT BOOM

7 7167301

  • 7167301 - BUSHING
  • WEAR

8 7172745

  • 7172745 - BUSHING
  • WEAR
  • Use W/pin W/ 12 mm dia cross bolt retaining hole

9 7176031

  • 7176031 - LINK

10 7176033

  • 7176033 - LINK

11 7176090

  • 7176090 - PIN
  • W/A

12 7176092

  • 7176092 - PIN
  • W/A

13 7325243

  • 7325243 - ARM W/A
  • standard arm - Also Order Ref. 4
  • 7 (7143562 o-ring)
  • 12
  • 17
  • & 22

14 10H25

  • 10H25 - FTG GREASE STRAIGHT

15 26GM10020

  • 26GM10020 - SCREW HEX THRDRLG

16 7143037

  • 7143037 - PIN
  • PIVOT

17 4DM10

  • 4DM10 - NUT HEX

18 7CM1090

  • 7CM1090 - BOLT
  • HEX SOCKET

19 7325244

  • 7325244 - ARM W/A LONG
  • long arm - Also Order Ref. 4
  • 7 (7143562 o-ring)
  • 12 & 17
