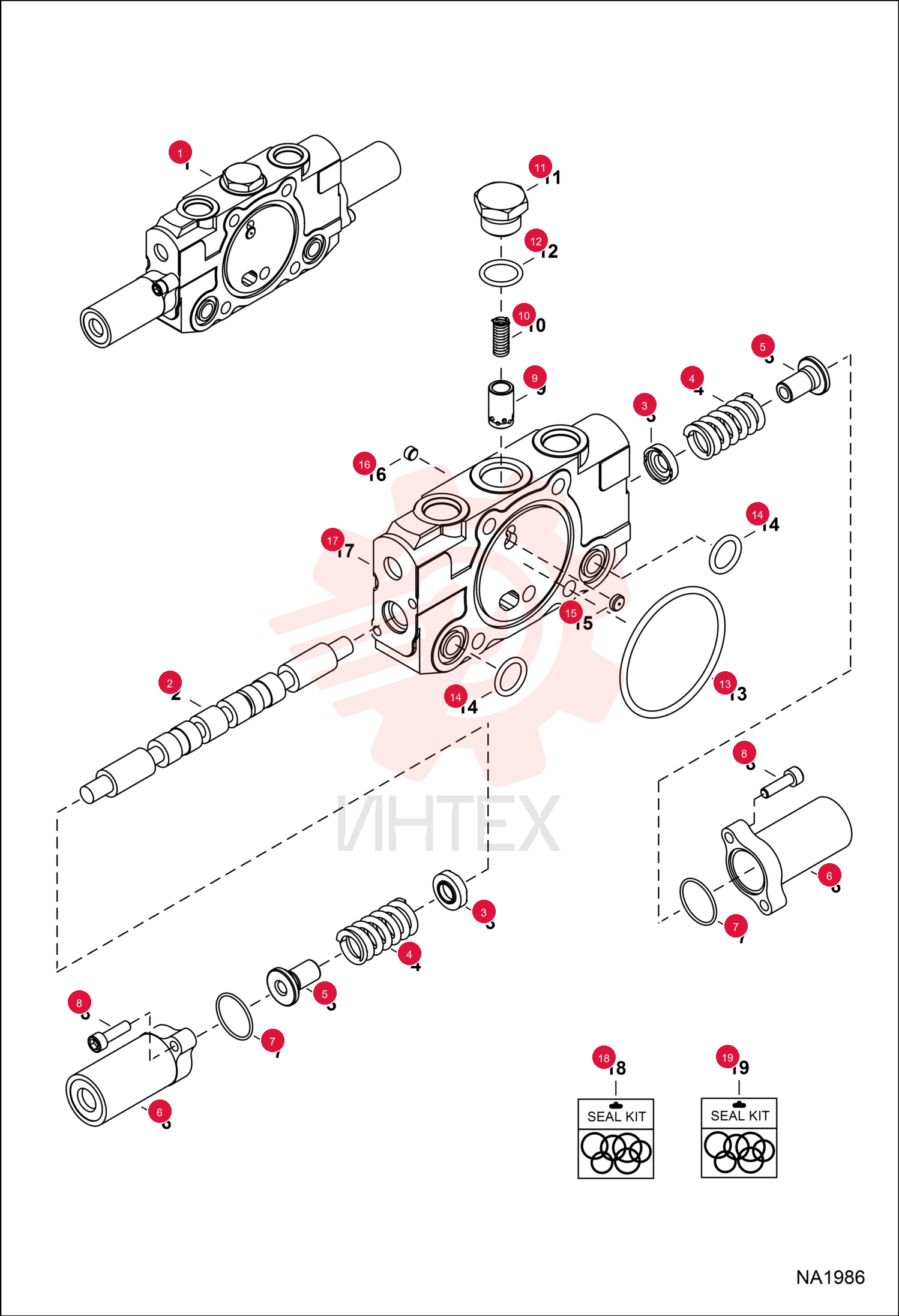

SECTION, VALVE 7012690 (2)

SECTION, VALVE 7012690 (2)

SECTION, VALVE 7012690 (2)

1 7012690

  • 7012690 - SECTION
  • VALVE
  • RH travel - Ref. 2-17

2 7012713

  • 7012713 - SEAT
  • SPRING

3 7012714

  • 7012714 - SPRING
  • VALVE

4 7012715

  • 7012715 - SEAT
  • SPRING

5 7012716

  • 7012716 - CAP
  • END

6 7012717

  • 7012717 - O-RING

7 7012718

  • 7012718 - BOLT

8 7012719

  • 7012719 - SPRING
  • VALVE

9 7012720

  • 7012720 - PLUG

10 7012721

  • 7012721 - O-RING

11 7012708

  • 7012708 - O-RING

12 7012710

  • 7012710 - O-RING

13 7012730

  • 7012730 - PLUG

14 7012777

  • 7012777 - KIT
  • SEAL
  • Ref. 13 & 14

15 7020609

  • 7020609 - KIT
  • SEAL
  • Ref. 7 & 12 - this is a standard seal kit some seals may not be used - Was 7012776
