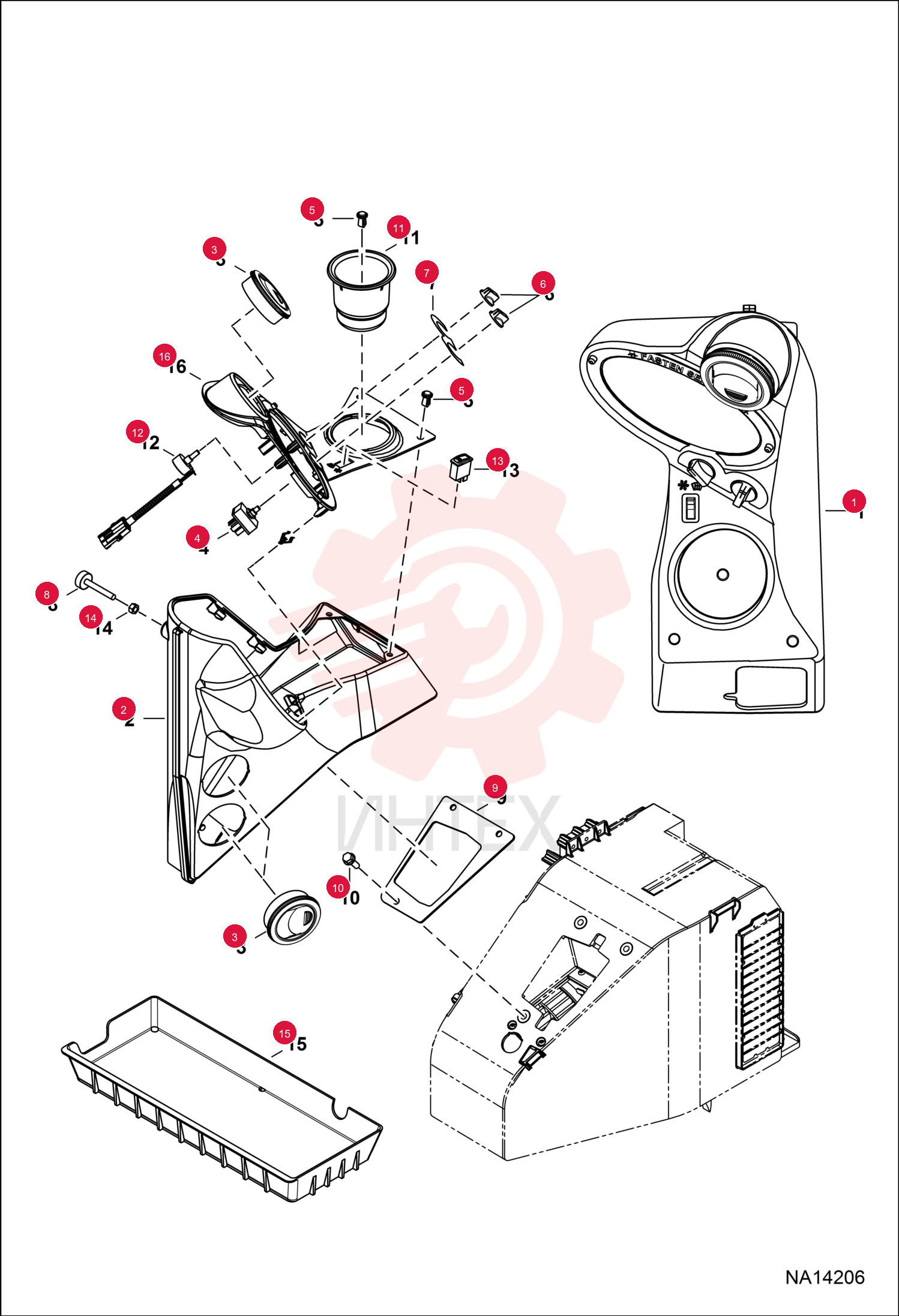

CONSOLE, CANOPY 7210712

CONSOLE, CANOPY 7210712

CONSOLE, CANOPY 7210712

1 7210712

  • 7210712 - CONSOLE
  • CANOPY

2 7210713

  • 7210713 - CONSOLE
  • CAB

3 7218230

  • 7218230 - LOUVER
  • ROUND
  • Use W/cab only

4 7232486

  • 7232486 - SWITCH
  • FAN
  • Use W/cab only

5 7160383

  • 7160383 - RIVET
  • BIRD CAGE

6 6675177

  • 6675177 - KNOB
  • Use W/cab only

7 7306379

  • 7306379 - BUMPER RUBBER

8 7226030

  • 7226030 - PLATE

9 29CM825

  • 29CM825 - SCREW HEX HD W/F 8.8

10 7016425

  • 7016425 - HOLDER
  • CUP

11 7168604

  • 7168604 - RESISTOR
  • Use W/cab only

12 7169112

  • 7169112 - SWITCH
  • ROCKER A/C

13 61D5

  • 61D5 - NUT HEX FINISHED GR5

14 7279617

  • 7279617 - MAT
  • FLOOR
