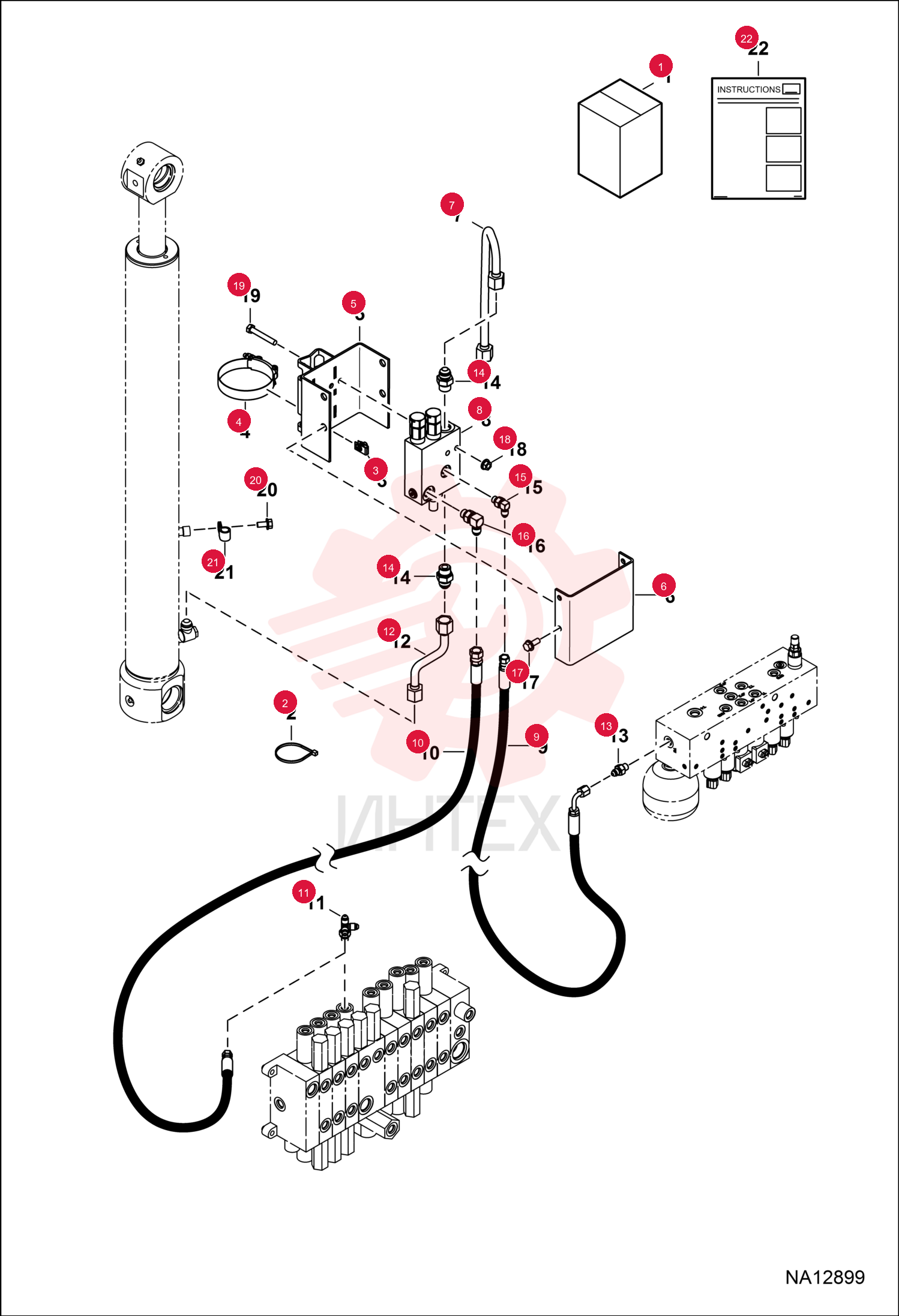

KIT LOAD HOLD BOOM 7317378

KIT LOAD HOLD BOOM 7317378

KIT LOAD HOLD BOOM 7317378

1 7317378

  • 7317378 - KIT LOAD HOLD BOOM
  • Ref. 2-19 & 22

2 6610510

  • 6610510 - STRAP
  • TIE 10

3 6676169

  • 6676169 - NUT

4 7009353

  • 7009353 - CLAMP
  • T-BOLT

5 7186699

  • 7186699 - BRACKET
  • VALVE

6 7186785

  • 7186785 - COVER
  • VALVE

7 7187293

  • 7187293 - TUBELINE
  • HYD

8 7189078

  • 7189078 - VALVE
  • LOCK LOAD

9 7189161

  • 7189161 - HOSE
  • HYD

10 7189162

  • 7189162 - HOSE
  • HYD

11 7229540

  • 7229540 - FITTING
  • CROSS

12 7313209

  • 7313209 - TUBELINE HYDRAULIC

13 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

14 15KB0808

  • 15KB0808 - FTG HYD S CONNECTOR

15 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90

16 17KB0606

  • 17KB0606 - FTG HYD 90 ELBOW

17 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

18 51DM8

  • 51DM8 - NUT HX THDLK PREAPPL

19 53CM855

  • 53CM855 - SCREW

20 29CM816

  • 29CM816 - SCREW FLGD HEX CAP
  • not in kit

21 30H30

  • 30H30 - CLIP
  • not in kit

22 6990075ENUS

  • 6990075ENUS - INSTRUCTIONS
  • Was 6990075
