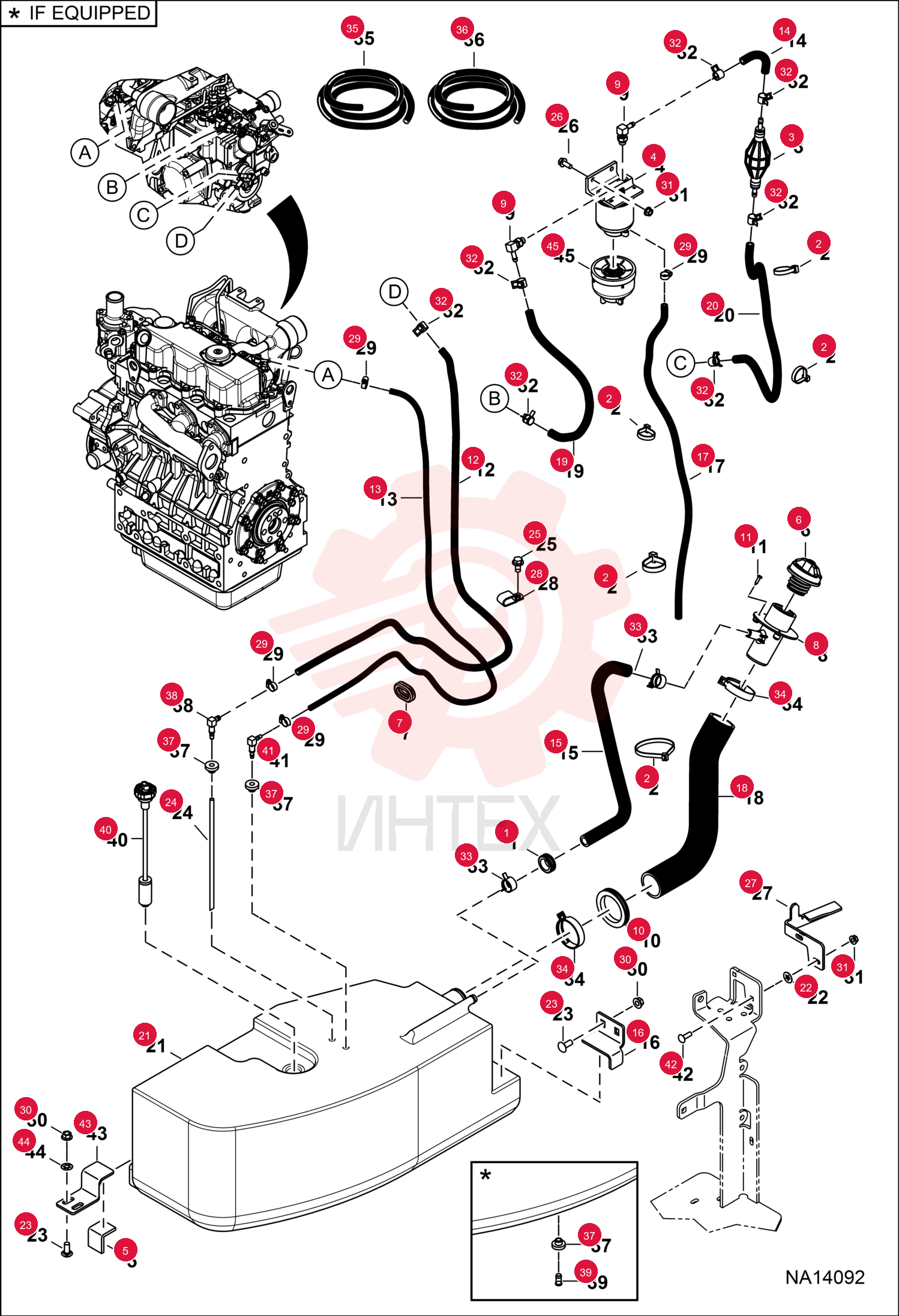

GROMMET 6515603 (2)

GROMMET 6515603 (2)

GROMMET 6515603 (2)

1 6515603

  • 6515603 - GROMMET

2 6624289

  • 6624289 - STRAP
  • TIE

3 6667170

  • 6667170 - PUMP
  • PRIMER HAND

4 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12

5 6667353

  • 6667353 - FILTER
  • FUEL ASSY

6 6578278

  • 6578278 - BUMP.PAD

7 7023550

  • 7023550 - CAP
  • DIESEL LOCKING
  • keyed

8 7113340

  • 7113340 - CAP
  • DIESEL 3 PSI
  • keyless

9 7320798

  • 7320798 - GROMMET RUBBER
  • Was 6681886

10 6701449

  • 6701449 - FLR.TUBE

11 79K5

  • 79K5 - O RING 10

12 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE

13 6807283

  • 6807283 - GROMMET

14 7106279

  • 7106279 - SCREW

15 7309304

  • 7309304 - HOSE FUEL

16 7163720

  • 7163720 - BRACKET
  • TANK FUEL

17 7253841

  • 7253841 - HOSE FUEL FORMED

18 7345450

  • 7345450 - TANK FUEL
  • Was 7320369

19 6675859

  • 6675859 - RETAINER

20 28CM1025

  • 28CM1025 - BOLT CARRIAGE 8.8

21 6683892

  • 6683892 - TUBE
  • FUEL

22 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

23 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

24 7328381

  • 7328381 - BRACKET RH
  • Was 7271302

25 31H31

  • 31H31 - CLIP

26 42HS04

  • 42HS04 - CLAMP HOSE TYPE M

27 43DM10

  • 43DM10 - NUT FLANGED HEX

28 43DM8

  • 43DM8 - NUT FLANGED HEX

29 5HM14

  • 5HM14 - HOSE CLMP CONST TENS

30 5HM23

  • 5HM23 - HOSE CLMP CONST TENS

31 5HM58

  • 5HM58 - CLAMP

32 6578169

  • 6578169 - HOSE BULK
  • sold per foot - 0.19" ID

33 6577822

  • 6577822 - HOSE BULK
  • sold per foot

34 7273691

  • 7273691 - GROMMET
  • if equipped

35 6666302

  • 6666302 - ELBOW BARBED

36 6599645

  • 6599645 - PLUG
  • STEEL
  • if equipped

37 7286464

  • 7286464 - SENSOR
  • FUEL

38 6598908

  • 6598908 - ELBOW BARBED

39 28CM825

  • 28CM825 - BOLT CARRIAGE 8.8

40 7163721

  • 7163721 - BRACKET
  • TANK FUEL

41 6674264

  • 6674264 - RETAINER BOLT

42 7177212

  • 7177212 - GASKET

43 7167163

  • 7167163 - BOWL
  • FUEL
  • optional
