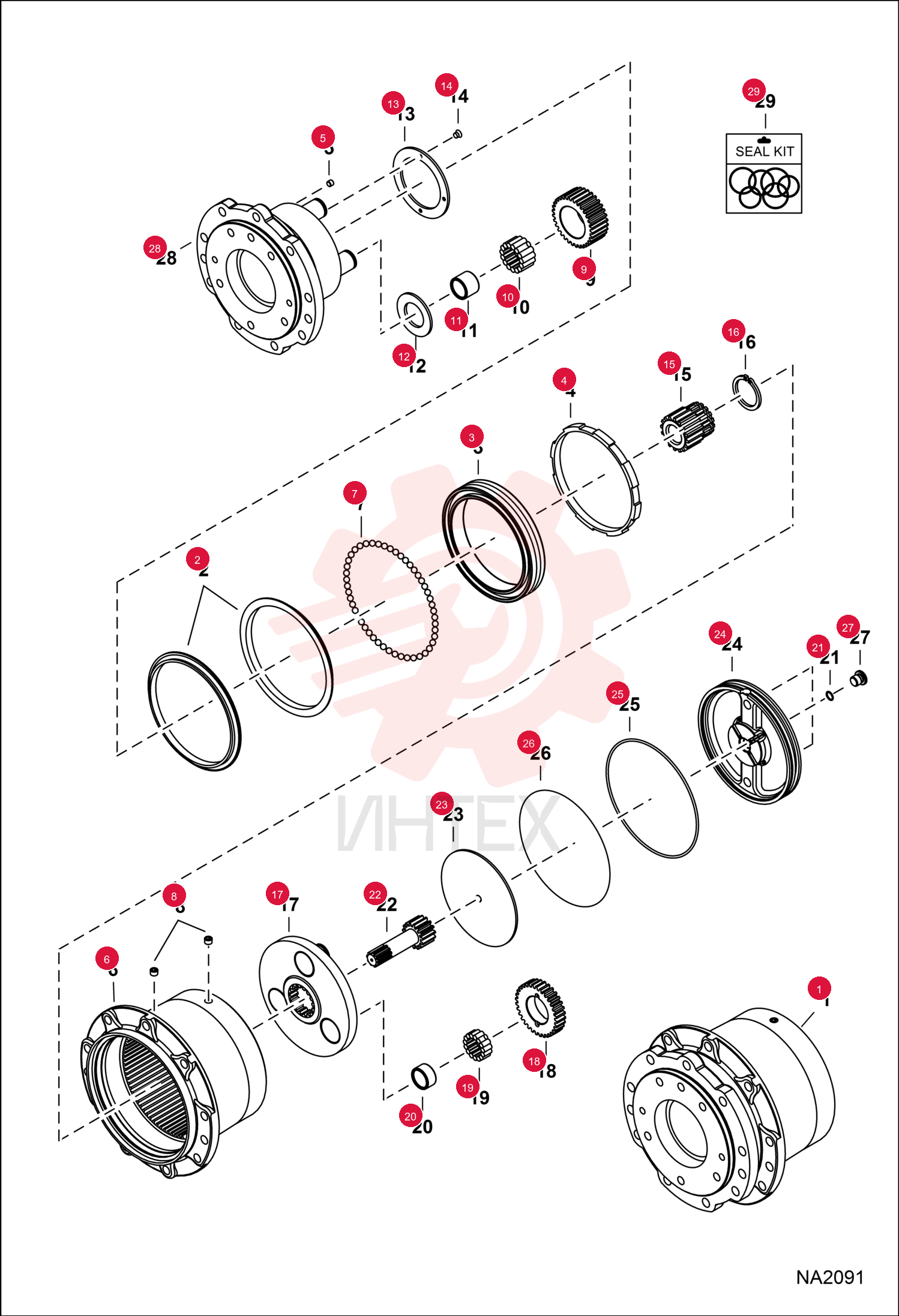

GEAR, BOX 7009157
1 7009157
- 7009157 - GEAR
- BOX
- Includes Ref. 2-28
2 7009158
- 7009158 - SEAL
- FLOATING
3 7009159
- 7009159 - BEARING
- ANGULAR
- W/Ref. 2&7
4 7009160
- 7009160 - NUT
- RING
5 7009161
- 7009161 - PLUG
6 7009162
- 7009162 - BALL
- STEEL
7 7009163
- 7009163 - PLUG
8 7009164
- 7009164 - GEAR
- PLANETARY
9 7009165
- 7009165 - BEARING
- NEEDLE
10 7009166
- 7009166 - RACE
- INNER
11 7009167
- 7009167 - WASHER
- THRUST
12 7009209
- 7009209 - PLATE
- THRUST
13 7009210
- 7009210 - SCREW
14 7009168
- 7009168 - GEAR
15 6655364
- 6655364 - SNAP RING
16 7009169
- 7009169 - HOLDER
17 7009170
- 7009170 - GEAR
- PLANETARY
18 7009171
- 7009171 - BEARING
- NEEDLE
19 7009172
- 7009172 - RACE
- INNER
20 7009180
- 7009180 - O-RING
21 7009173
- 7009173 - GEAR
- DRIVE
22 7009176
- 7009176 - PLATE
- THRUST
- 2.8mm
23 7009175
- 7009175 - PLATE
- THRUST
- 2.3mm
24 7009174
- 7009174 - PLATE
- THRUST
- 1.8mm
25 7009177
- 7009177 - COVER
26 6655376
- 6655376 - WIRE
- lock
27 7009179
- 7009179 - PLUG
28 7009213
- 7009213 - SEAL KIT
- - Ref. 8
- 9
- 14
- 30
- 31
- 37
- 48 & 52 - Also includes Ref. 2
- 21 & 25 on this page
