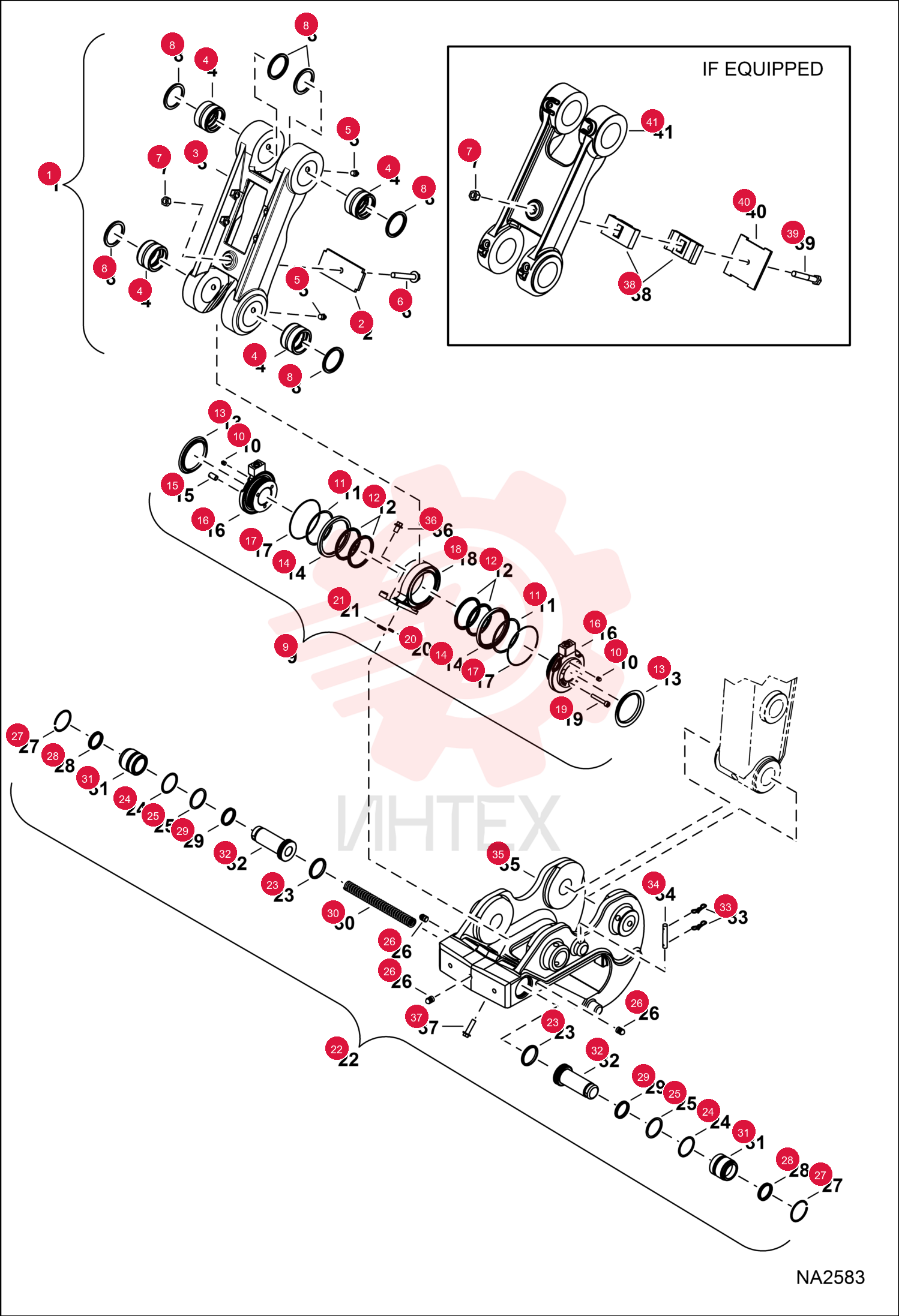

LINK ASSEMBLY 7236786 (2)

LINK ASSEMBLY 7236786 (2)

LINK ASSEMBLY 7236786 (2)

1 7236786

  • 7236786 - LINK ASSEMBLY
  • Ref. 2-8 - Was 7165793

2 7236889

  • 7236889 - COVER
  • PLATE

3 7173292

  • 7173292 - BUSHING
  • WEAR

4 10H25

  • 10H25 - FTG GREASE STRAIGHT

5 59CM1070

  • 59CM1070 - BOLT
  • FLANGE

6 4DM10

  • 4DM10 - NUT HEX

7 6669287

  • 6669287 - SEAL

8 7172955

  • 7172955 - SWIVEL
  • HYD ASSY
  • Ref. 10-21

9 6686678

  • 6686678 - PLUG

10 6686681

  • 6686681 - RING

11 6688745

  • 6688745 - SEAL

12 6688850

  • 6688850 - SEAL

13 6689565

  • 6689565 - SEAL

14 6816599

  • 6816599 - NUT

15 7120821

  • 7120821 - SWIVEL

16 7121281

  • 7121281 - O-RING

17 3GM645

  • 3GM645 - SCREW

18 58K10

  • 58K10 - O RING 10

19 58K015

  • 58K015 - O-RING 10

20 6680402

  • 6680402 - SEAL

21 6680998

  • 6680998 - RING

22 6683233

  • 6683233 - O-RING

23 6686679

  • 6686679 - PLUG

24 6686682

  • 6686682 - RING

25 6688634

  • 6688634 - SEAL PIN

26 6690161

  • 6690161 - SEAL PIN

27 6815592

  • 6815592 - SPRING

28 7114212

  • 7114212 - HEAD

29 7126140

  • 7126140 - PISTON
  • PIN
  • W/retainer pin hole

30 7221582

  • 7221582 - PISTON
  • PIN
  • W/O retainer pin hole

31 7130431

  • 7130431 - CLIP
  • if equipped

32 7132119

  • 7132119 - PIN
  • if equipped

33 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

34 29CM1030

  • 29CM1030 - SCREW FLGD HEX CAP

35 7115813

  • 7115813 - BLOCK RUBBER
  • if equipped

36 59CM1060

  • 59CM1060 - SCREW
  • if equipped

37 7226712

  • 7226712 - COVER
  • HOSE
  • if equipped
