Главная
/
Бренды
/
Bobcat
/
E42
/

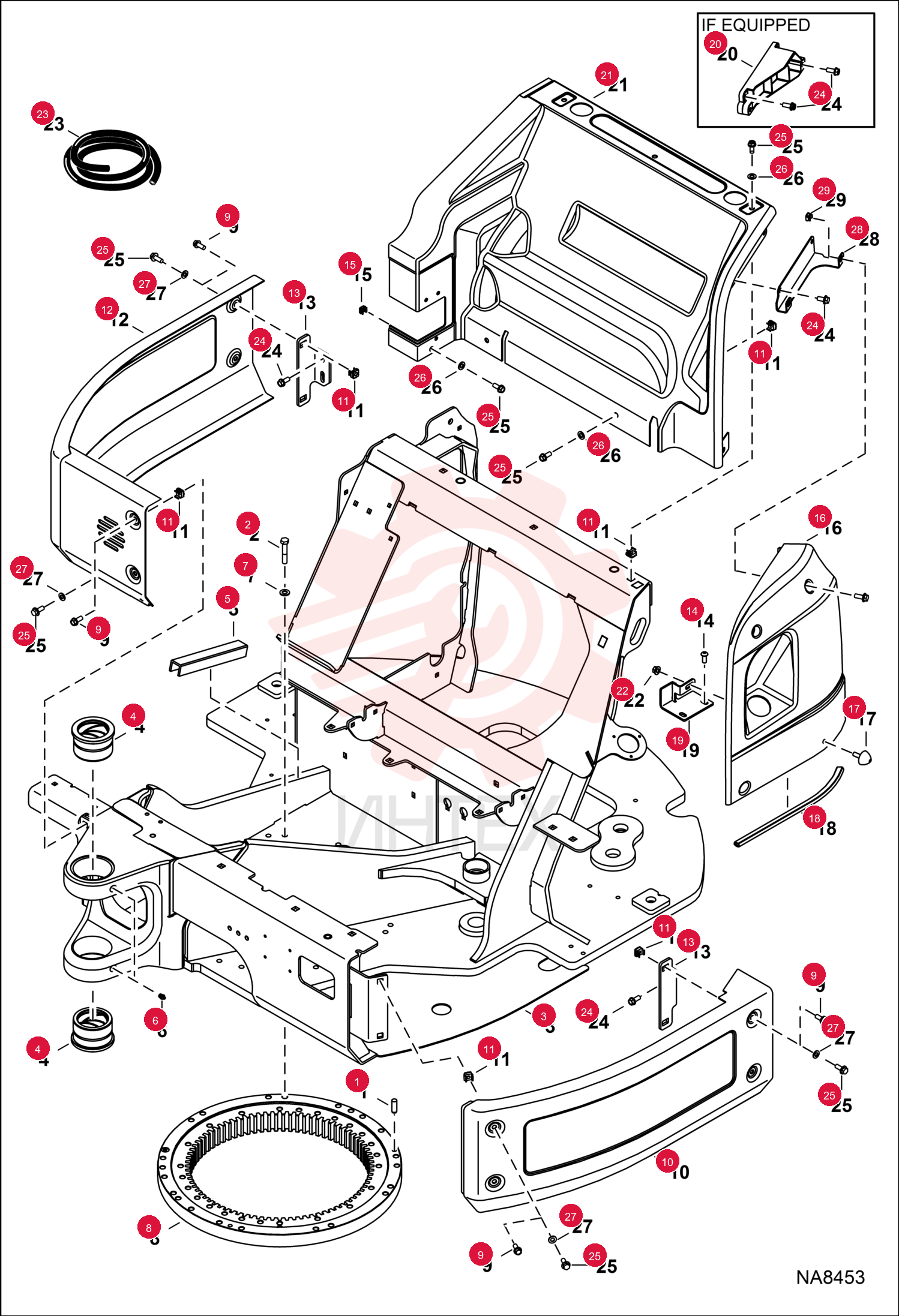

PIN, PARALLEL 7171260 (2)

PIN, PARALLEL 7171260 (2)

PIN, PARALLEL 7171260 (2)

1 7171260

  • 7171260 - PIN
  • PARALLEL

2 7171918

  • 7171918 - SCREW

3 7323148

  • 7323148 - UPPERSTRUCTURE
  • Was 7175146 - Was 7231073

4 7198707

  • 7198707 - BUSHING
  • PIVOT

5 7185431

  • 7185431 - GROMMET

6 10H25

  • 10H25 - FTG GREASE STRAIGHT

7 18EM1224

  • 18EM1224 - WASHER HARDENED PLN

8 6692961

  • 6692961 - RING
  • SLEW

9 7009798

  • 7009798 - SCREW
  • black - W/washer

10 7148372

  • 7148372 - CHANNEL
  • LH

11 7155413

  • 7155413 - NUT

12 7168598

  • 7168598 - COVER
  • RH

13 7177373

  • 7177373 - BRACKET
  • COVER SIDE

14 6817769

  • 6817769 - SCREW

15 7155411

  • 7155411 - NUT

16 7175138

  • 7175138 - COVER
  • LH

17 7243425

  • 7243425 - BUMPER
  • RUBBER
  • BUMPER
  • RUBBER - Was 7178703

18 7220347

  • 7220347 - COVER
  • LH
  • Was 7182491

19 7187133

  • 7187133 - PANEL
  • ENGINE

20 43DM10

  • 43DM10 - NUT FLANGED HEX

21 7170493

  • 7170493 - SEAL
  • BULK
  • BULB BULK/FT
  • sold per foot

22 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP
  • Was 7009798

23 29CM1025

  • 29CM1025 - SCREW FLGD HEX CAP
  • Was 1CM1025

24 15EM100

  • 15EM100 - WASHER
  • Used W/bolt W/O flange - Was 1EM100

25 25E17

  • 25E17 - WASHER FLAT PLAIN

26 7235336

  • 7235336 - BRACKET
  • COVER SIDE

27 7024737

  • 7024737 - NUT
